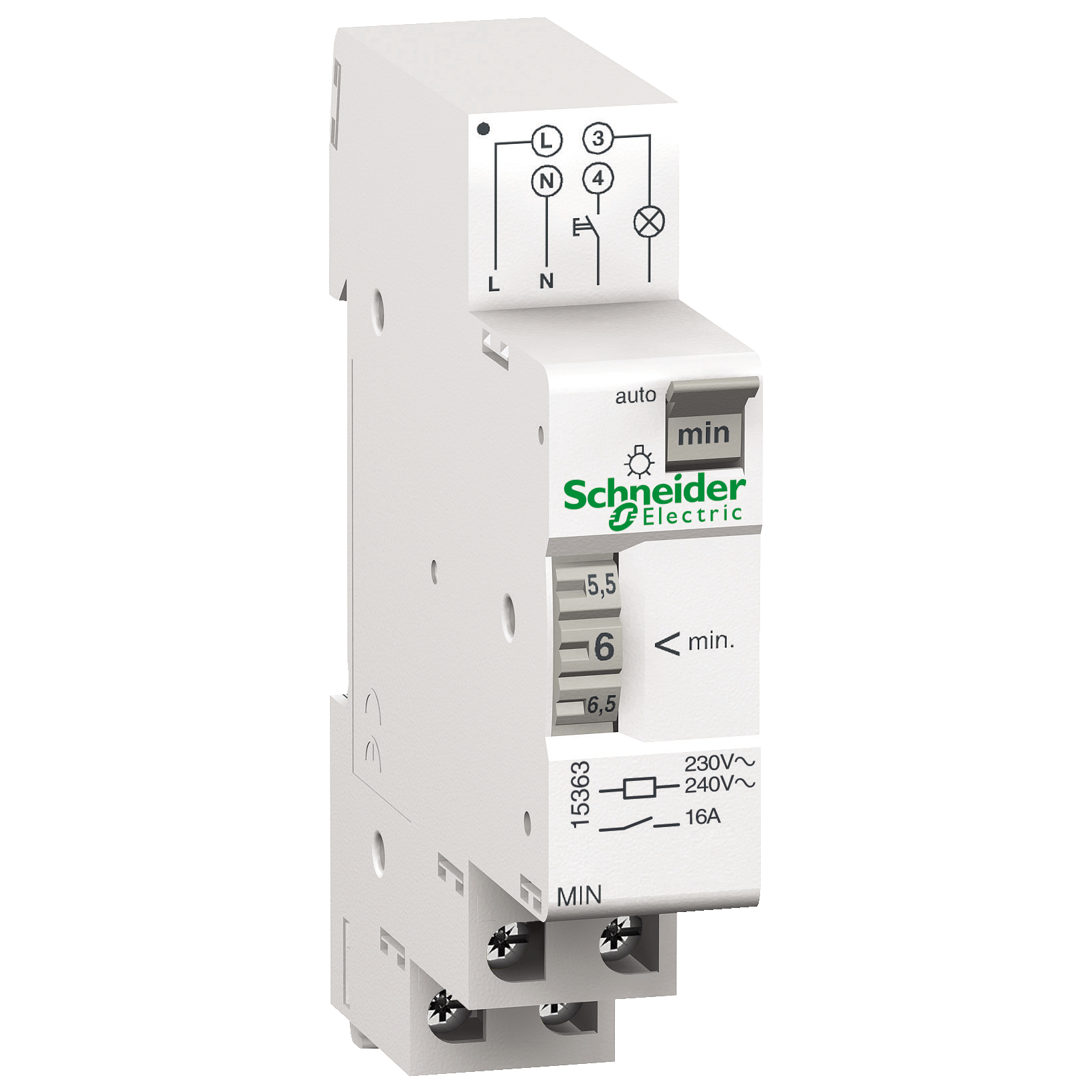

Schneider Electric Elektromechaniczny łącznik minutowy MIN
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 15363 |
| GTIN(EAN) | 3303430153634 |
| Price unit | piece |
| Catalog price | 562,11 zł (457,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 82 g |
| ETIM class: | Staircase lighting timer |
| Type of control voltage 1: | AC |
| Frequency control voltage 1: | 50 - 50 Hz |
| Built-in depth: | 68 mm |
| Pre-warning of switching-off: | None |
| Wiring system: | 3 and 4 wire configuration |
| Repetitive: | None |
| Push button glow-lamp current: | 50 mA |
| Rated switch current: | 16 A |
| Max. load fluorescent lamp: | 2300 VA |
| Max. load fluorescent lamp (Duo circuit): | 2300 VA |
| Voltage type (supply voltage): | AC |
| Width in number of modular spacings: | 1 |
| Control voltage 1: | 230 - 230 V |
| Max. load fluorescent lamp (parallel compensated): | 1300 VA |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Release-delay: | 1 - 7 min |
| Max. switching current (cos phi = 0.6): | 10 A |
| Mounting method: | DIN rail |
| Supply voltage: | 230 - 230 V |
| Function: | Other |
| Max. incandescent lamp load: | 2300 W |
| Current surge function selectable: | no |
