Rozdzielnice Prisma, obudowa naścienna 12 modułowej 600mm
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 08104 |
| GTIN(EAN) | 3303430081043 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 326,75 zł / szt. (265,65 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

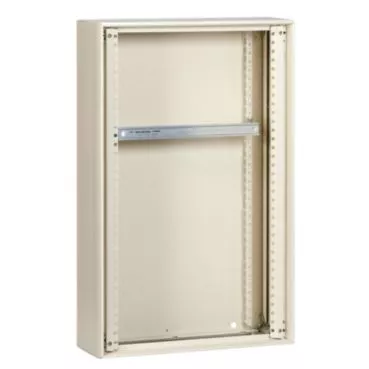

Wall-mounted enclosure for Prisma G. It applied to low voltage electrical distribution. It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment. It could be delivered as functional enclosure in kit form without to be ordered separately for front plate. It provides IP protection which includes IP43 with door, canopy and gasket, IP30 without door, IP40 with door, IP41 with door and canopy. It provides IK protection which includes IK07 without door conforming to EN/IEC 62262 and IK08 with door. It could be installed in 600 mm width wall mounted enclosure. It has matt or smooth surface finish and white (RAL 9001) colour. It is suitbale for 12 50-mm vertical modules and 24 18-mm modules per row. Sold in lots of 1 unit. It can be combined side by side and one on top of another. It is certified by seismic tests which 2.5G conforming to IEC 60068-2-57. It is compliant with IEC 62208, IEC 61439-1 and IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 10,78 kg |
| ETIM class: | Enclosure/cabinet (empty) |
| Material quality: | Other |
| Number of locks: | 0 |
| Number of doors: | 0 |
| Height: | 630 mm |
| Pole fastening: | no |
| Impact strength: | IK07 |
| With mounting plate: | no |
| With ventilation door: | no |
| RAL-number: | 9001 |
| Freestanding: | yes |
| EMC-version: | no |
| Floor standing wall model: | no |
| Width: | 600 mm |
| Suitable for outdoor set-up: | no |
| Colour: | White |
| Depth: | 205 mm |
| Material: | Steel |
| With rear door: | no |
| Mounting plate depth-adjustable: | no |
| Couplable: | yes |
| Suitable for metrical mounting: | yes |
| With glazed door: | no |
| Corner model: | no |
| Pitched roof: | no |
| Degree of protection (IP): | IP30 |
| Intermediate mounting: | no |
| Suitable for wall mounting: | yes |
| Suitable for wall built-in: | no |
| Surface finishing: | Powder coating |
