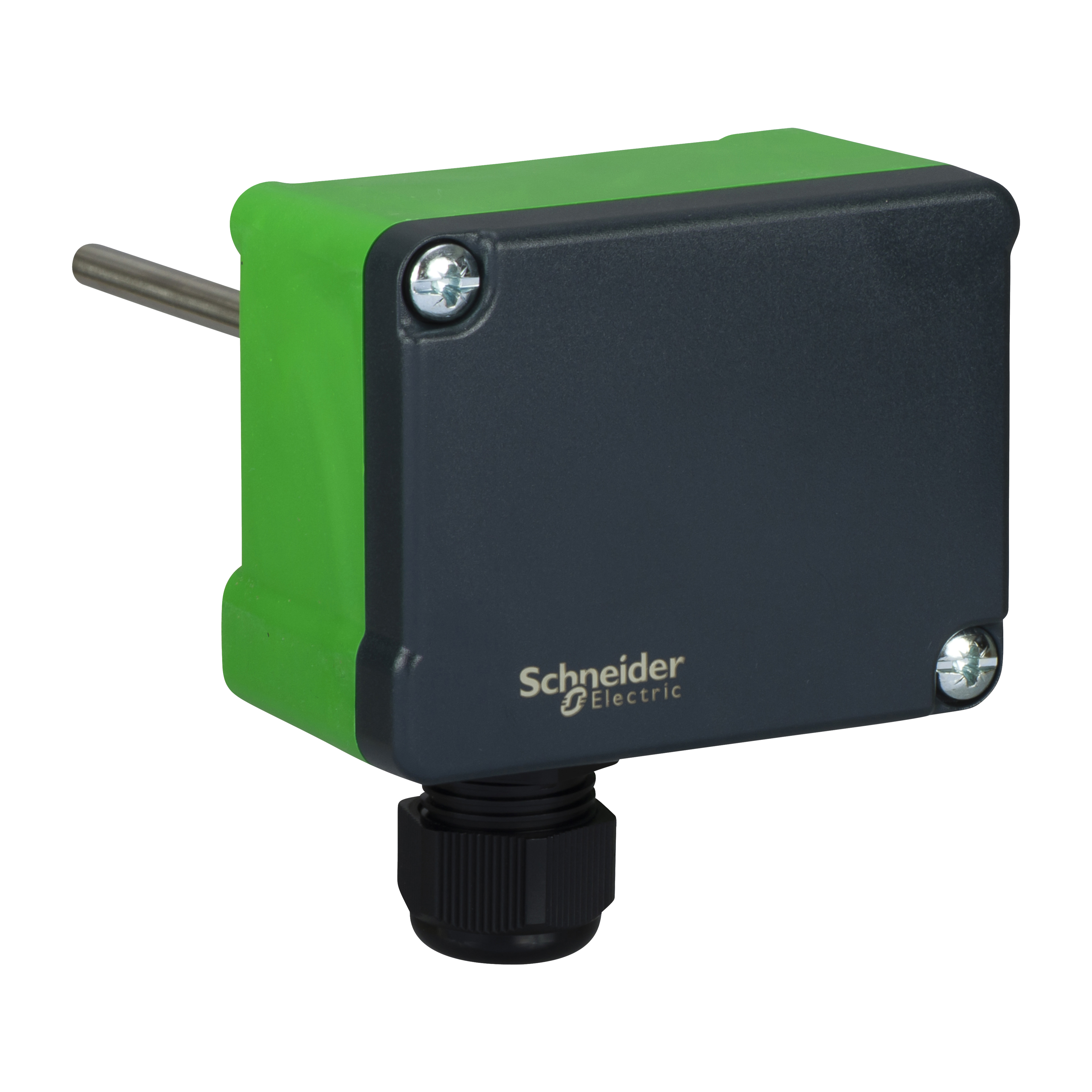

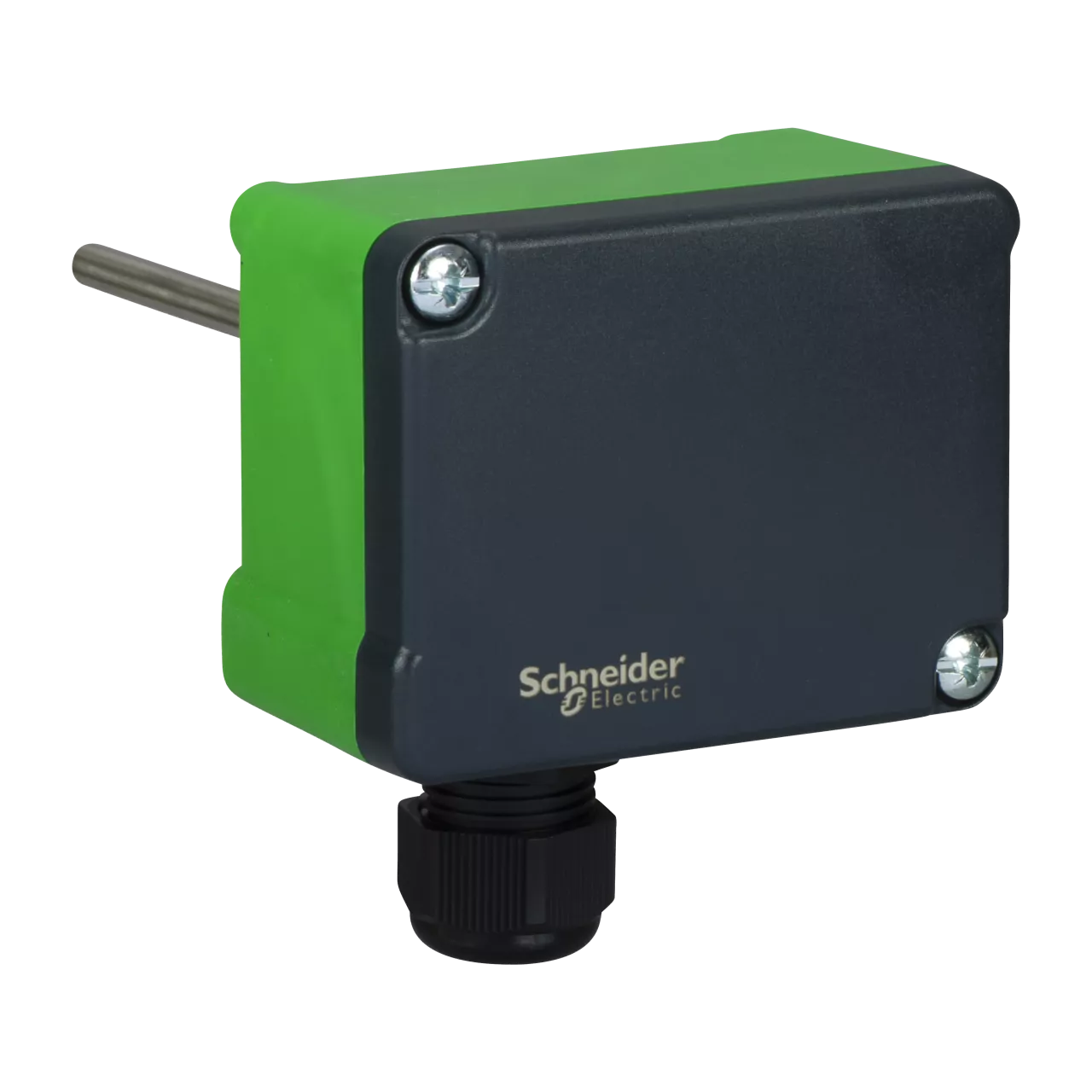

STP300, czujnik temperatury, zanurzeniowy, 0…160˚C (4-20mA), długość sondy 100 mm, montaż w osłonie
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 006920261 |
| GTIN(EAN) | 7332552011580 |
| Price unit | piece |
| Catalog price | 891,75 zł (725,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
STP300 jest elektronicznym immersyjnym przetwornikiem temperatury Przekształca zmierzoną temperaturę na sygnał prądu elektronicznego o wartości 4 ...20 mA STP300 jest przeznaczony do montażu zanurzeniowego w systemach rurowych z osobną kieszenią/studzienką.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 180 g |
| ETIM class: | Immersion temperature sensor, active |
| Article compression class: | PN 16 |
| With battery: | no |
| With display: | no |
| Explosion-proof: | no |
| Feed pressure: | 0 bar |
| Degree of protection (IP): | IP65 |
| Material immersion tube: | Stainless steel |
| Insert length: | 125 mm |
| Supply voltage: | 24 V |
| Measuring range: | 0 - 160 °C |
| Output signal: | 4 - 20 mA |
| Housing height: | 45 mm |
| Housing width: | 85 mm |
| Housing depth: | 65 mm |
