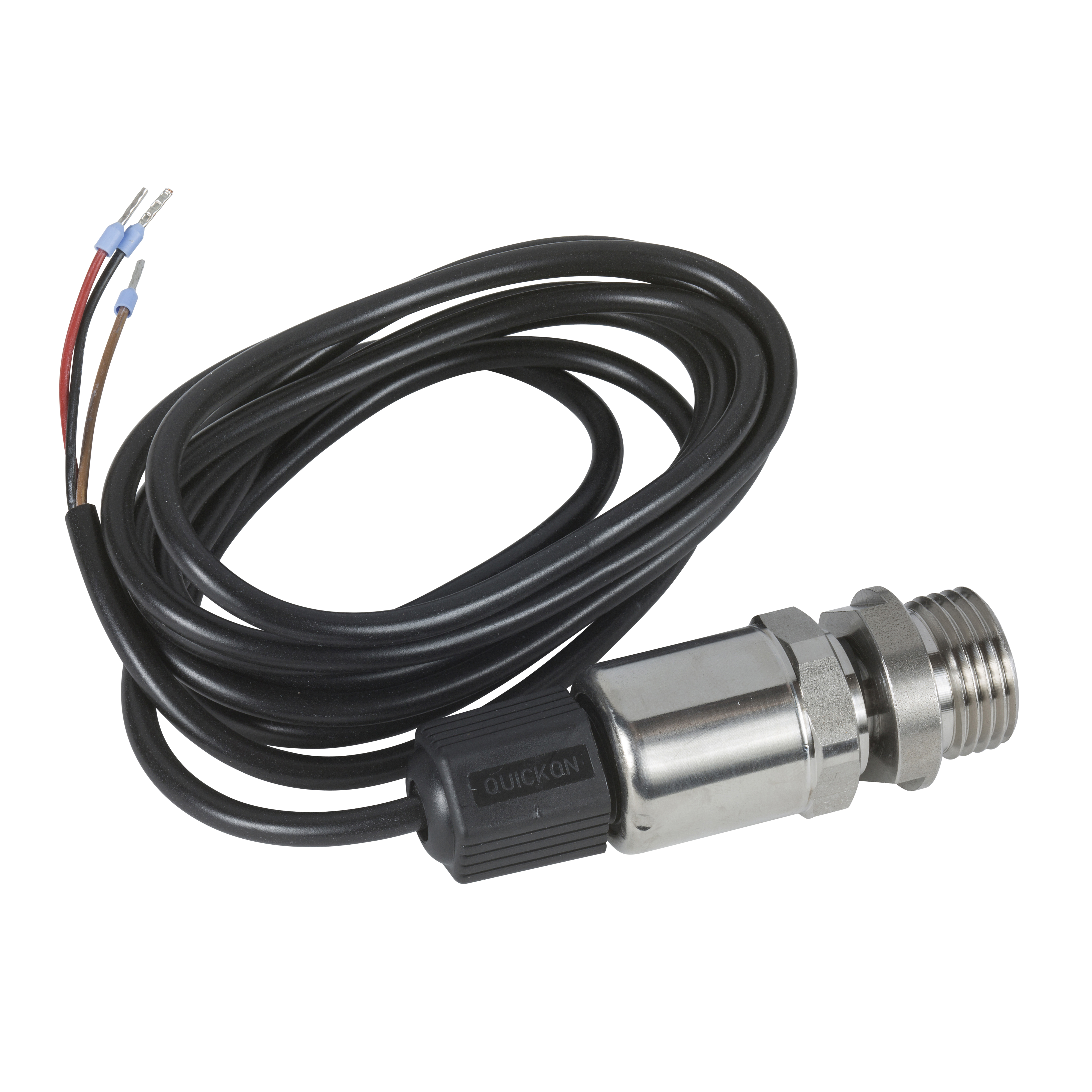

SPP110, przetwornik ciśnienia cieczy, 0…1000 kPa (0-10V)
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 004702080 |
| GTIN(EAN) | 7332552011375 |
| Price unit | piece |
| Catalog price | 1 476,00 zł (1 200,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przetworniki ciśnienia SPP110 są przeznaczone do stosowania w systemach rurowych HVAC w celu monitorowania ciśnienia. SPP110 jest elektronicznym przetwornikiem ciśnienia, który przekształca zmierzone ciśnienie na elektryczny sygnał 0 ... 10 Vdc.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 180 g |
| ETIM class: | Pressure transmitter |
| With display: | no |
| Cable length: | 2 m |
| Explosion-proof: | no |
| Thread size: | 1/2 inch |
| Readable: | no |
| Degree of protection (IP): | IP65 |
| Max. overpressure: | 2 kPa |
| Depth: | 18 mm |
| Width: | 27 mm |
| Suitable for gases: | no |
| Suitable for glycol: | yes |
| With temperature sensor: | no |
| Measuring element: | Membrane |
| Electrical connection: | Other |
| Accuracy class: | 0.5 |
| Connection: | Other |
| Height: | 95 mm |
| Suitable for air: | no |
| Suitable for water: | yes |
| Suitable for steam: | yes |
| Supply voltage: | 25 V |
| Measuring range: | 0 - 1000 Pa |
| Output signal: | 0 - 10 V |
| Suitable for oil: | yes |
| Suitable for ammonia: | no |
| Max. medium temperature (continuous): | 105 °C |
| Housing material: | Other |
| Min. medium temperature (continuous): | -40 °C |
