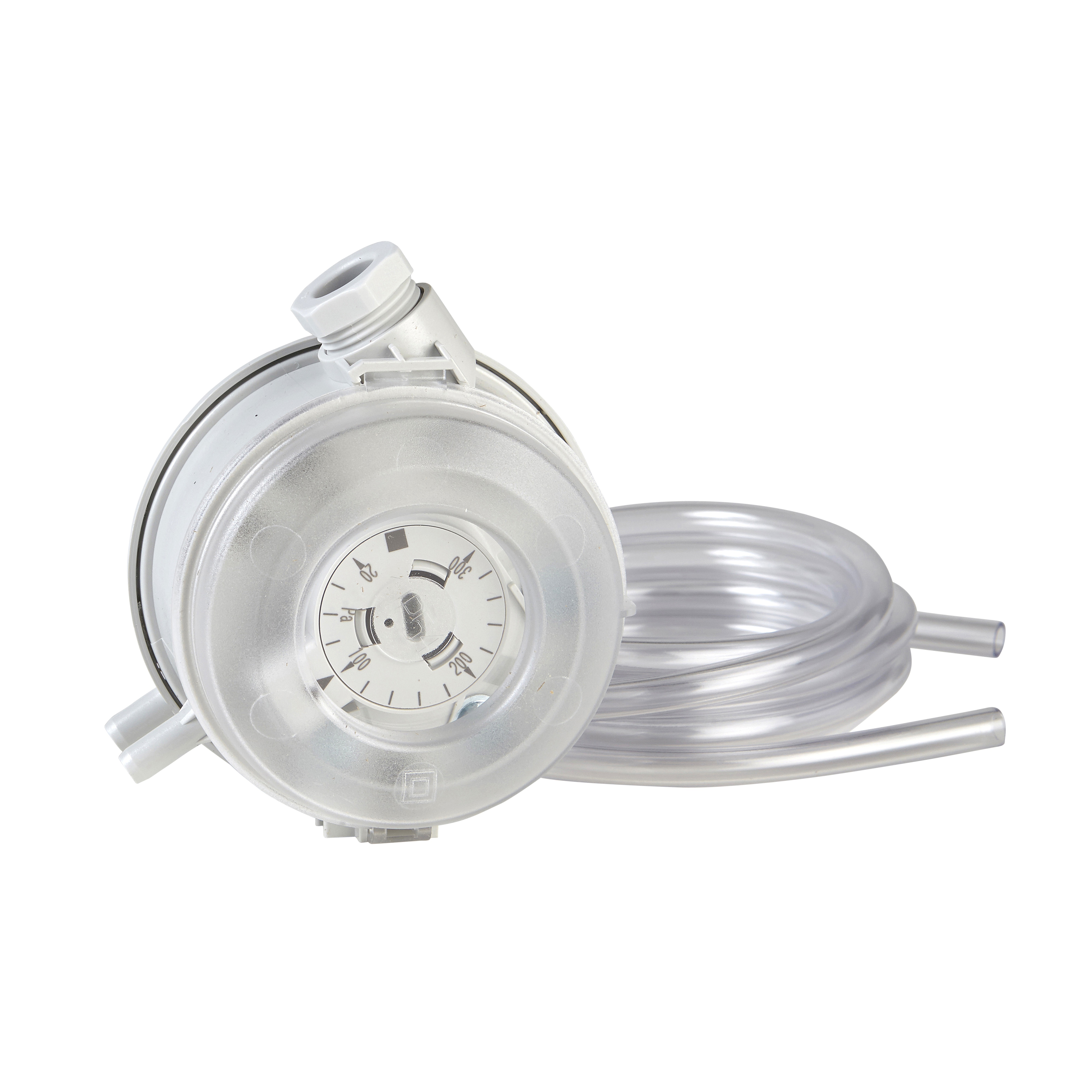

SPD910, sygnalizator różnicy ciśnień, kanałowy, 20…300 Pa, z rurką i końcówkami
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 004701060 |
| GTIN(EAN) | 7332552011221 |
| Price unit | piece |
| Catalog price | 282,90 zł (230,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
SPD910 to przełącznik ciśnienia względnego i różnicowego. Nadaje się do stosowania z powietrzem i gazami obojętnymi, do monitorowania kanałów powietrznych, filtrów i wentylatorów w systemach wentylacyjnych. Dostępne w 4 modelach, aby pokryć zakres od 20 ... 2000 Pa z wysoką dokładnością regulacji.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 200 g |
| ETIM class: | Pressure differential switch |
| With display: | yes |
| Explosion-proof: | no |
| Readable: | yes |
| Measuring range lower value in bar: | 0.0002 bar |
| Measuring range upper value in bar: | 0.003 bar |
| Measuring range lower value in Pa: | 20 Pa |
| Degree of protection (IP): | IP54 |
| Measuring range upper value in Pa: | 3000 Pa |
| Depth: | 78.5 mm |
| Width: | 52 mm |
| Differential range/switch hysteresis: | -2.5 - 2.5 Pa |
| Adjustable differential gap: | no |
| Max. contact load: | 5 A |
| Max. contact voltage: | 250 V |
| Differential range/switch hysteresis 2: | -0.00025 - 0.00025 bar |
| Max. operating pressure: | 0.003 bar |
| Height: | 91.4 mm |
| Diameter: | 80.8 mm |
| Max. medium temperature (continuous): | 85 °C |
| Sensor/feeler type: | Other |
