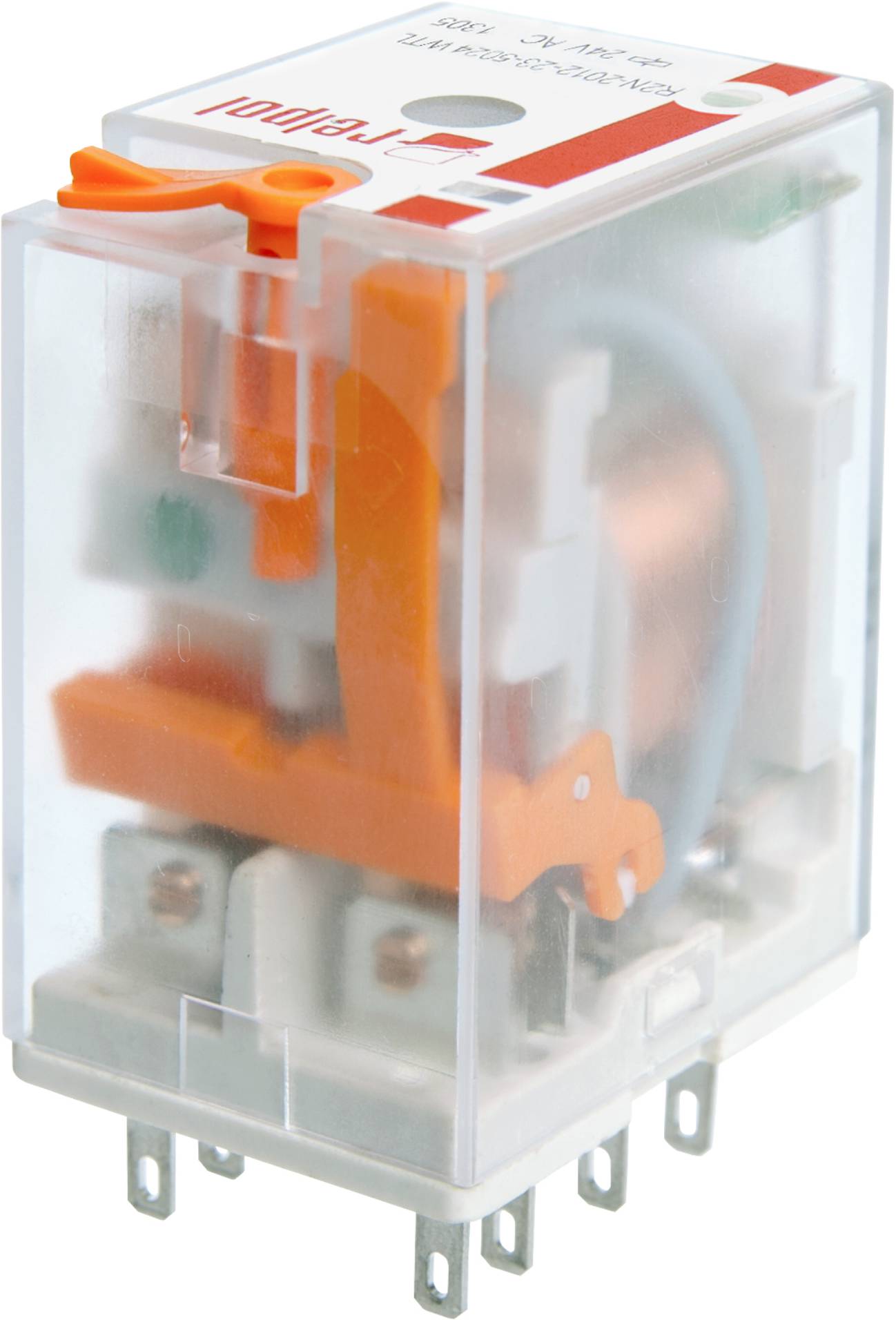

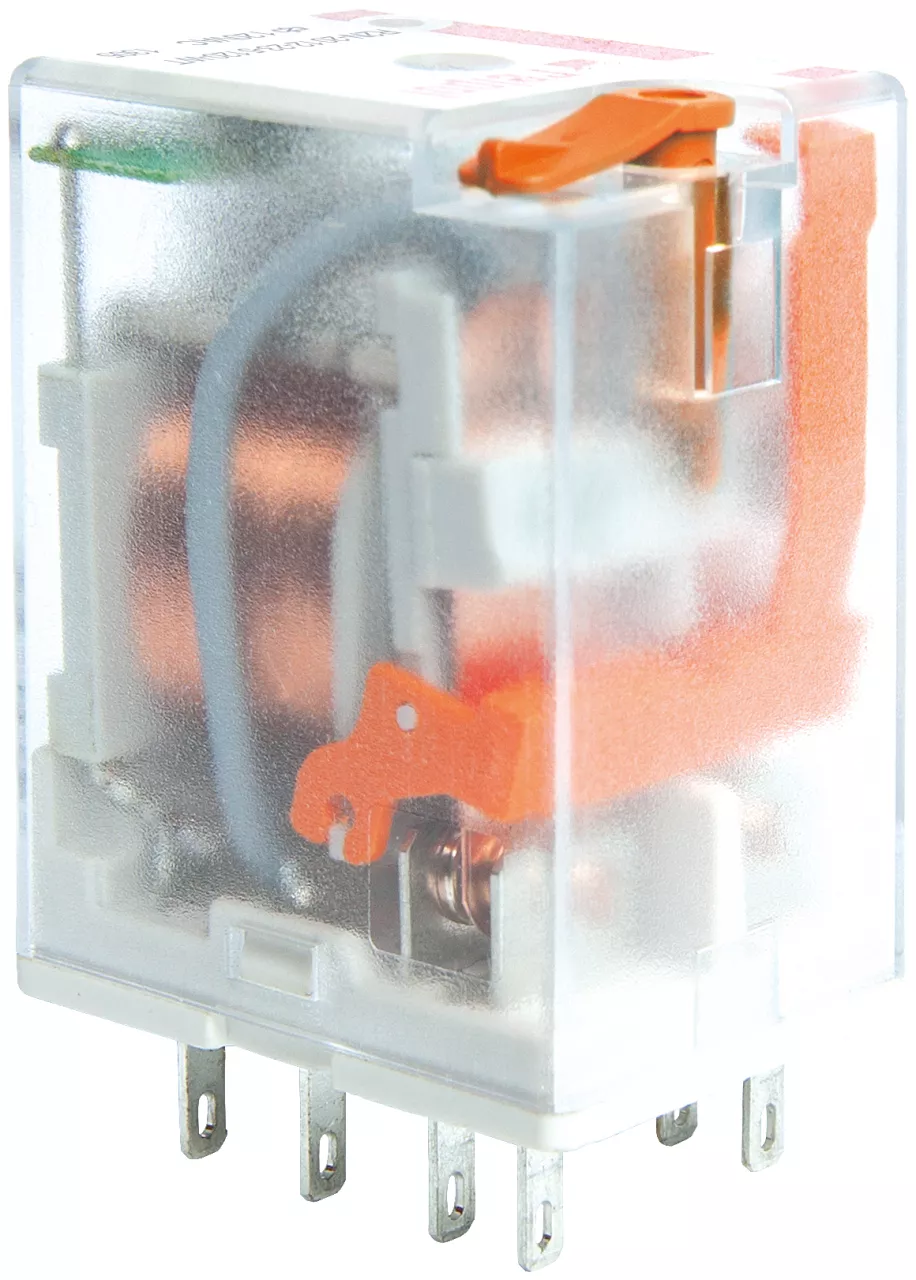

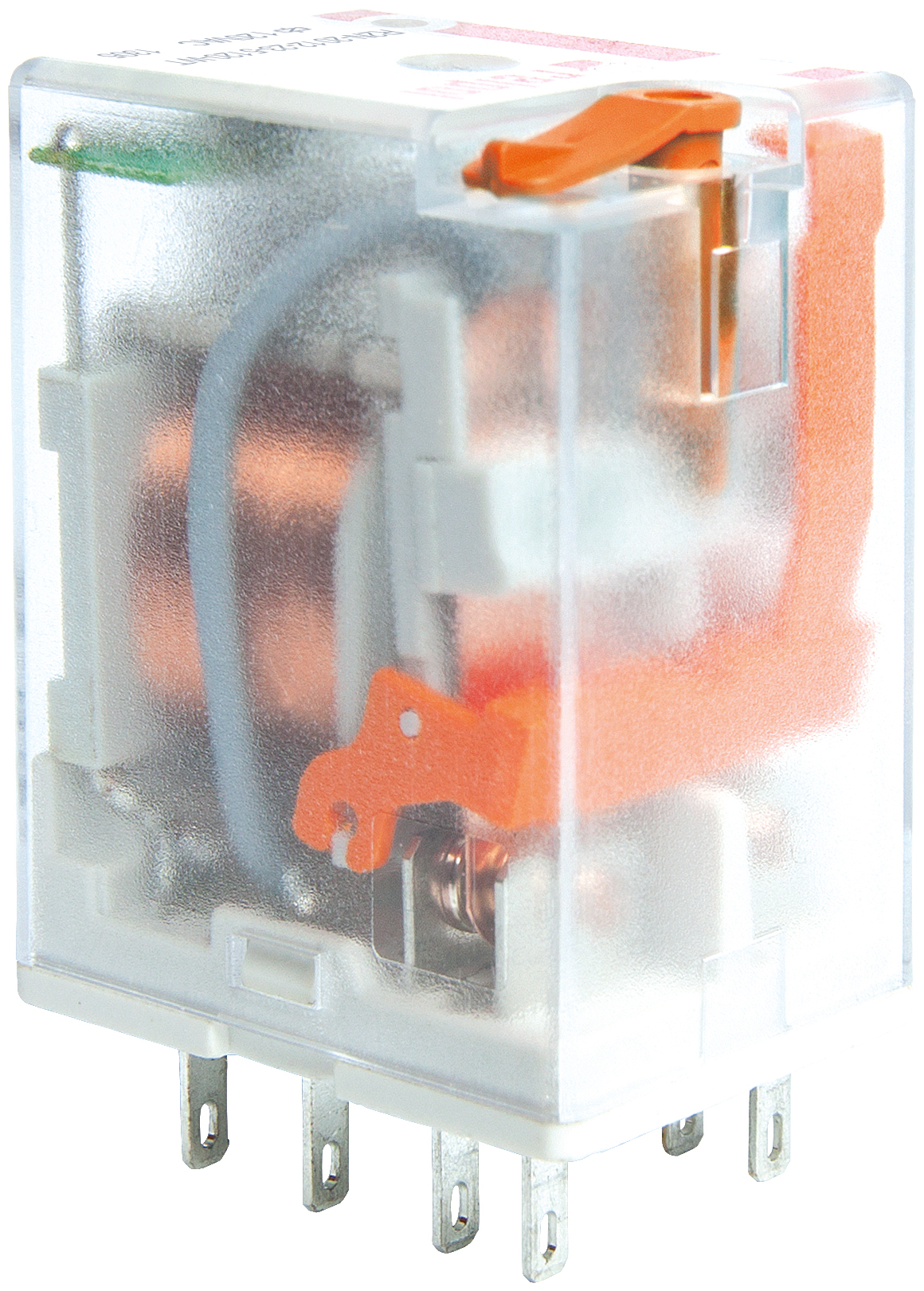

Przekaźnik przemysłowy R2N-2012-23-5042-WT
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | A00089 |
| Price unit | piece |
| Catalog price | 56,52 zł (45,95 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Szerokość 21,2 mm. Wyjście: 2P - dwa zestyki przełączne - wyprowadzenia: 11(9, 12(1), 14(5); 41(12), 42(4), 44(8); AC1 - 12 A / 250 V; DC1 - 12 A / 24 V. Wejście / cewka - wyprowadzenia: A1(13) - A2(14), napięcie zasilania Un -42 V AC. Wskaźnik mechaniczny W, przycisk testujący T z funkcją blokowania. Wymiary: 27,5 x 21,2 x 35,6 mm. IP 40. Materiał styków: AgNi. Pasujące gniazda: GZT2, GZM2, GZP2, SU4/2D, SU4/2L, G4/2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 35 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Plug-in connection |
| Complete with socket: | no |
| With detachable clamps: | no |
| With LED indication: | no |
| Rated control supply voltage AC 50 Hz: | 42 - 42 V |
| Rated control supply voltage AC 60 Hz: | 42 - 42 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Material contact: | Silver nickel (AgNi) |
| Nominal current: | 12 A |
| Degree of protection (IP): | IP40 |
| Width: | 21 mm |
| Height: | 35.5 mm |
| Depth: | 27.4 mm |
