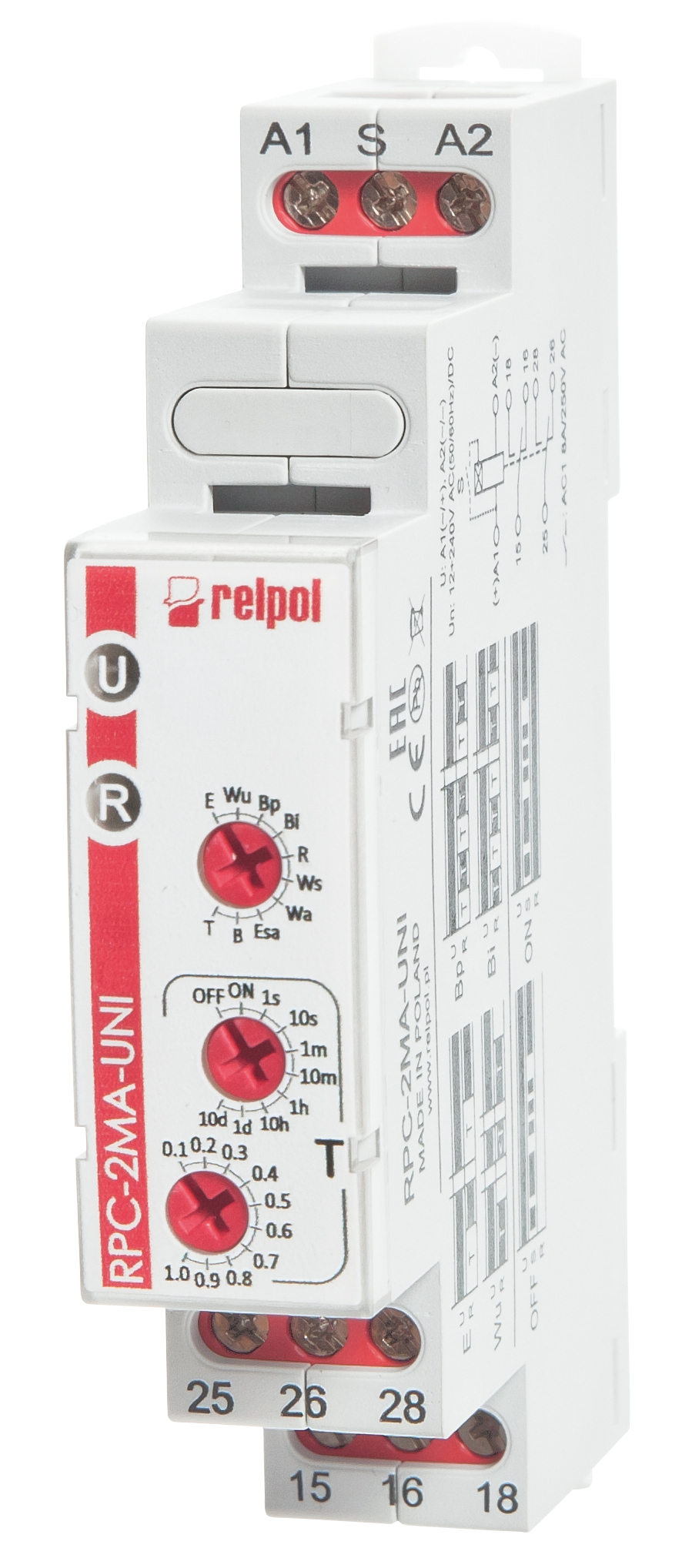

Przekaźnik czasowy RPC-2MA-UNI-01
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 865660 |
GTIN(EAN) | 5900005300967 |
Price unit | piece |
Catalog price | 244,78 zł (199,01 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wielofunkcyjny przekaźnik czasowy - 10 funkcji czasowych E, Wu, Bp, Bi, R, Ws, Wa, Esa, B, T; 8 zakresów czasowych, Wyjście: 2P - dwa styki przełączne. Napięcie zasilania - uniwersalne: 12...240VAC/DC 50/60 Hz. Minimalna moc łączeniowa 0,3 W 5 mA
Additional features:
Information | Value |
---|---|
Gross weight: | 73 g |
ETIM class: | Timer relay |
Type of electric connection: | Plug-in connection |
Complete with socket: | yes |
Suitable for DIN rail (top hat rail) mounting: | yes |
Function delay-on energization: | yes |
Function delay on de-energization: | yes |
Function floating contact on energization: | yes |
Function floating contact on de-energization: | yes |
Function star-delta: | no |
Function pulse shaping: | yes |
Time range: | 0.1 - 1 s |
Remote operation possible: | no |
Suitable as remote control: | yes |
Rated control supply voltage AC 50 Hz: | 12 - 240 V |
Rated control supply voltage AC 60 Hz: | 12 - 240 V |
Rated control supply voltage DC: | 12 - 240 V |
Voltage type for actuating: | AC/DC |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, change-over contact: | 2 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 0 |
Number of outputs, delayed, change-over contact: | 0 |
Material contact: | Silver nickel (AgNi) |
Nominal current: | 8 A |
Degree of protection (IP): | IP20 |
Width: | 17.5 mm |
Height: | 64.5 mm |
Depth: | 90 mm |
