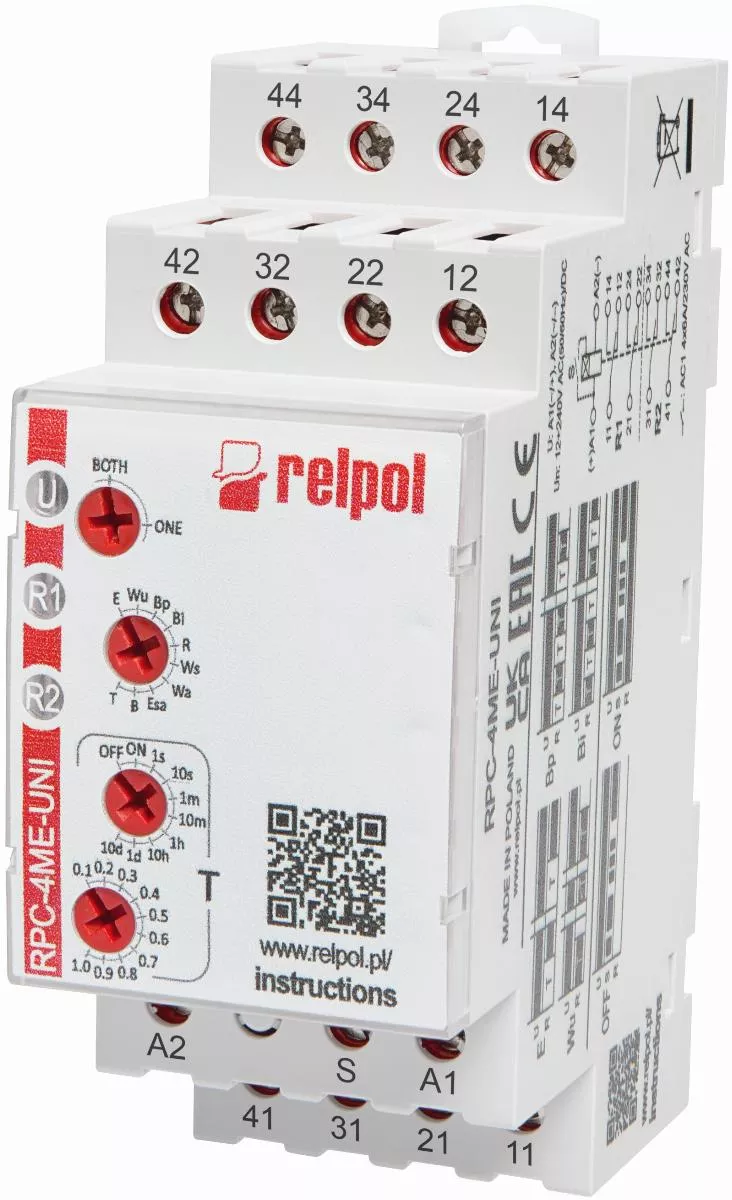

Przekaźnik czasowy RPC-4ME-UNI
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 865446 |
| GTIN(EAN) | 5900005291432 |
| Price unit | piece |
| Catalog price | 352,64 zł (286,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy - 4 wyjścia stykowe 2 x 2P. Napięcie zasilania - uniwersalne: 12...240VAC/DC 50/60 Hz . Wielofunkcyjne 10 funkcji czasowych; 8 zakresów czasowych. Tryb pracy ONE i BOTH. Szerokość 35 mm.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 116 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Pluggable on auxiliary contact block: | no |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function star-delta: | no |
| Function pulse shaping: | yes |
| Time range: | 1 - 864000 s |
| Rated control supply voltage AC 50 Hz: | 12 - 240 V |
| Rated control supply voltage AC 60 Hz: | 12 - 240 V |
| Voltage type for actuating: | AC/DC |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 2 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| With semiconductor output: | no |
| Nominal current: | 6 A |
| Width: | 35 mm |
| Height: | 64 mm |
| Depth: | 90 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP20 |
