Przekaźnik interfejsowy PI84-230AC-M93G-PS-2012-01
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 864992 |
| GTIN(EAN) | 5900005274213 |
| Price unit | piece |
| Catalog price | 101,20 zł (82,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

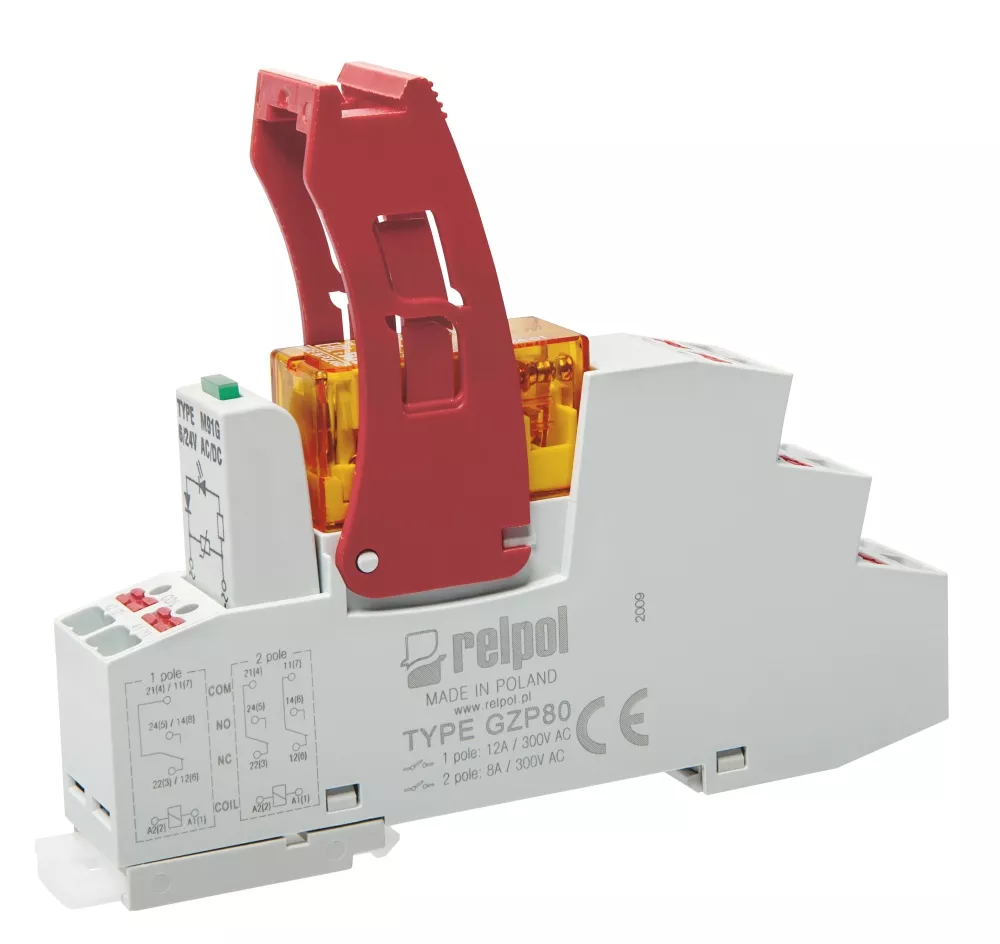

Przekaźnik interfejsowy PUSH-IN: 2P - dwa zestyki przełączne, napięcie zasilania Un - 230 V AC, materiał stykowy AgNi. AC1 - 8 A / 250 V AC; DC1 - 8 A / 24 V DC. Wymiary: 97 x 15,9 x 75,8 mm. Montaż na szynie 35 mm lub na płycie montażowej jednym wkrętem M3. Przystosowane do współpracy ze złączami grzebieniowymi typu ZGZP. Zestaw zawiera: gniazdo push-in GZP80, przekaźnik RM84 w przeźroczystej pomarańczowej obudowie, obejmę wyrzutnikową GZP80-0400 oraz moduł przeciwprzepięciowy M93G (LED zielona + warystor)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 6,5 g |
| ETIM class: | Switching relay |
| Nominal current: | 8 A |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP20 |
| Width: | 15.9 mm |
| Height: | 75.8 mm |
| Depth: | 97 mm |
