Przekaźnik interfejsowy PIR2-024AC-M91G-PS-2012
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 864840 |
| GTIN(EAN) | 5900005272530 |
| Price unit | piece |
| Catalog price | 125,29 zł (101,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

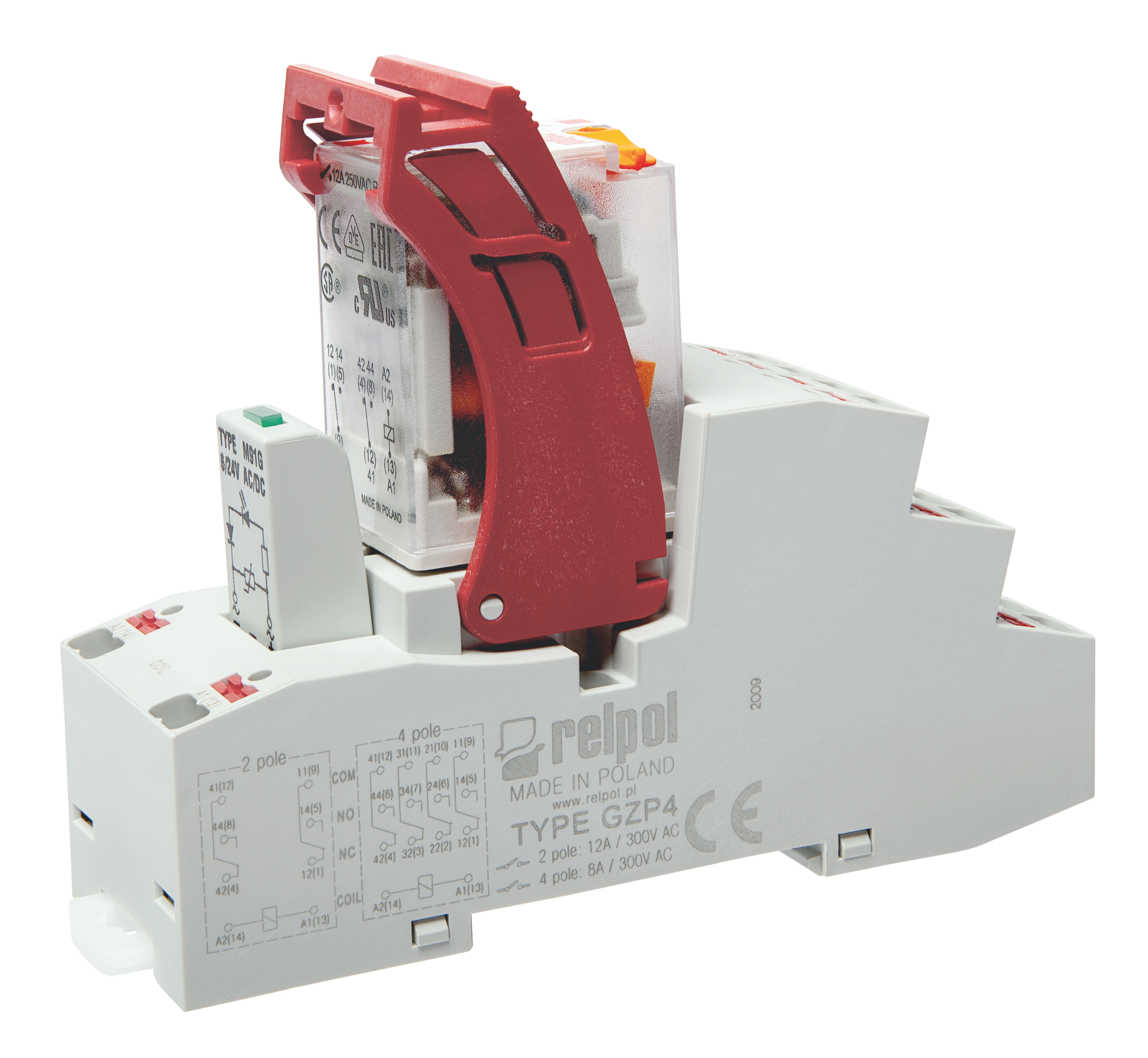

Przekaźnik interfejsowy PUSH-IN: 2P - dwa zestyki przełączne, napięcie zasilania Un - 24 V AC, materiał stykowy AgNi. AC1 - 12 A / 250 V AC; DC1 - 12 A / 24 V DC. Wymiary: 97 x 31 x 75,8 mm. Montaż na szynie 35 mm lub na płycie montażowej jednym wkrętem M3. Przystosowane do współpracy ze złączami grzebieniowymi typu ZGZP. Zestaw zawiera: gniazdo push-in GZP4, przekaźnik R2N, obejmę wyrzutnikową GZP4-0400 oraz moduł przeciwprzepięciowy M91G (LED zielona + warystor)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 11,7 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Nominal current: | 12 A |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP20 |
| Width: | 31 mm |
| Height: | 75.8 mm |
| Depth: | 97 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:11 |
| Files to download: |
