Przekaźnik interfejsowy PIR2-024DC-M41G-PS-2012
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 864839 |
GTIN(EAN) | 5900005272509 |
Price unit | piece |
Catalog price | 121,06 zł (98,42 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

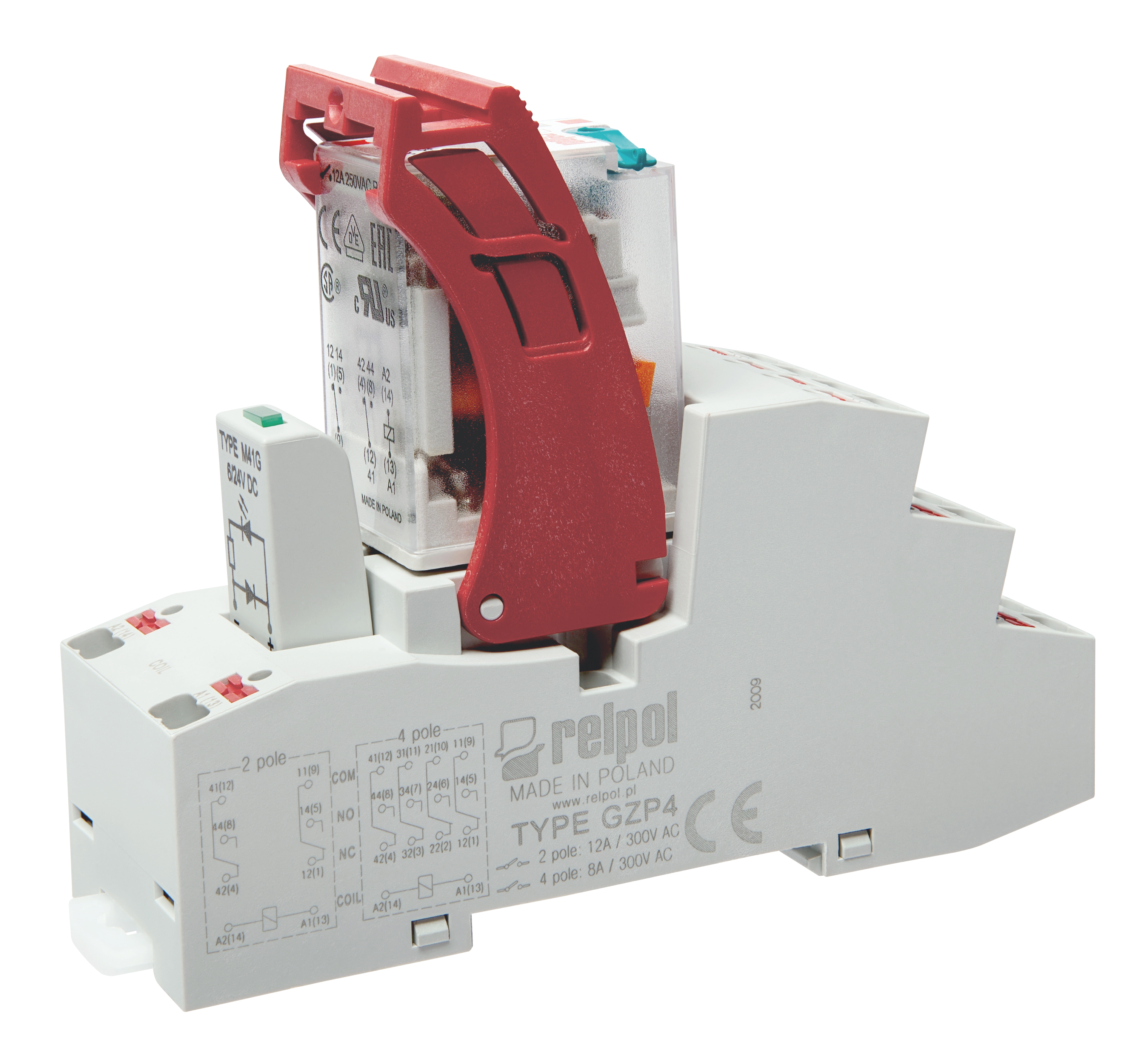

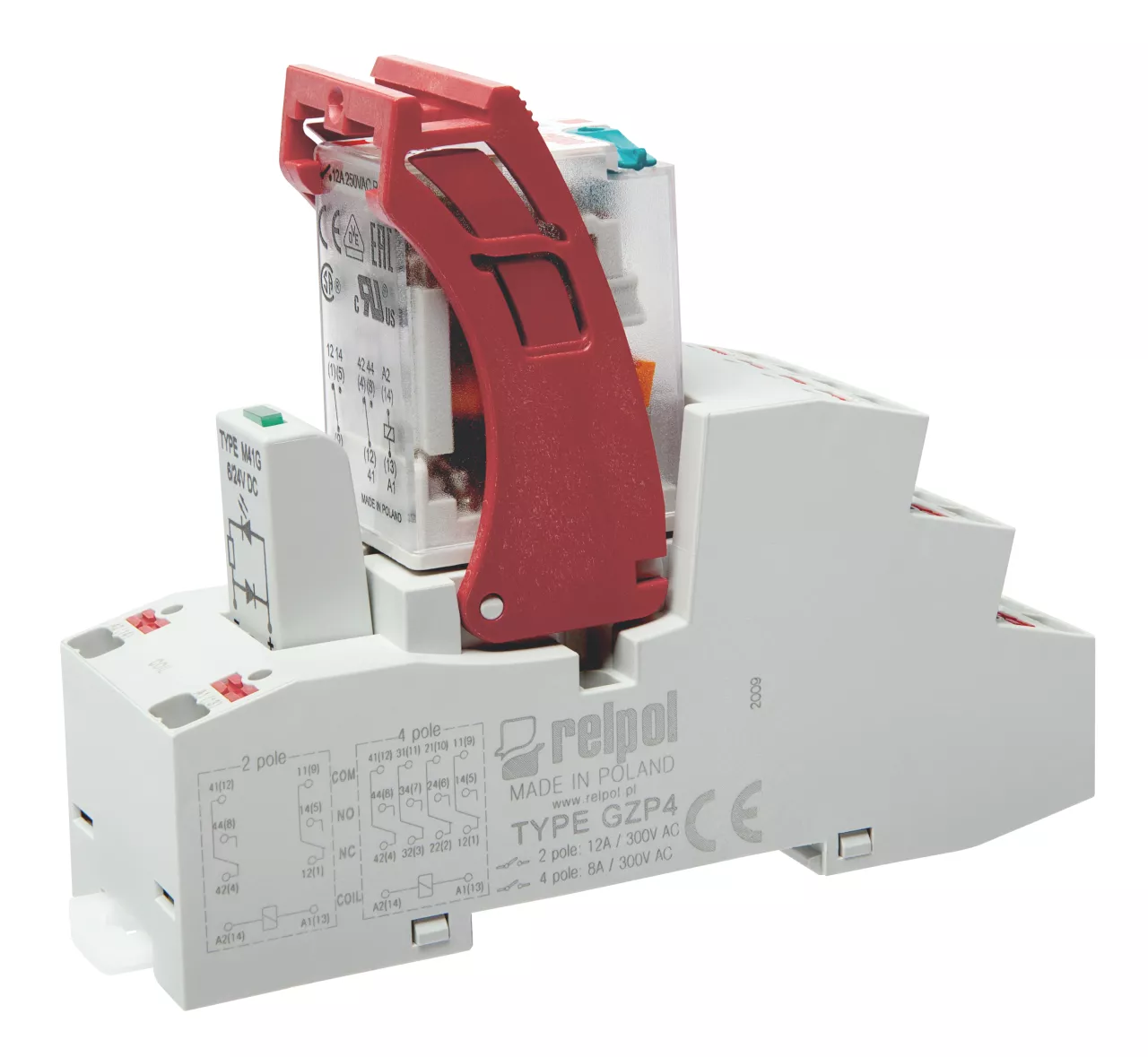

Przekaźnik interfejsowy PUSH-IN: 2P - dwa zestyki przełączne, napięcie zasilania Un - 24 V DC, materiał stykowy AgNi. AC1 - 12 A / 250 V AC; DC1 - 12 A / 24 V DC. Wymiary: 97 x 31 x 75,8 mm. Montaż na szynie 35 mm lub na płycie montażowej jednym wkrętem M3. Przystosowane do współpracy ze złączami grzebieniowymi typu ZGZP. Zestaw zawiera: gniazdo push-in GZP4, przekaźnik R2N, obejmę wyrzutnikową GZP4-0400 oraz moduł przeciwprzepięciowy M41G (LED zielony + dioda tłumiąca D, polaryzacja N: +A1/-A2)
Additional features:
Information | Value |
---|---|
Net weight: | 11,7 g |
ETIM class: | Switching relay |
Type of electric connection: | Screw connection |
With detachable clamps: | no |
Nominal current: | 12 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 2 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | yes |
With LED indication: | no |
Material of contact surface: | Silver |
Material contact: | Nickel |
Degree of protection (IP): | IP20 |
Width: | 31 mm |
Height: | 75.8 mm |
Depth: | 97 mm |
