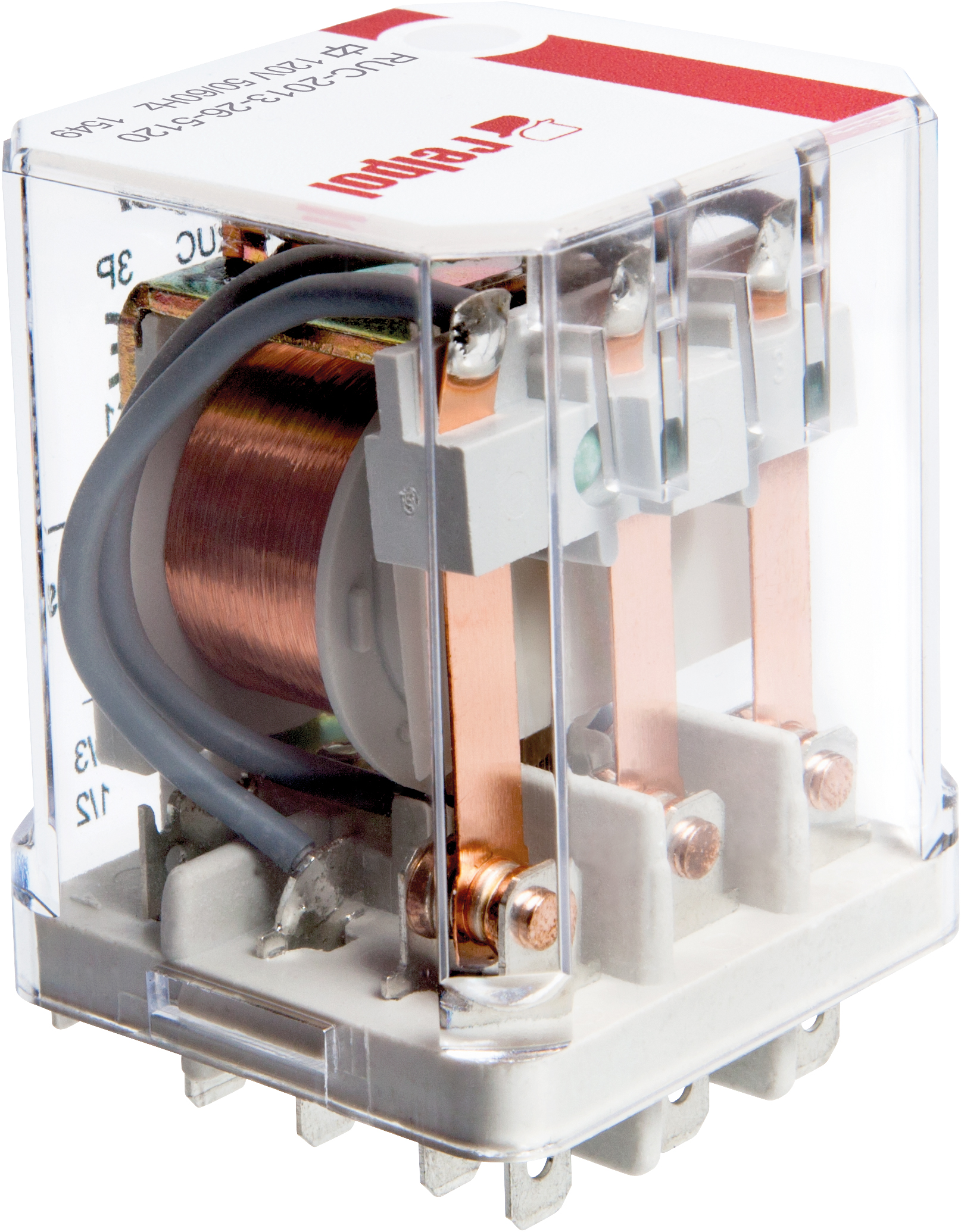

Przekaźnik przemysłowy RUC-3013-26-1042
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 864284 |
| GTIN(EAN) | 5900005253188 |
| Price unit | piece |
| Catalog price | 76,79 zł (62,43 zł + 23% VAT) |
| Sale price | from 29,26 zł / szt. (23,79 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Wyjście: 3P - trzy zestyki przełączne - wyprowadzenia: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6); AC1 - 16 A / 250 V, 10 A / 400 V; DC-1 - 16 A / 24 V. Wejście / cewka: A1(A) - A2(B), napięcie zasilania Un - 42 V DC. Wymiary: 36,1 x 38,6 x 45,5 mm. IP 00. Materiał styków: AgSnO2. Do gniazda: GUC11S-V0.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 80 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Plug-in connection |
| With detachable clamps: | no |
| Nominal current: | 16 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 42 - 42 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP00 |
| Width: | 38.6 mm |
| Height: | 52.65 mm |
| Depth: | 36.1 mm |
