Przekaźnik przemysłowy R15-2014-23-3230-L
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 863893 |
| GTIN(EAN) | 5900005244704 |
| Price unit | piece |
| Catalog price | 123,84 zł (100,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

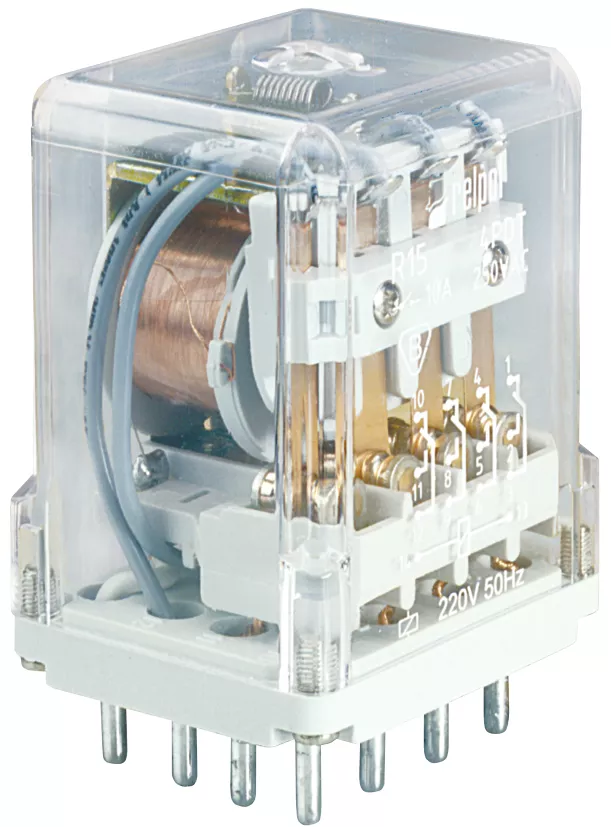

Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Szerokość 42,5 mm. Wyjście: 4P - cztery zestyki przełączne - wyprowadzenia: 11(3), 12(1), 14(2); 21(6), 22(4), 24(5); 31(9), 32(7), 34(8); 41(12), 42(10), 44(11); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście / cewka - wyprowadzenia: A1(13) - A2(14), napięcie zasilania Un - 230 V AC. Wskaźnik LED czerwony L. Wymiary: 42,5 x 35 x 54,5 mm. IP 40. Materiał styków: AgNi. Do gniazd: GZ14U, GZ14, GZ14Z, GZ14P, GOP14.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 95 g |
| ETIM class: | Switching relay |
| Nominal current: | 10 A |
| Width: | 34 mm |
| Height: | 54.5 mm |
| Depth: | 35 mm |
| With detachable clamps: | no |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| With forced-guided contacts: | no |
| Complete with socket: | no |
| Type of electric connection: | Plug-in connection |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP40 |
| With LED indication: | no |
| Material contact: | Nickel |
| Voltage type for actuating: | AC |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 4 |
