Przekaźnik interfejsowy SIR6WB-24VAC/DC-R
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 863768 |
| Price unit | piece |
| Catalog price | 60,63 zł (49,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

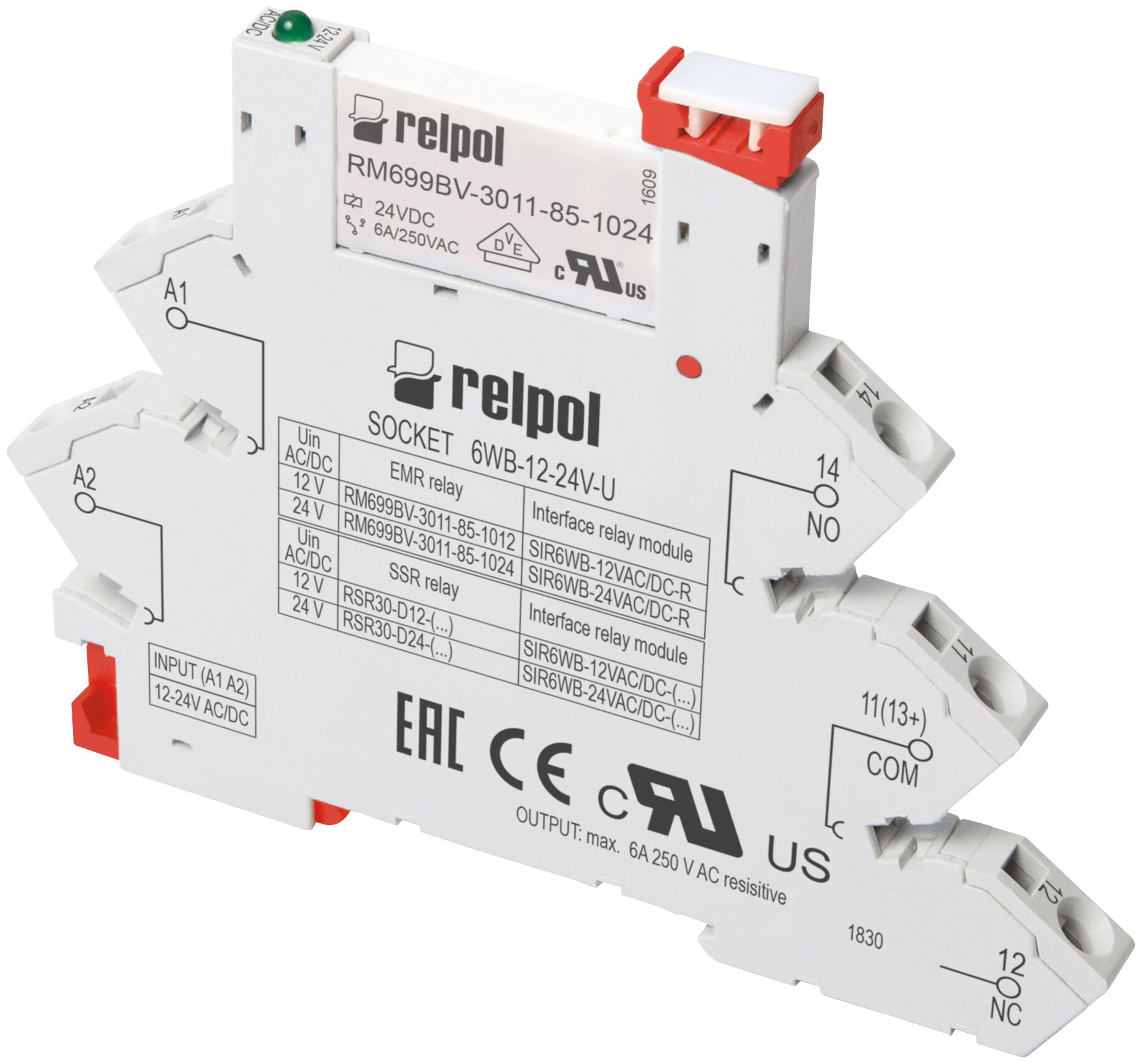

Przekaźnik interfejsowy wąskoprofilowy - zestaw gniazdo 6WB-12-24V-U oraz przekaźnik RM699BV-3011-85-1024. Szerokość 6,2 mm. Zaciski sprężynowe. Wyjście (wymienne - przekaźnik RM699BV): styki 1P - zaciski: 14, 11 (13+), 12; AC1 - 6A/250 V; DC1 - 6A/30 V. Wejście - zaciski: A1 - A2 - dowolna biegunowość, napięcie zasilania Un - 24 V AC/DC. Wymiary: 88,6 x 6,2 x 76 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 30 g |
| ETIM class: | Switching relay |
| With detachable clamps: | no |
| Nominal current: | 6 A |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | AC/DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| Type of switch contact: | Single contact |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP20 |
| Width: | 6.2 mm |
| Height: | 76 mm |
| Depth: | 95 mm |
