Przekaźnik interfejsowy PI84-048DC-M42G-MS-2012
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 863498 |
| GTIN(EAN) | 5900005236983 |
| Price unit | piece |
| Catalog price | 77,53 zł (63,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

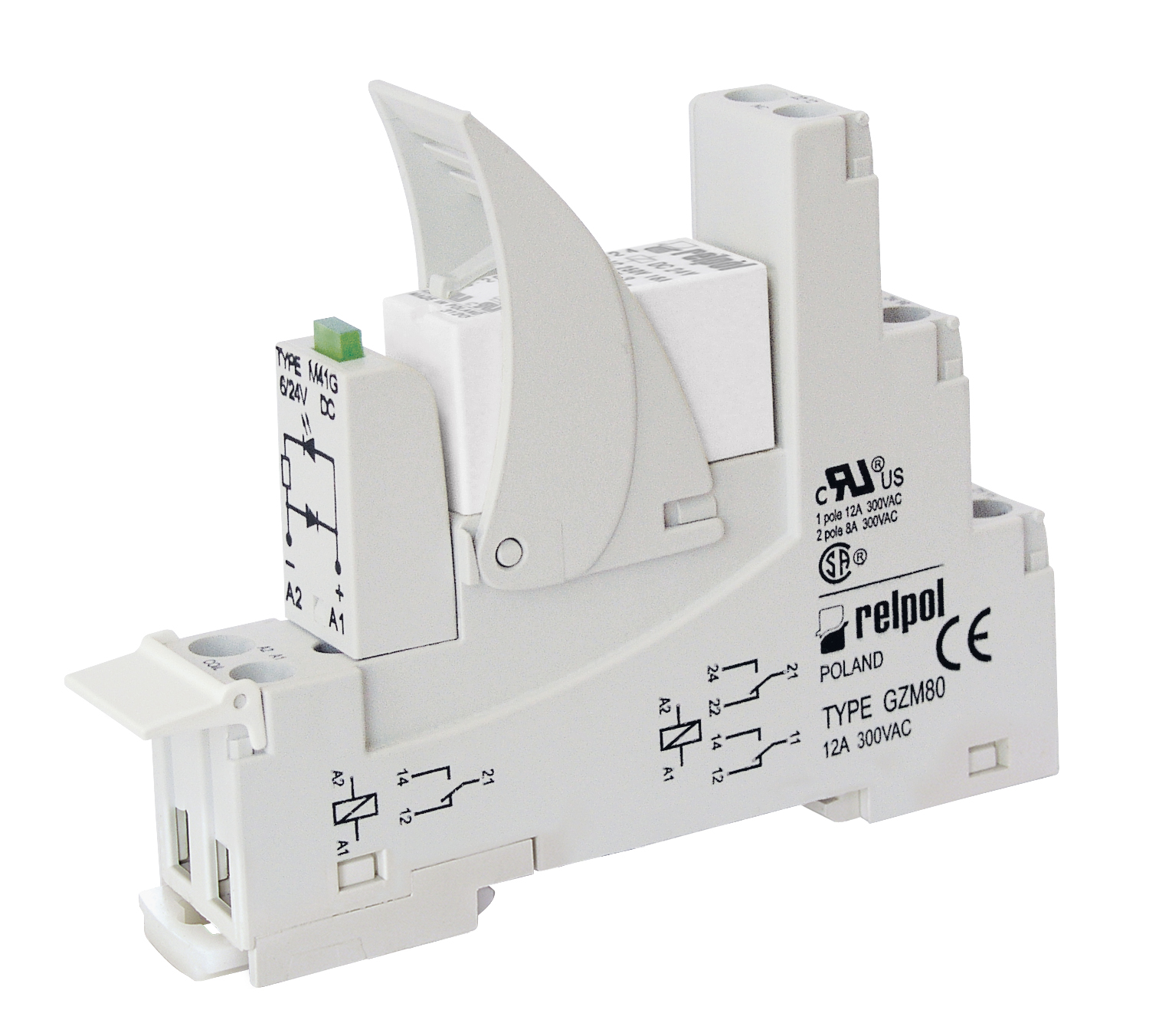

Przekaźnik interfejsowy: 2P - dwa zestyki przełączne. Szerokość 15,9 mm. Materiał styków AgNi. Separacja obwodów - wejście / wyjście. Wskaźnik LED zielony. Dioda D tłumiąca przepięcia. Zaciski śrubowe. Wyjście: styki 2P - zaciski: 11-12-14; 21-22-24; AC1 - 8 A / 250 V; DC1 - 8 A / 24 V. Wejście - zaciski: (+)A1 - (-)A2, napięcie zasilania Un - 48 V DC. Wymiary: 81,6 x 15,9 x 67 mm. Montaż na szynie 35 mm lub na płycie montażowej jednym wkrętem M3. Zestaw zawiera gniazdo GZM80 - IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 60 g |
| ETIM class: | Switching relay |
| Nominal current: | 8 A |
| Width: | 15.9 mm |
| Height: | 67 mm |
| Depth: | 81.6 mm |
| With detachable clamps: | no |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| Type of electric connection: | Screw connection |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 48 - 48 V |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP20 |
| With LED indication: | no |
| Material contact: | Nickel |
| Voltage type for actuating: | DC |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
