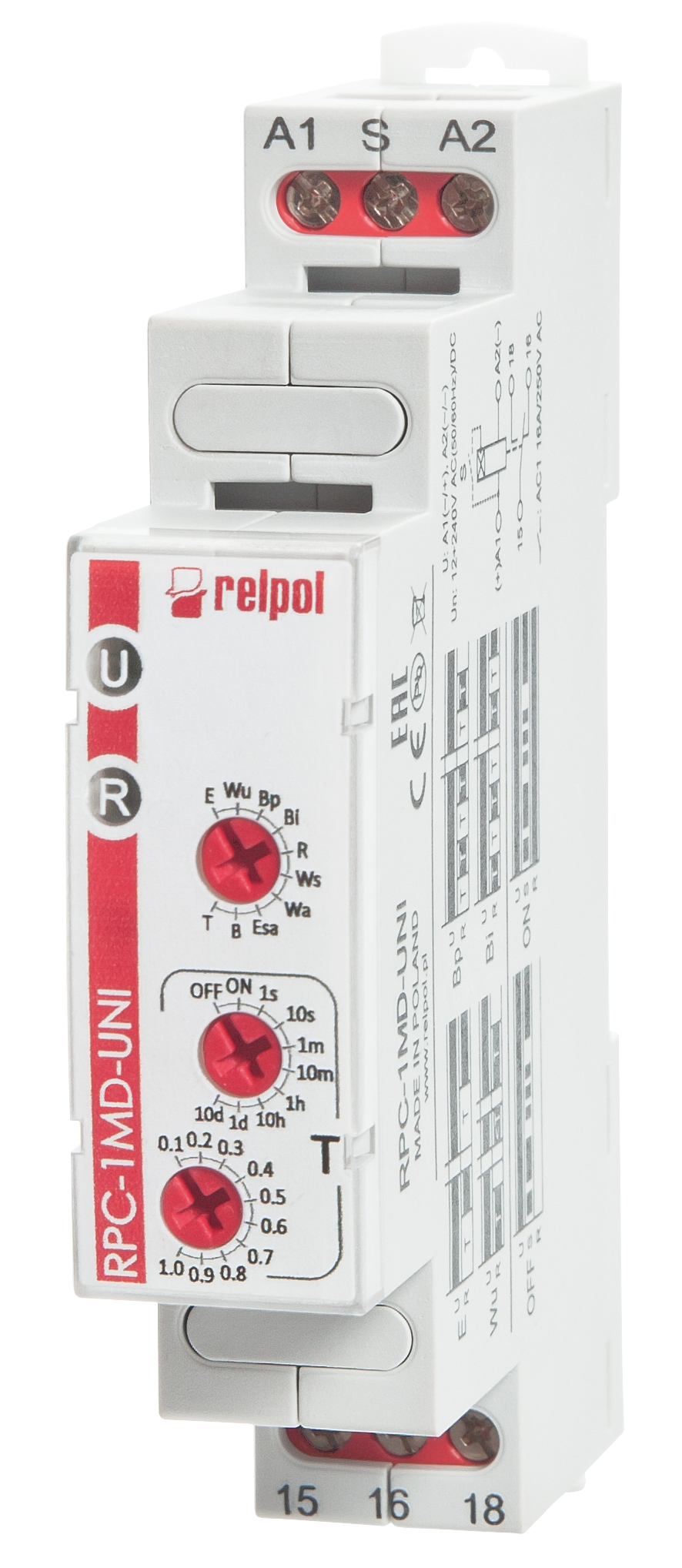

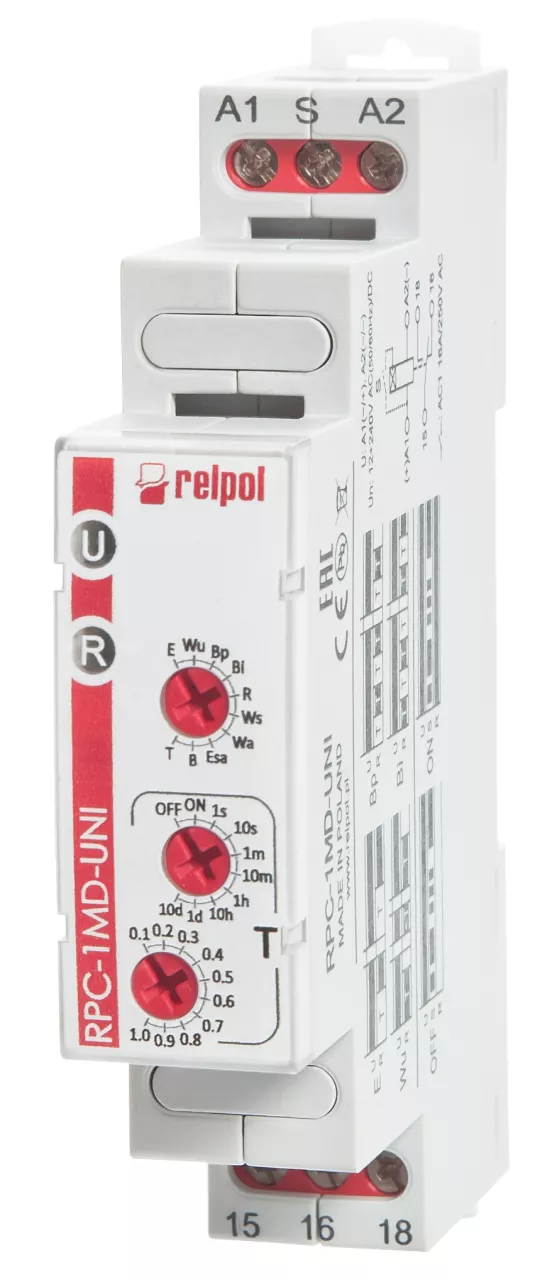

Przekaźnik czasowy RPC-1MD-UNI
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 863218 |
| GTIN(EAN) | 5900005231322 |
| Price unit | piece |
| Catalog price | 244,78 zł (199,01 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wielofunkcyjny przekaźnik czasowy - Natychmiastowa zmiana wyboru funkcji bez konieczności ponownego włączenia przekaźnika. 10 funkcji czasowych E, Wu, Bp, Bi, Bi(S), R, Ws, Wa, Esa(R), E(R), Wu(R); 8 zakresów czasowych, Wyjście: 1P - jeden styk przełączny Napięcie zasilania - uniwersalne: 12...240VAC/DC 50/60 Hz
Additional features:
| Information | Value |
|---|---|
| Net weight: | 65 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Pluggable on auxiliary contact block: | no |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Rated control supply voltage AC 50 Hz: | 12 - 240 V |
| Rated control supply voltage AC 60 Hz: | 12 - 240 V |
| Rated control supply voltage DC: | 12 - 240 V |
| Voltage type for actuating: | AC/DC |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 1 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, change-over contact: | 1 |
| Outputs, reversible delayed/undelayed: | no |
| With semiconductor output: | no |
