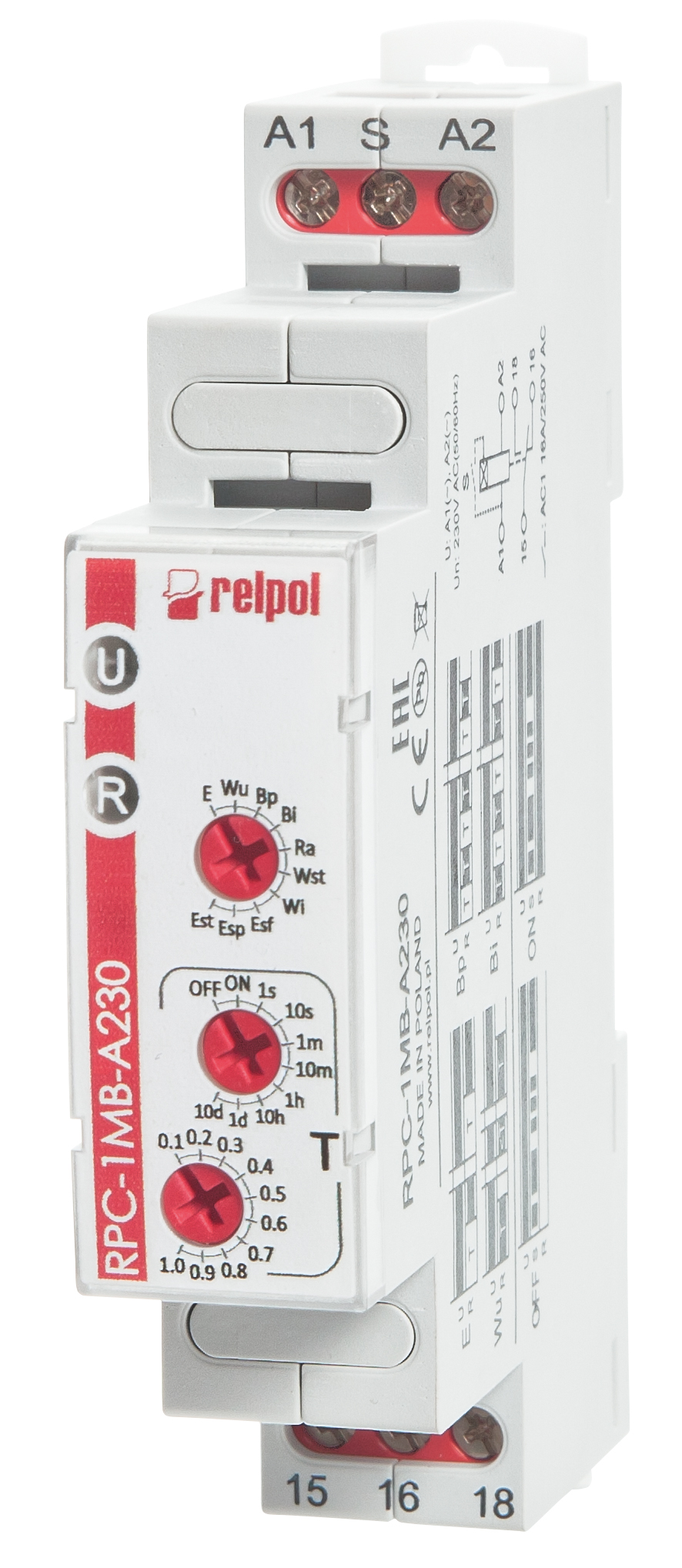

Przekaźnik czasowy RPC-1MA-A230
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 863199 |
GTIN(EAN) | 5900005230752 |
Price unit | piece |
Catalog price | 223,25 zł (181,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wielofunkcyjny przekaźnik czasowy - 10 funkcji czasowych E, Wu, Bp, Bi, R, Ws, Wa, Esa, B, T; 8 zakresów czasowych, Wyjście: 1P - jeden styk przełączny. Napięcie zasilania - 230VAC. Minimalna moc łączeniowa 1 W 10 mA
Additional features:
Information | Value |
---|---|
Net weight: | 66 g |
ETIM class: | Timer relay |
Type of electric connection: | Screw connection |
Function delay-on energization: | yes |
Function delay on de-energization: | yes |
Function floating contact on energization: | yes |
Function floating contact on de-energization: | yes |
Function star-delta: | no |
Function pulse shaping: | yes |
Function flashing, starting with pause, fixed time: | yes |
Function flashing, starting with pulse, fixed time: | yes |
Clock function, starting with pause, variable: | yes |
Clock function, starting with pulse, variable: | yes |
Remote operation possible: | no |
Suitable as remote control: | no |
Pluggable on auxiliary contact block: | no |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Nominal current: | 16 A |
Time range: | 0.1 - 864000 s |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, change-over contact: | 1 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 0 |
Number of outputs, delayed, change-over contact: | 1 |
Outputs, reversible delayed/undelayed: | no |
With semiconductor output: | no |
Suitable for DIN rail (top hat rail) mounting: | yes |
Width: | 17.5 mm |
Height: | 90 mm |
Depth: | 64.5 mm |
