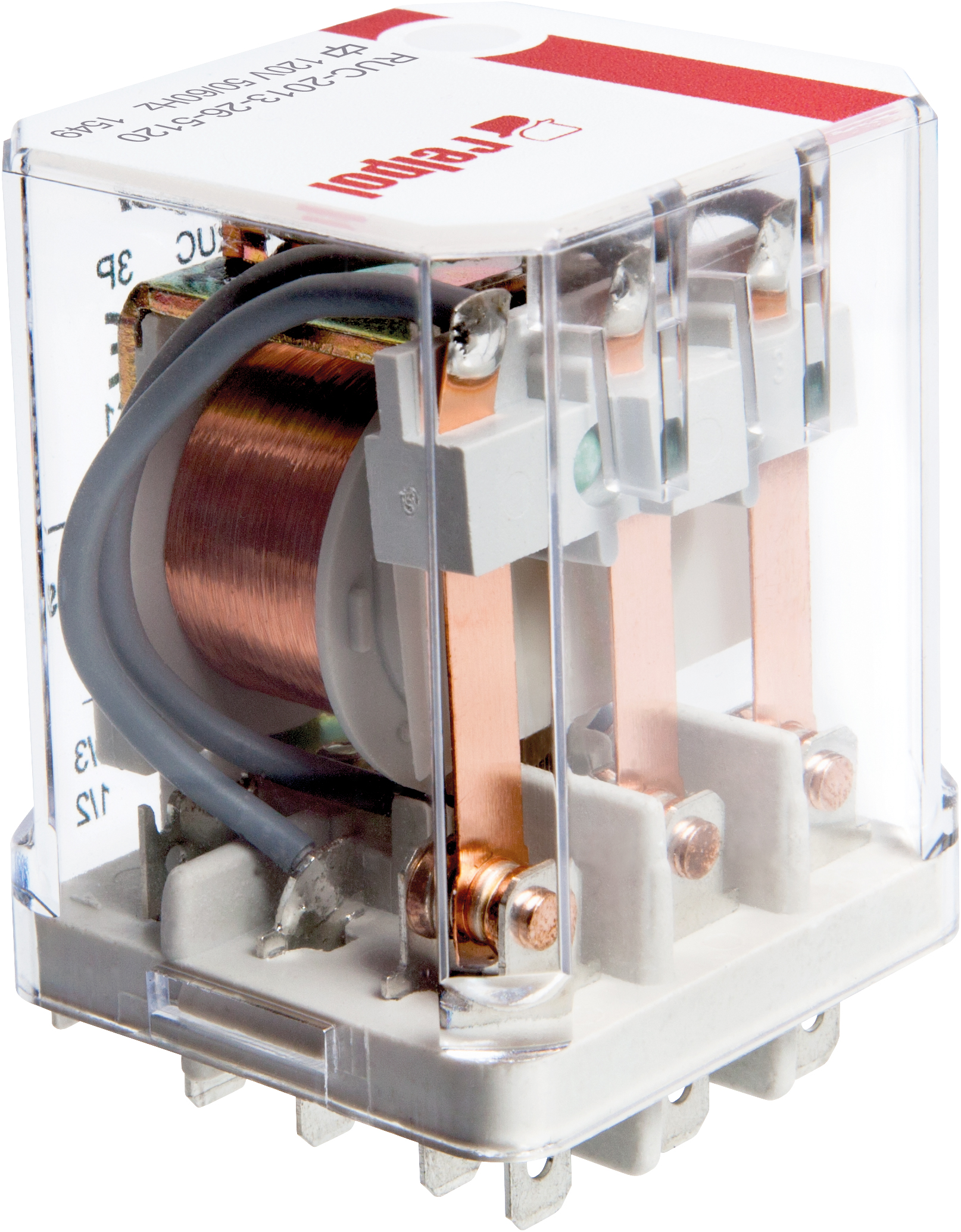

Przekaźnik przemysłowy RUC-2013-26-1220
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 862703 |
GTIN(EAN) | 5900005225314 |
Price unit | piece |
Catalog price | 111,79 zł (90,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Wyjście: 3P - trzy zestyki przełączne - wyprowadzenia: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6); AC1 - 16 A / 250 V, 10 A / 400 V; DC-1 - 16 A / 24 V. Wejście / cewka: A1(A) - A2(B), napięcie zasilania Un - 220 V DC. Wymiary: 36,1 x 38,6 x 45,5 mm. IP 00. Materiał styków: AgNi. Do gniazda: GUC11S-V0.
Additional features:
Information | Value |
---|---|
Net weight: | 80 g |
ETIM class: | Switching relay |
Type of electric connection: | Plug-in connection |
With detachable clamps: | no |
Nominal current: | 16 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 220 - 220 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 3 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
With LED indication: | no |
Material of contact surface: | Silver |
Degree of protection (IP): | IP00 |
Width: | 38.6 mm |
Height: | 52.65 mm |
Depth: | 36.1 mm |
