Przekaźnik kolejowy interfejsowy PIR3T-110DC-M43G-V0
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 862561 |
| GTIN(EAN) | 5900005224041 |
| Price unit | piece |
| Catalog price | 119,75 zł (97,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

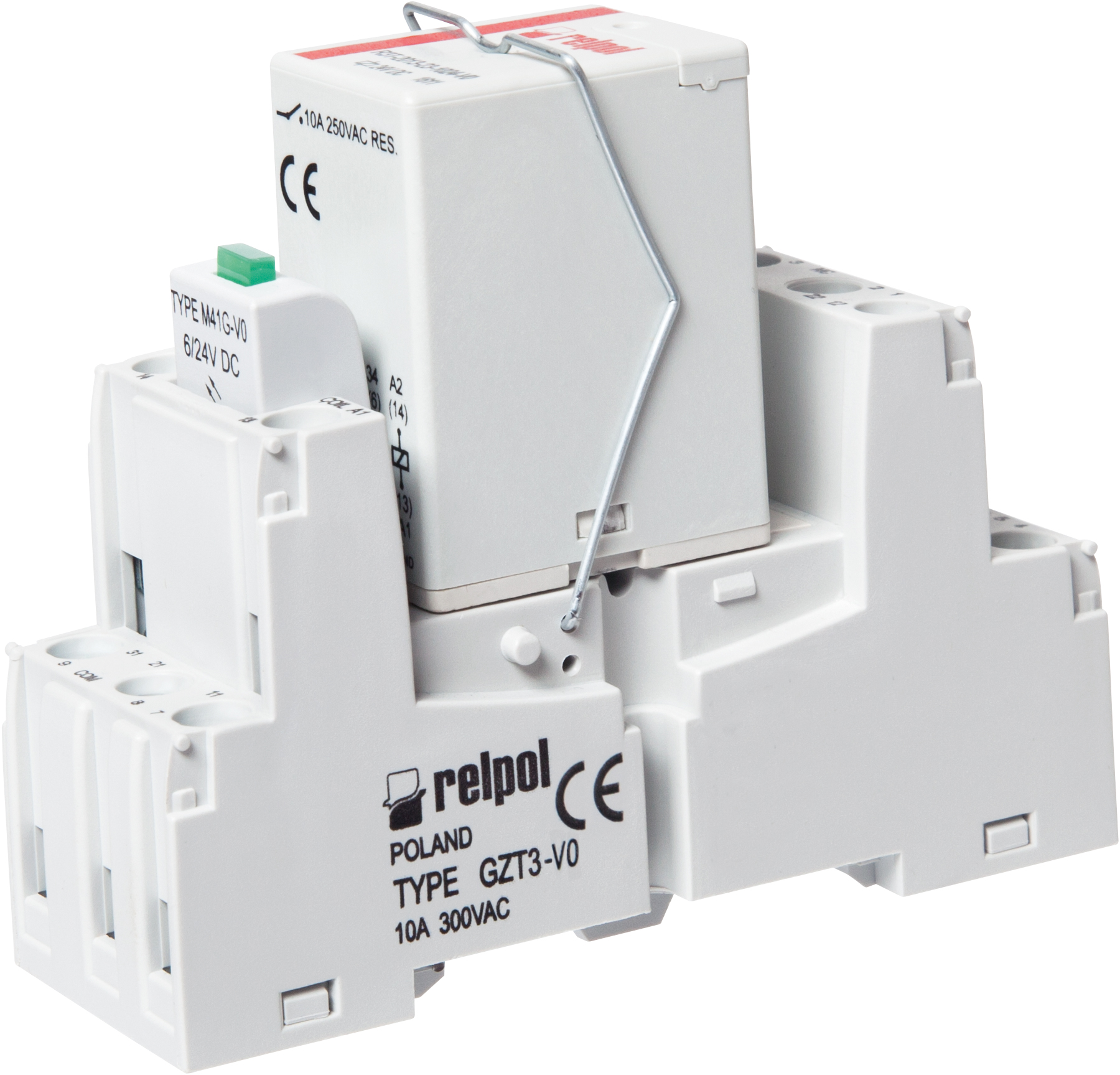

Przekaźnik interfejsowy do zastosowań kolejowych: 3P - trzy zestyki przełączne. Szerokość 27 mm. Wskaźnik LED zielony. Dioda D tłumiąca przepięcia. Zaciski śrubowe. Wyjście: styki 3P - zaciski: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście - zaciski: (+)A1(13) - (-)A2(14), napięcie zasilania Un - 110 V DC. Wymiary: 76,3 x 27 x 65 mm. Montaż na szynie 35 mm lub na płycie montażowej dwoma wkrętami M3. Zestaw zawiera gniazdo GZT3-V0 - IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 87 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Nominal current: | 10 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 110 - 110 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP20 |
| Width: | 27 mm |
| Height: | 65 mm |
| Depth: | 76.3 mm |
