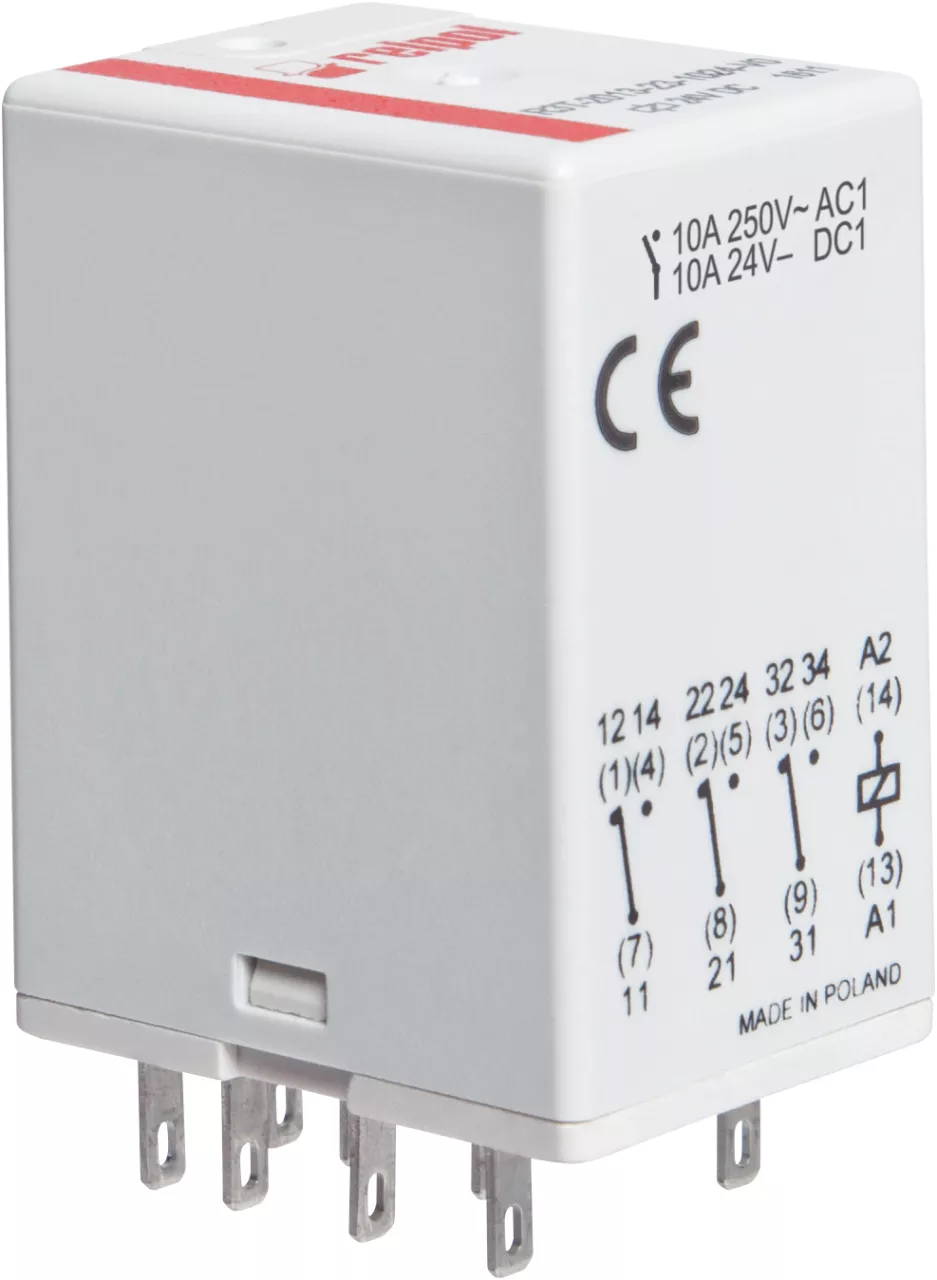

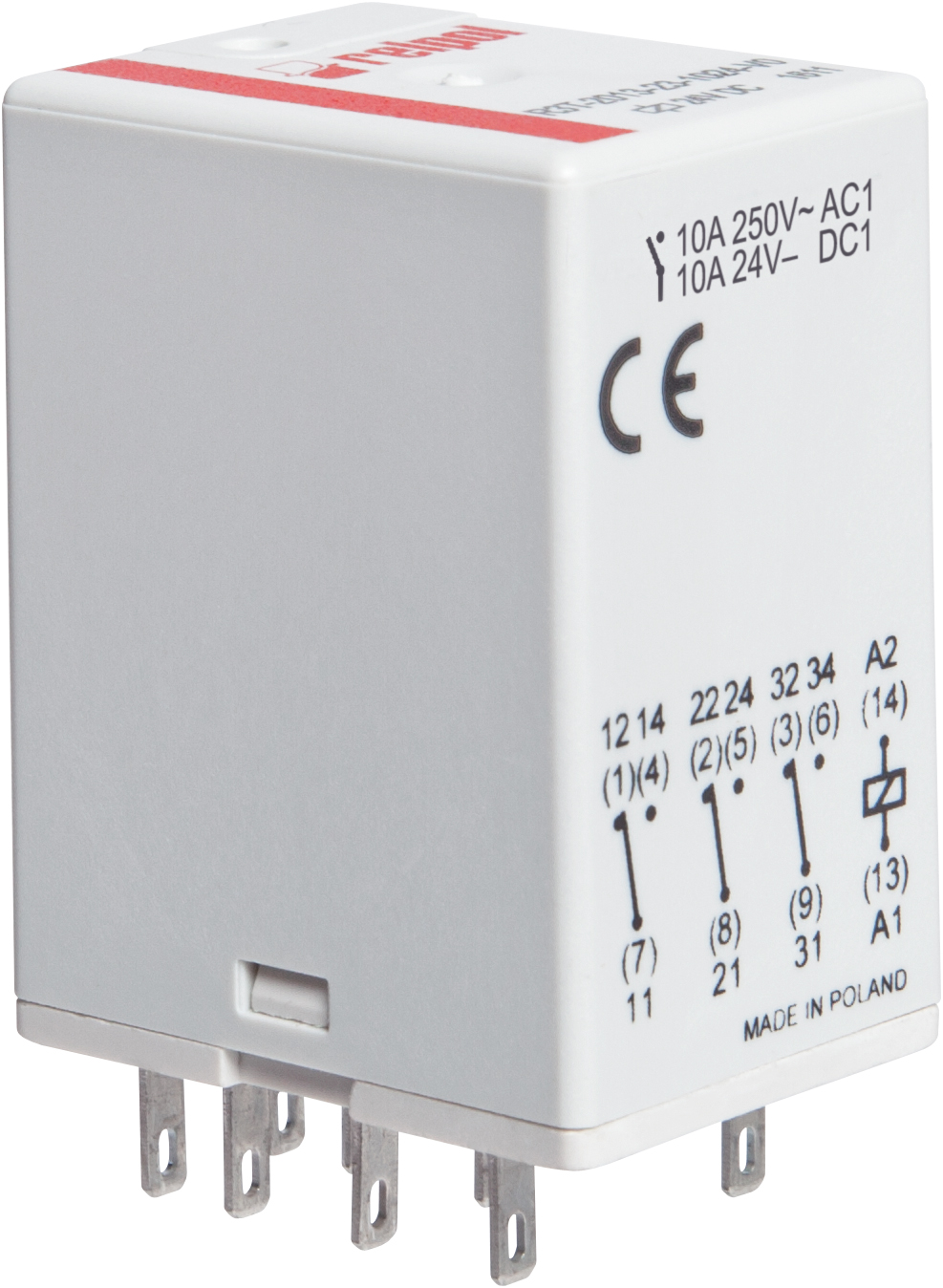

Przekaźnik kolejowy R3T-2013-23-1110-V0
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 862350 |
| Price unit | piece |
| Catalog price | 61,02 zł (49,61 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik wykonawczy do zestawu interfejsowego kolejowego PIR3T oraz gniazd GZT3-V0. Dwa zestyki przełączne 2P. Materiał styków AgNi, Napiece cewki 110 V DC. IP 40. Znamionowy prąd obciążenia: AC1 - 10 A/ 250 V AC; DC1 10 A/ 24 V DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 35 g |
| ETIM class: | Switching relay |
| Nominal current: | 10 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 110 - 110 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP40 |
| Width: | 21 mm |
| Height: | 35.5 mm |
| Depth: | 27.4 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:10 |
| Files to download: |
