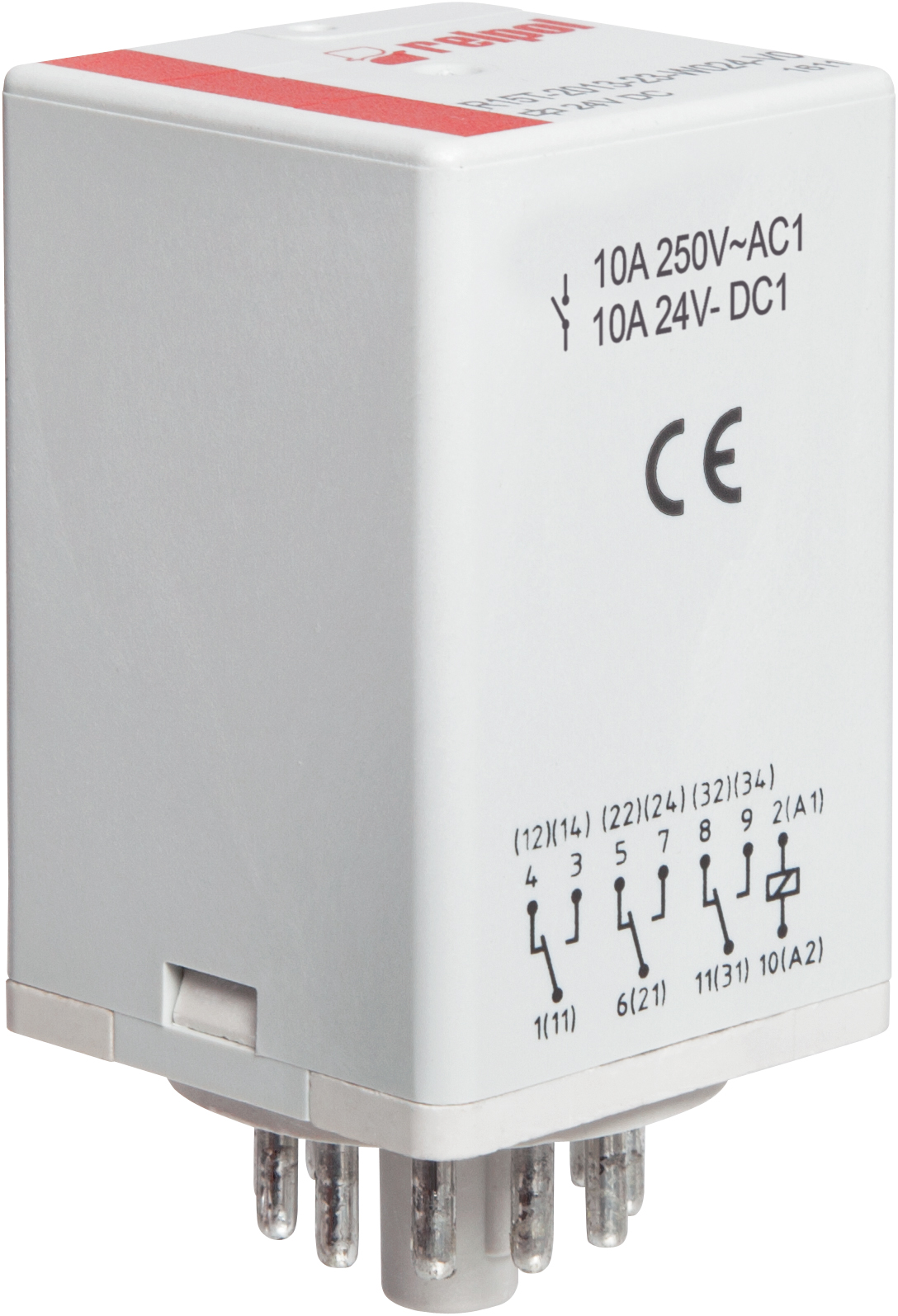

Przekaźnik kolejowy R15T-2013-23-W024-V0
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 862327 |
| Price unit | piece |
| Catalog price | 77,91 zł (63,34 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik wykonawczy do zestawu interfejsowego kolejowego PIR153T oraz gniazd PZ11-V0. Trzy zestyki przełączne 3P. Materiał styków AgNi, Napiece cewki 24 V DC. IP 40. Znamionowy prąd obciążenia: AC1 - 10 A/ 250 V AC; DC1 10 A/ 24 V DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 83 g |
| ETIM class: | Switching relay |
| Nominal current: | 10 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP40 |
| Width: | 35 mm |
| Height: | 54.4 mm |
| Depth: | 35 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
