Przekaźnik kolejowy interfejsowy PRUCT-2013-26-W024-V0
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 862278 |
| GTIN(EAN) | 5900005219122 |
| Price unit | piece |
| Catalog price | 157,93 zł (128,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

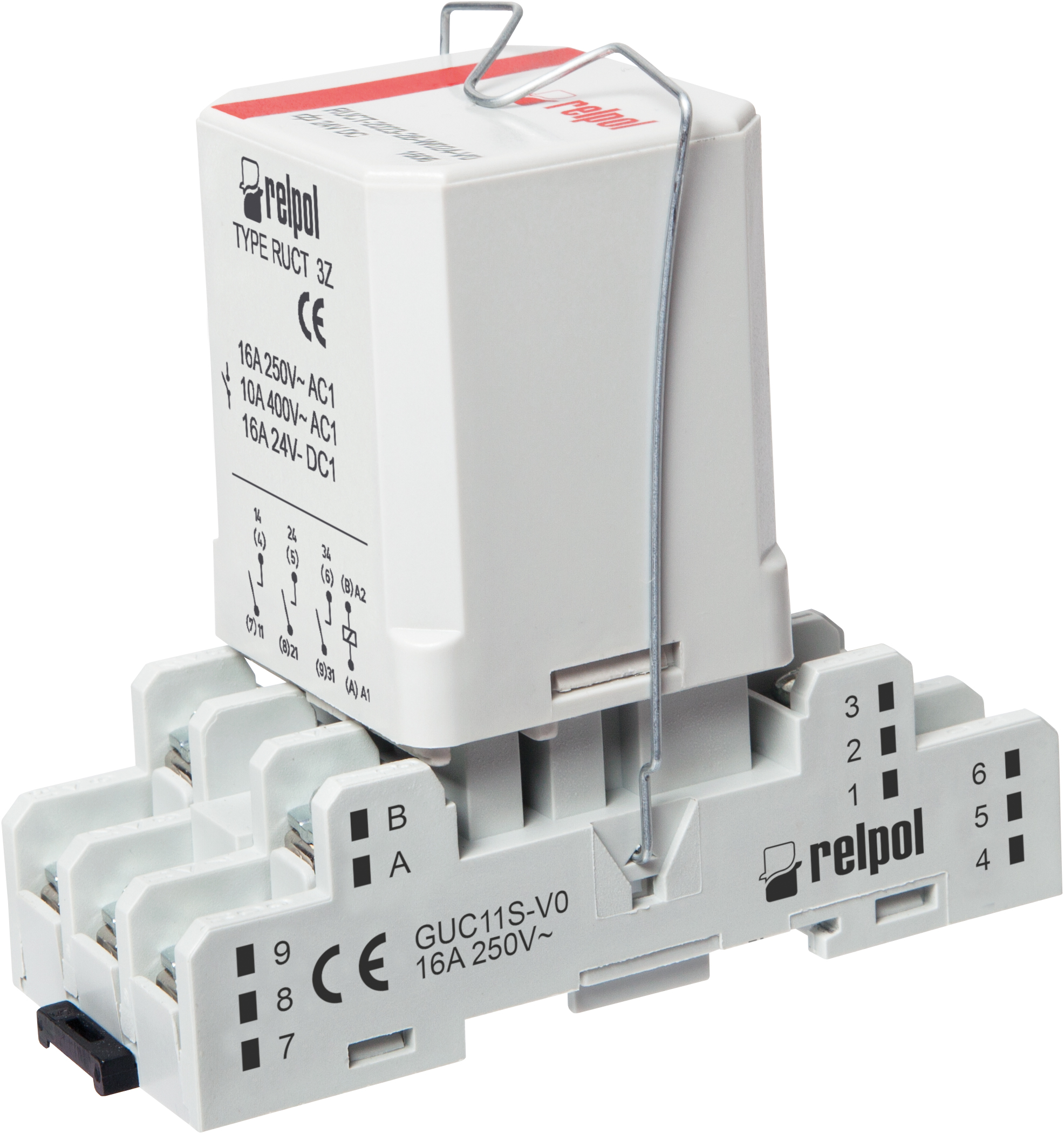

Przekaźnik interfejsowy do zastosowań kolejowychy: 3P - trzy zestyki przełączne. Szerokość 41,5 mm. Zaciski śrubowe. Wyjście: zestyki 2Z - zaciski: 11-12-14, 31-32-34; AC1 - 16 A / 250 V; DC1 - 16 A / 24 V. Wejście - zaciski: A1 - A2, napięcie zasilania Un - 24 V DC. Wymiary: 84,5 x 41,5 x77,3 mm. Montaż na szynie 35 mm. Zestaw zawiera gniazdo GUC11S-V0.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 162 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Nominal current: | 16 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP20 |
| Width: | 41.5 mm |
| Height: | 77.3 mm |
| Depth: | 84.5 mm |
