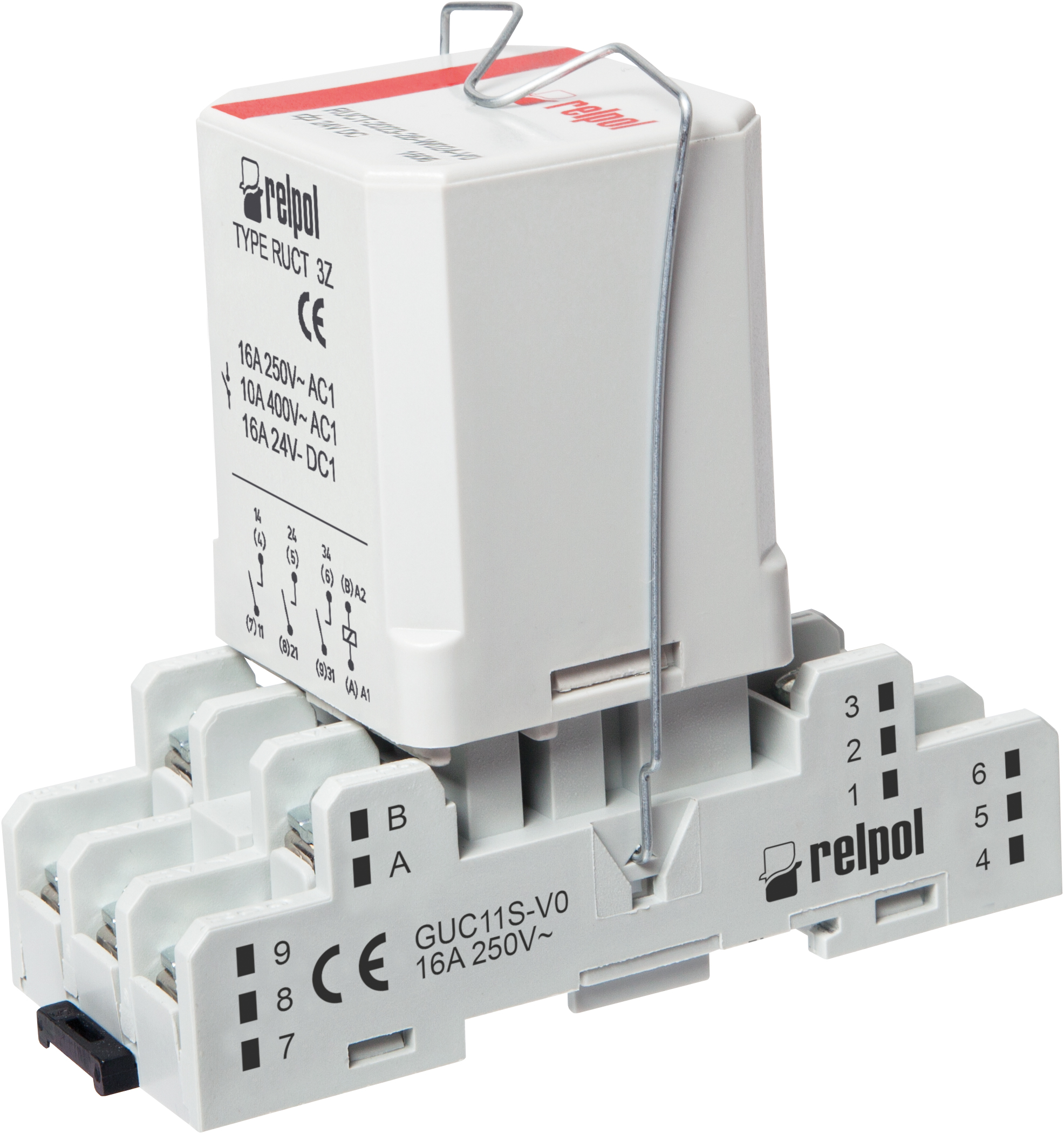

Przekaźnik kolejowy interfejsowy PRUCT-2023-26-W024-V0
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 862275 |
GTIN(EAN) | 5900005219030 |
Price unit | piece |
Catalog price | 157,93 zł (128,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik interfejsowy do zastosowań kolejowych: 3Z - trzy zestyki zwierne. Szerokość 41,5 mm. Zaciski śrubowe. Wyjście: zestyki 2Z - zaciski: 11-14, 31-34; AC1 - 16 A / 250 V; DC1 - 16 A / 24 V. Wejście - zaciski: A1 - A2, napięcie zasilania Un - 24 V DC. Wymiary: 84,5 x 41,5 x77,3 mm. Montaż na szynie 35 mm. Zestaw zawiera gniazdo GUC11S-V0.
Additional features:
Information | Value |
---|---|
Net weight: | 162 g |
ETIM class: | Switching relay |
Type of electric connection: | Screw connection |
With detachable clamps: | no |
Nominal current: | 16 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 3 |
Number of contacts as change-over contact: | 0 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
With LED indication: | no |
Material of contact surface: | Silver |
Material contact: | Nickel |
Degree of protection (IP): | IP20 |
Width: | 41.5 mm |
Height: | 77.3 mm |
Depth: | 84.5 mm |
