Przekaźnik interfejsowy PI85-230AC-M93G-TS-2011
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 862114 |
| GTIN(EAN) | 5900005214165 |
| Price unit | piece |
| Catalog price | 86,75 zł (70,53 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

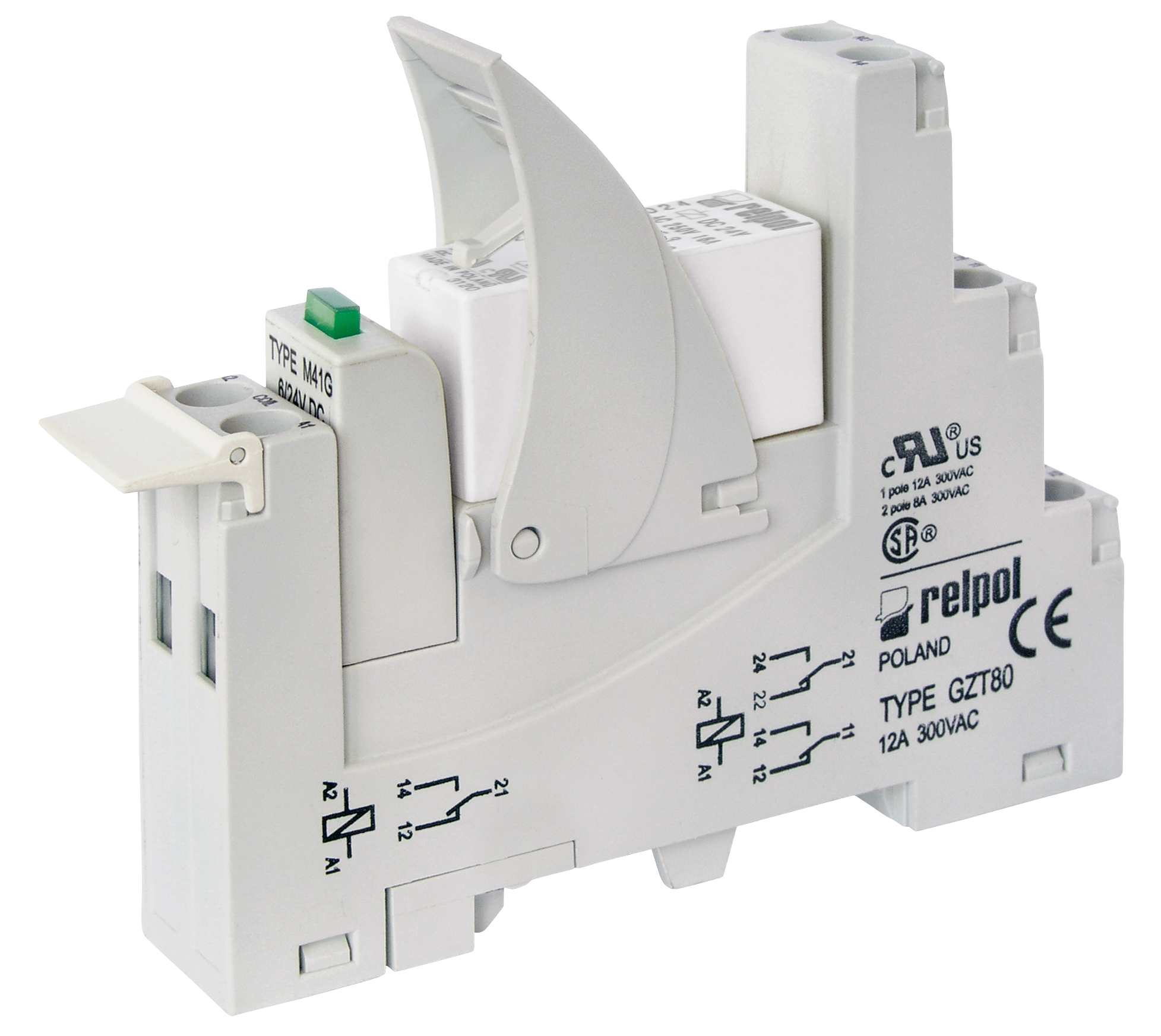

Przekaźnik interfejsowy: 1P - jeden zestyk przełączny. Szerokość 15,6 mm. Materiał styków AgNi. Separacja obwodów - wejście / wyjście. Wskaźnik LED zielony. Warystor V tłumiący przepięcia. Zaciski śrubowe. Wyjście: styki 1P - zaciski: 11/21-12/22-14/24; AC1 - 16 A / 250 V; DC1 - 16 A / 24 V. Obciążenia zestyku powyżej 12 A wymagają zmostkowania zaciskow śrubowych: 11 z 21, 12 z 22, 14 z 24. Wejście - zaciski: (+)A1 - (-)A2, napięcie zasilania Un - 230 V AC. Wymiary: 80 x 15,6 x 67 mm. Montaż na szynie 35 mm lub na płycie montażowej jednym wkrętem M3. Zestaw zawiera gniazdo GZT80 - IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 61 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Nominal current: | 16 A |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP20 |
| Width: | 15.6 mm |
| Height: | 67 mm |
| Depth: | 80 mm |
