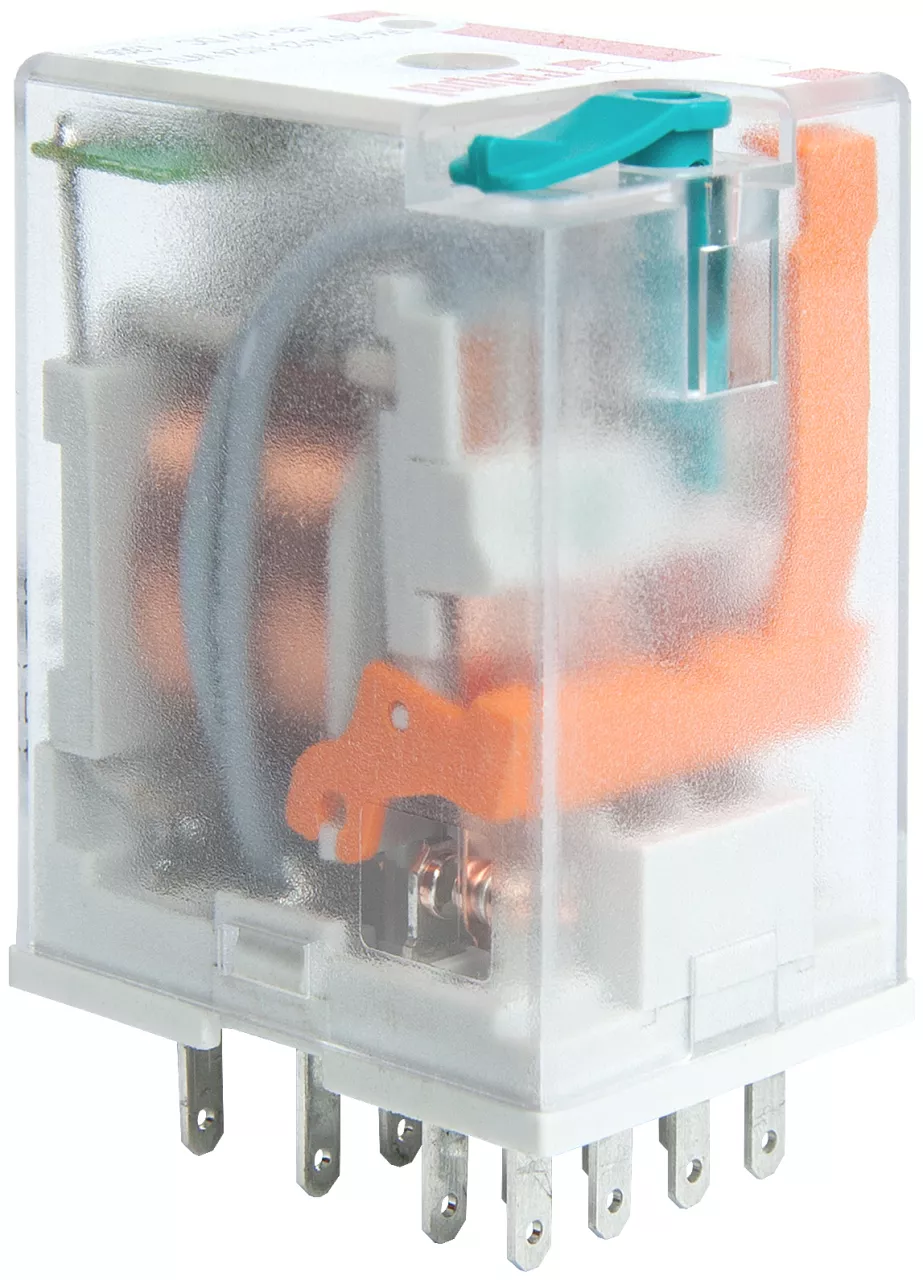

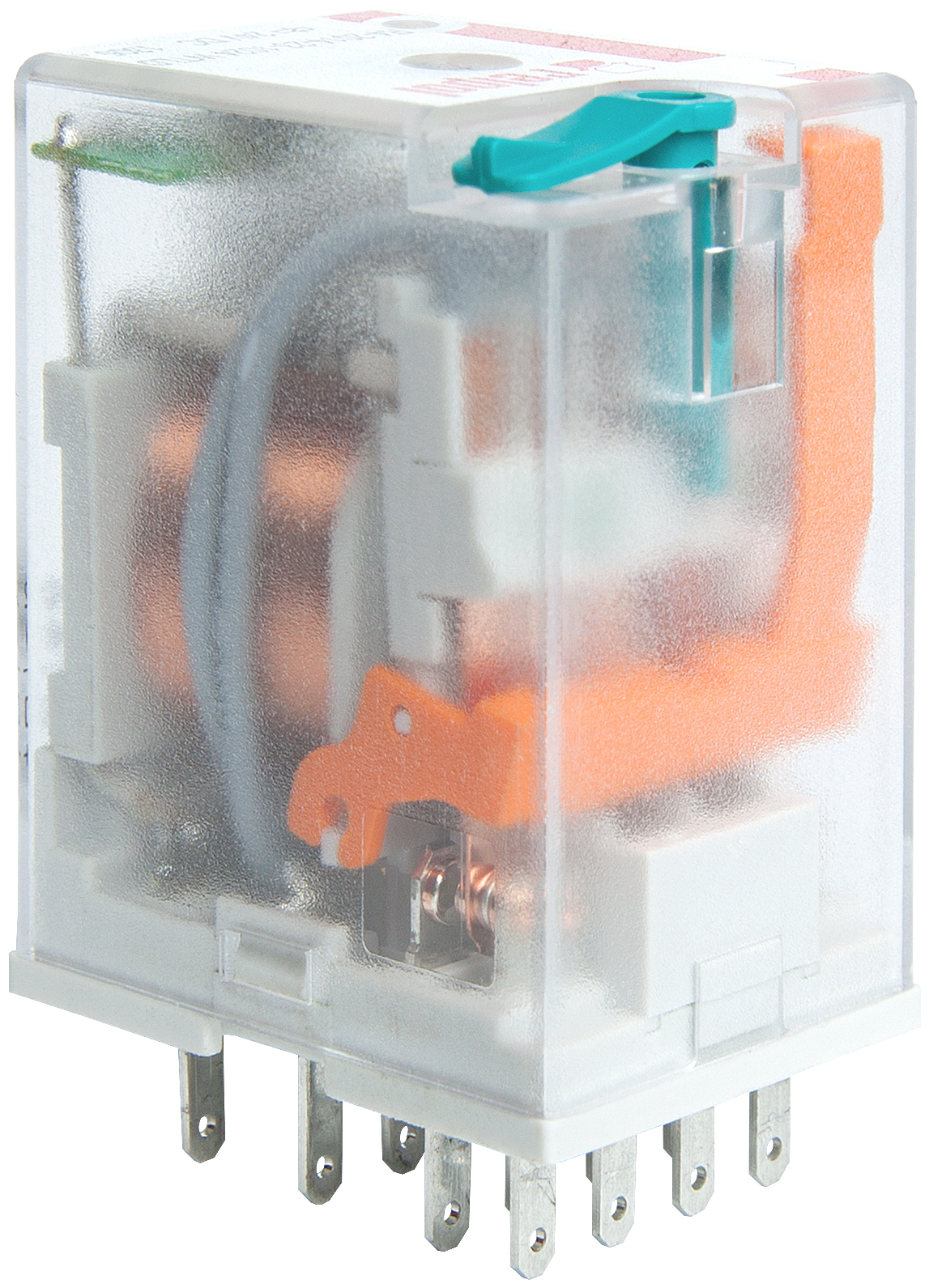

Przekaźnik przemysłowy R4N-2114-23-5230-WT
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 861595 |
Price unit | piece |
Catalog price | 59,70 zł (48,54 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Szerokość 21,2 mm. Wyjście: 4P - cztery zestyki przełączne - wyprowadzenia: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6 A / 250 V; DC1 - 6 A / 24 V. Wejście / cewka - wyprowadzenia: A1(13) - A2(14), napięcie zasilania Un - 230 V AC. Wskaźnik mechaniczny W i przycisk testujący T z funkcją blokowania. Wymiary: 27,5 x 21,2 x 35,6 mm. IP 40. Materiał styków: AgNi/Au złocenie magazynowe. Pasujące gniazda: GZT4, GZM4, GZ4, GS4, GZP4, SU4D, SU4L, G4.
Additional features:
Information | Value |
---|---|
Net weight: | 35 g |
ETIM class: | Switching relay |
Nominal current: | 7 A |
Width: | 21 mm |
Height: | 35.5 mm |
Depth: | 27.4 mm |
With detachable clamps: | no |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
Type of electric connection: | Plug-in connection |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage DC: | 0 - 0 V |
Material of contact surface: | Gold |
Degree of protection (IP): | IP40 |
Material contact: | Nickel |
Voltage type for actuating: | AC |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 4 |
