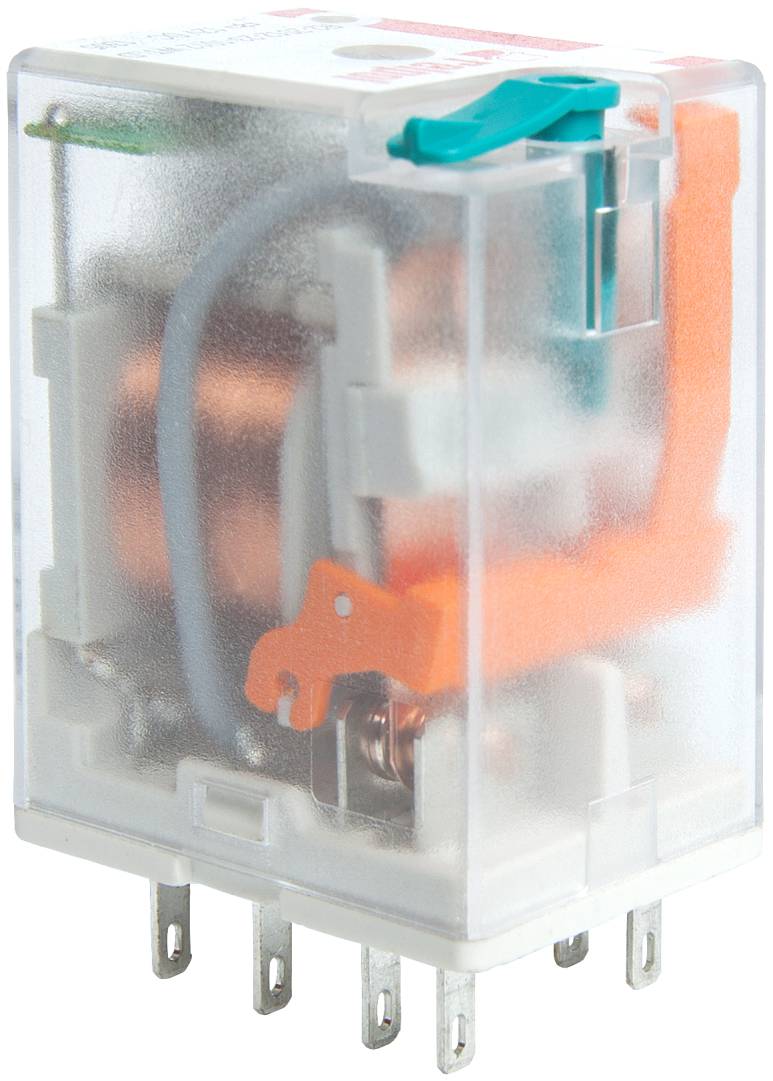

Przekaźnik przemysłowy R2N-2012-23-1048-WTL
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 861520 |
Price unit | piece |
Catalog price | 68,30 zł (55,53 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Szerokość 21,2 mm. Wyjście: 2P - dwa zestyki przełączne - wyprowadzenia: 11(9), 12(1), 14(5); 41(12), 42(4), 44(8); AC1 - 12 A / 250 V; DC1 - 12 A / 24 V. Wejście / cewka - wyprowadzenia: (+)A1(13) - (-)A2(14), napięcie zasilania Un - 48 V DC. Wskaźnik mechaniczny W, przycisk testujący T z funkcją blokowania, wskaźnik zadziałania dioda LED. Wymiary: 27,5 x 21,2 x 35,6 mm. IP 40. Materiał styków: AgNi. Pasujące gniazda: GZT2, GZM2, GZP2, SU4/2D, SU4/2L, G4/2.
Additional features:
Information | Value |
---|---|
Net weight: | 35 g |
ETIM class: | Switching relay |
Nominal current: | 12 A |
Width: | 21 mm |
Height: | 35.5 mm |
Depth: | 27.4 mm |
With detachable clamps: | no |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Type of switch contact: | Single contact |
Complete with socket: | no |
Type of electric connection: | Plug-in connection |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 48 - 48 V |
Material of contact surface: | Silver |
Degree of protection (IP): | IP40 |
With LED indication: | no |
Material contact: | Nickel |
Voltage type for actuating: | DC |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 2 |
