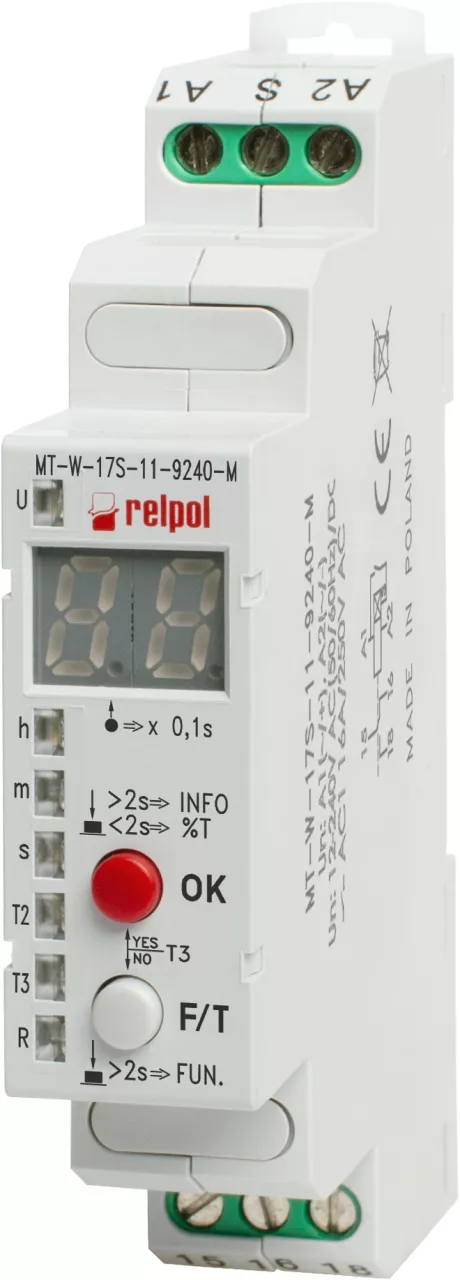

Przekaźnik czasowy MT-W-17S-11-9240-M
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 860470 |
| GTIN(EAN) | 5900005197918 |
| Price unit | piece |
| Catalog price | 322,86 zł (262,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Uniwersalny, wielofunkcyjny przekaźnik czasowy z niezależną regulaacją czasów T1, T2 oraz T3 (25 funkcji+ funkcje ON i OFF, szybka nastawa czasów z dokładnością do 0,1 s). Dwucyfrowy wyświetlacz LED. Programowanie tylko dwoma przyciskami. Napięcie zasilania - uniwersalne: 12...240VAC/DC 50/60 Hz
Additional features:
| Information | Value |
|---|---|
| Net weight: | 70 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function pulse shaping: | yes |
| Function flashing, starting with pause, fixed time: | yes |
| Function flashing, starting with pulse, fixed time: | yes |
| Clock function, starting with pause, variable: | yes |
| Clock function, starting with pulse, variable: | yes |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Pluggable on auxiliary contact block: | no |
| Rated control supply voltage AC 50 Hz: | 12 - 240 V |
| Rated control supply voltage AC 60 Hz: | 12 - 240 V |
| Rated control supply voltage DC: | 12 - 240 V |
| Voltage type for actuating: | AC/DC |
| Nominal current: | 10 A |
| Time range: | 0.1 - 359940 s |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 1 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, change-over contact: | 1 |
| Outputs, reversible delayed/undelayed: | no |
| With semiconductor output: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Width: | 17.5 mm |
| Height: | 90 mm |
| Depth: | 65.5 mm |
| Suitable for front mounting: | no |
