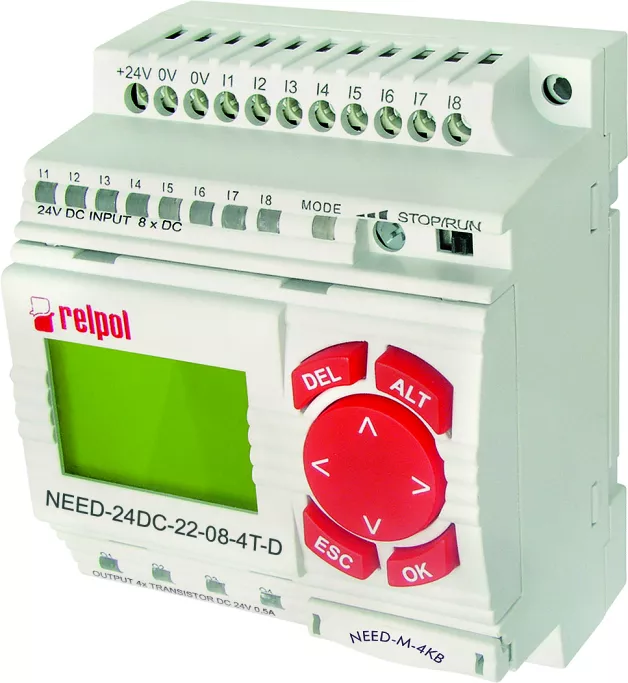

Przekaźnik programowalny NEED-24DC-22-08-4T-D
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 860263 |
| GTIN(EAN) | 5900005196447 |
| Price unit | piece |
| Catalog price | 1 552,63 zł (1 262,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik programowalny w wersji 22 z wyświetlaczem. Wejścia - 8, zaciski: I1-I2-I3-I4-I5-I6-I7-I8. Wyjścia - 4 wyjścia półprzewodnikowe - 0,5A/24V DC , numeracja wyjść: Q1-Q2-Q3-Q4. Programowanie: LAD, STL. Napięcie zasilające: 24 V DC - zaciski: (+)L - (-)N. Wskaźniki LED stanu przekaźnika oraz wejść / wyjść. Wymiary: 90 x 72 x 55 mm. Montaż na szynie 35 mm lub wkrętami do płyty. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 250 g |
| ETIM class: | PLC analogue/digital I/O-module |
| Supply voltage AC 50 Hz: | 230 - 230 V |
| Supply voltage AC 60 Hz: | 230 - 230 V |
| Supply voltage DC: | 24 - 24 V |
| Voltage type (supply voltage): | AC/DC |
| Number of digital inputs: | 6 |
| Number of digital outputs: | 0 |
| Number of analogue inputs: | 2 |
| Number of analogue outputs: | 4 |
| Digital in-/outputs, configurable: | no |
| Input current at signal 1: | 3.3 mA |
| Type of voltage (input voltage): | AC |
| Type of digital output: | Relay |
| Output current at digital output: | 10 A |
| Output voltage at digital output: | 10 - 250 V |
| Type of output voltage: | AC |
| Width: | 72 mm |
| Height: | 55 mm |
| Depth: | 90 mm |
