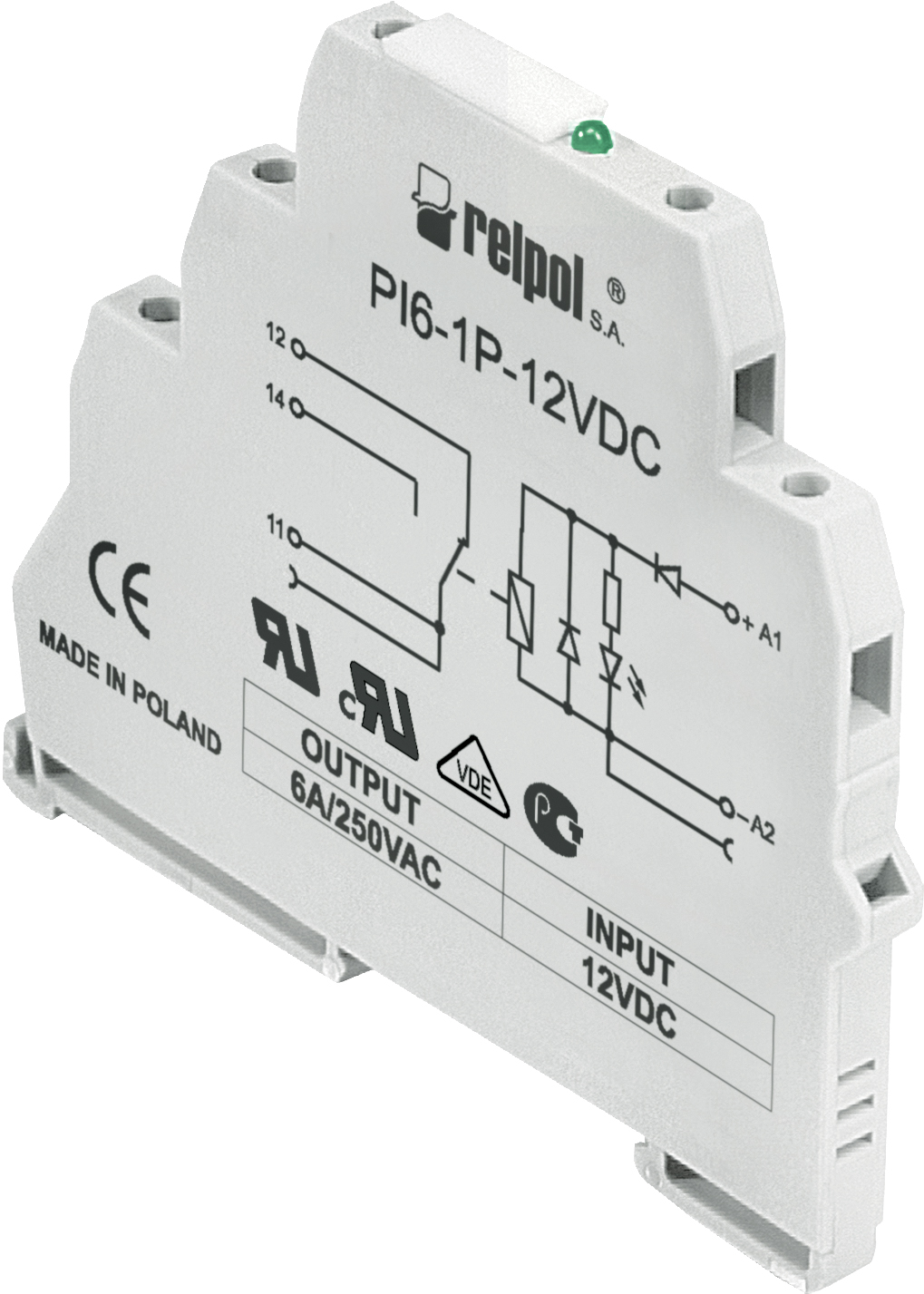

Przekaźnik interfejsowy PI6-1P-12VDC-01 (SZARE) (CE)
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 858554 |
| Price unit | piece |
| Catalog price | 94,01 zł (76,43 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik interfejsowy wąskoprofilowy: 1P - jeden zestyk przełączny, styki złocone. Szerokość 6,2 mm. Zaciski śrubowe. Wyjście (niewymienne): styki 1P - zaciski: 11-12-14; AC1 - 50 mA / 30 V; DC1 - 50 mA / 36 V. Wejście - zaciski: (+)A1 - (-)A2, napięcie zasilania Un - 12 V DC. Wymiary: 93,8 x 6,2 x 80 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 40 g |
| ETIM class: | Switching relay |
| With detachable clamps: | no |
| Nominal current: | 0.05 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 12 - 12 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP20 |
| Width: | 6.2 mm |
| Height: | 80 mm |
| Depth: | 93.8 mm |
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:09 |
| Files to download: |
