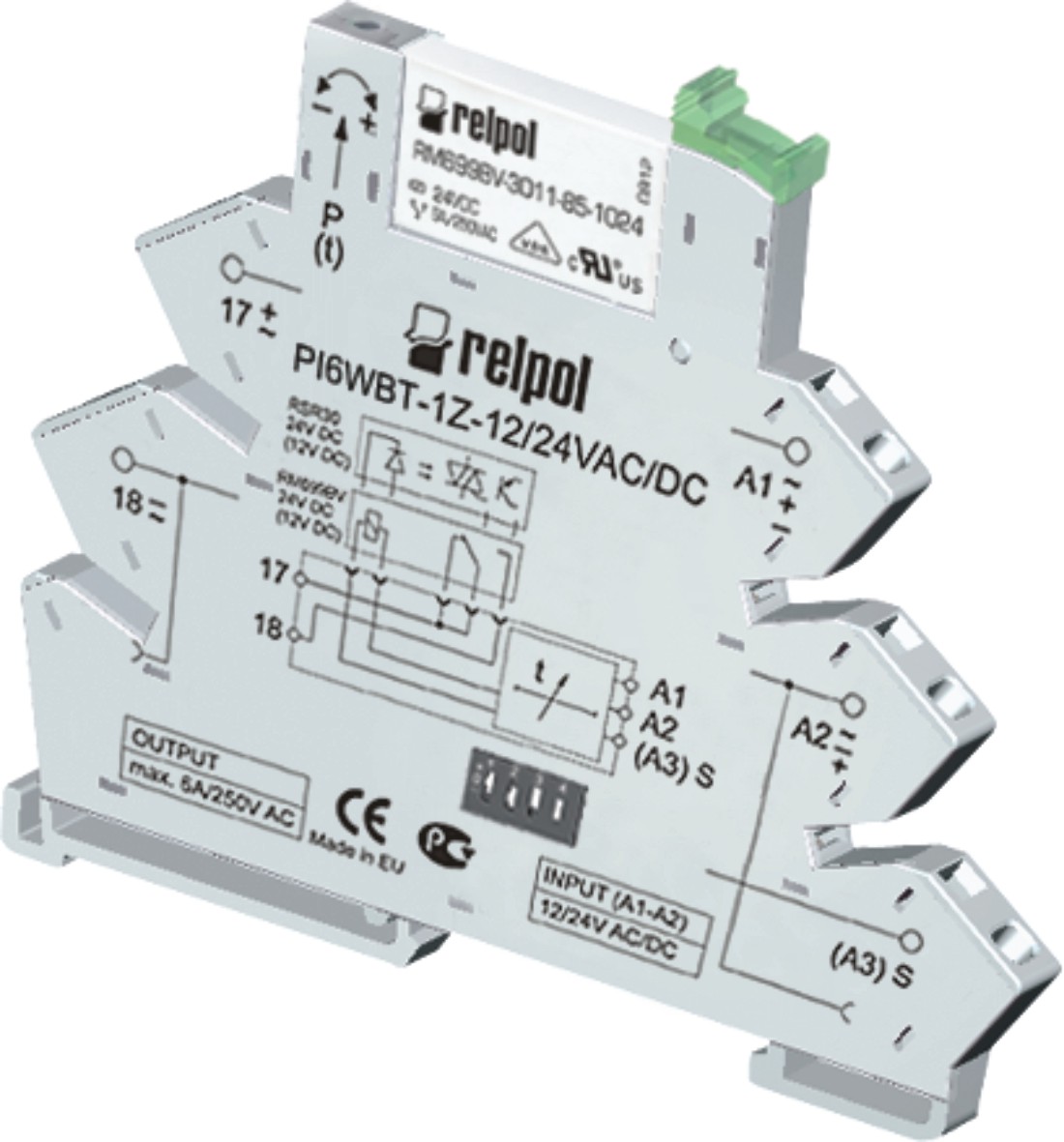

Przekaźnik czasowy PIR6WBT-1Z-24VAC/DC-C
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 857690 |
GTIN(EAN) | 5900005050510 |
Price unit | piece |
Catalog price | 240,83 zł (195,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy wąskoprofilowy, wielofunkcyjny: 1Z - jedno wyjście tranzystorowe 1 A. Szerokość 6,2 mm. Funkcje: E, Wu, Bi, Bp, R, Ws, Wa, Esa, B, OFF - stałe wyłączenie. Zaciski sprężynowe. Wyjście (wymienne - przekaźnik RSR30, oznaczenie w kodzie "C"): tranzystor 1Z - zaciski: (+)17 - (-)18, DC1 - 1 A / 48 V. Wejście - zaciski: A1 - A2 - dowolna biegunowość; zewnętrzny zestyk sterujący S - zaciski: S(A3) - A1, napięcie zasilania Un - 24 V AC/DC. Wymiary: 98,3 x 6,2 x 84,6 mm. Montaż na szynie 35 mm. Obudowa kompaktowa. IP 20.
Additional features:
Information | Value |
---|---|
Net weight: | 60 g |
ETIM class: | Timer relay |
Function delay-on energization: | yes |
Function delay on de-energization: | yes |
Function floating contact on energization: | yes |
Function floating contact on de-energization: | yes |
Function star-delta: | yes |
Function pulse shaping: | no |
Function flashing, starting with pause, fixed time: | yes |
Function flashing, starting with pulse, fixed time: | yes |
Clock function, starting with pause, variable: | yes |
Clock function, starting with pulse, variable: | yes |
Remote operation possible: | no |
Suitable as remote control: | no |
Pluggable on auxiliary contact block: | no |
Rated control supply voltage AC 50 Hz: | 24 - 24 V |
Rated control supply voltage AC 60 Hz: | 24 - 24 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | AC/DC |
Nominal current: | 1 A |
Time range: | 1 - 864000 s |
