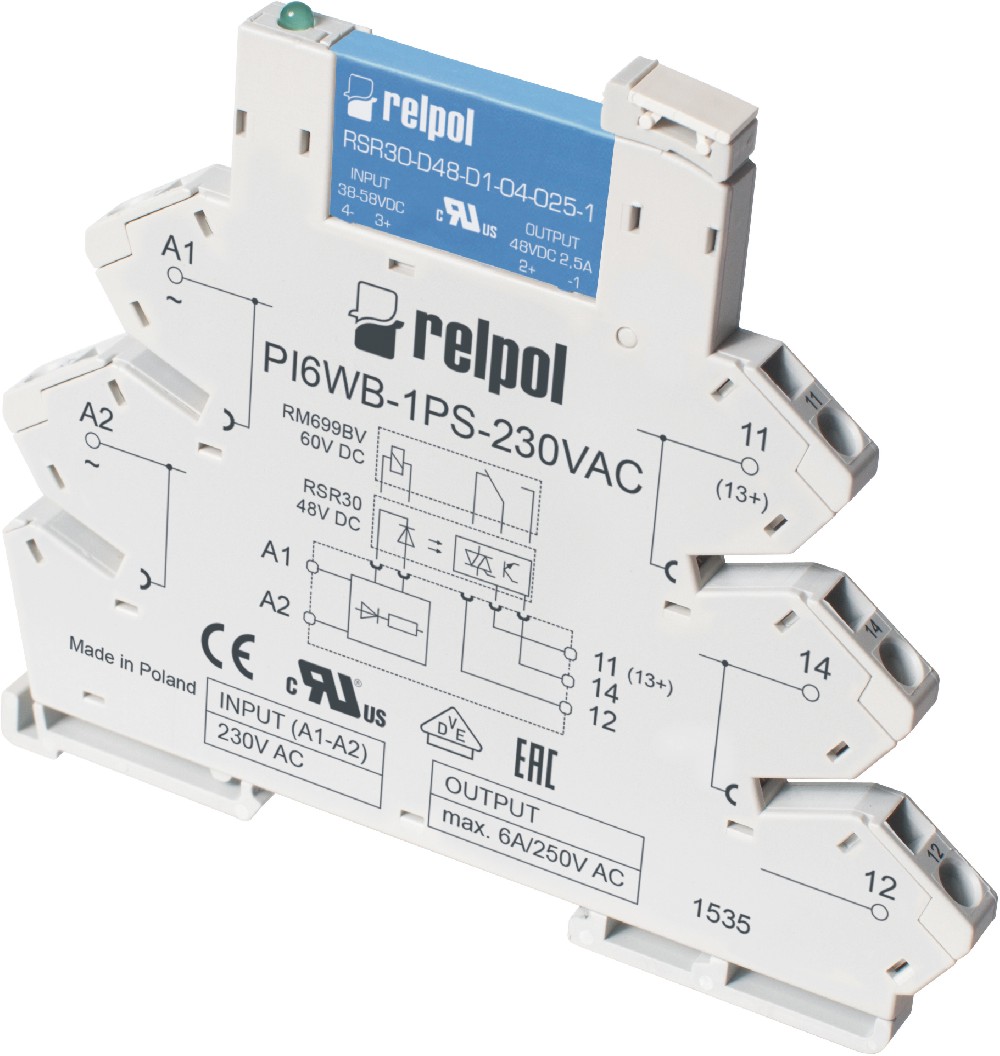

Przekaźnik interfejsowy PIR6WB-1PS-115VAC/DC-O
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 857531 |
| Price unit | piece |
| Catalog price | 137,88 zł (112,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik interfejsowy wąskoprofilowy: 1Z - jedno wyjście tranzystorowe 2 A. Szerokość 6,2 mm. Zaciski sprężynowe. Wyjście (wymienne - przekaźnik RSR30, oznaczenie w kodzie "O"): tranzystor 1Z - zaciski: (+)13 - (-)14; DC1 - 2 A / 24 V. Wejście - zaciski: A1 - A2 - dowolna biegunowość, napięcie zasilania Un - 115 V AC/DC. Wymiary: 98,3 x 6,2 x 84,6 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 55 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Spring clamp connection |
| With detachable clamps: | no |
| Nominal current: | 2 A |
| Rated control supply voltage AC 50 Hz: | 115 - 115 V |
| Rated control supply voltage AC 60 Hz: | 115 - 115 V |
| Rated control supply voltage DC: | 115 - 115 V |
| Voltage type for actuating: | AC/DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP20 |
| Width: | 6.2 mm |
| Height: | 84.6 mm |
| Depth: | 98.3 mm |
