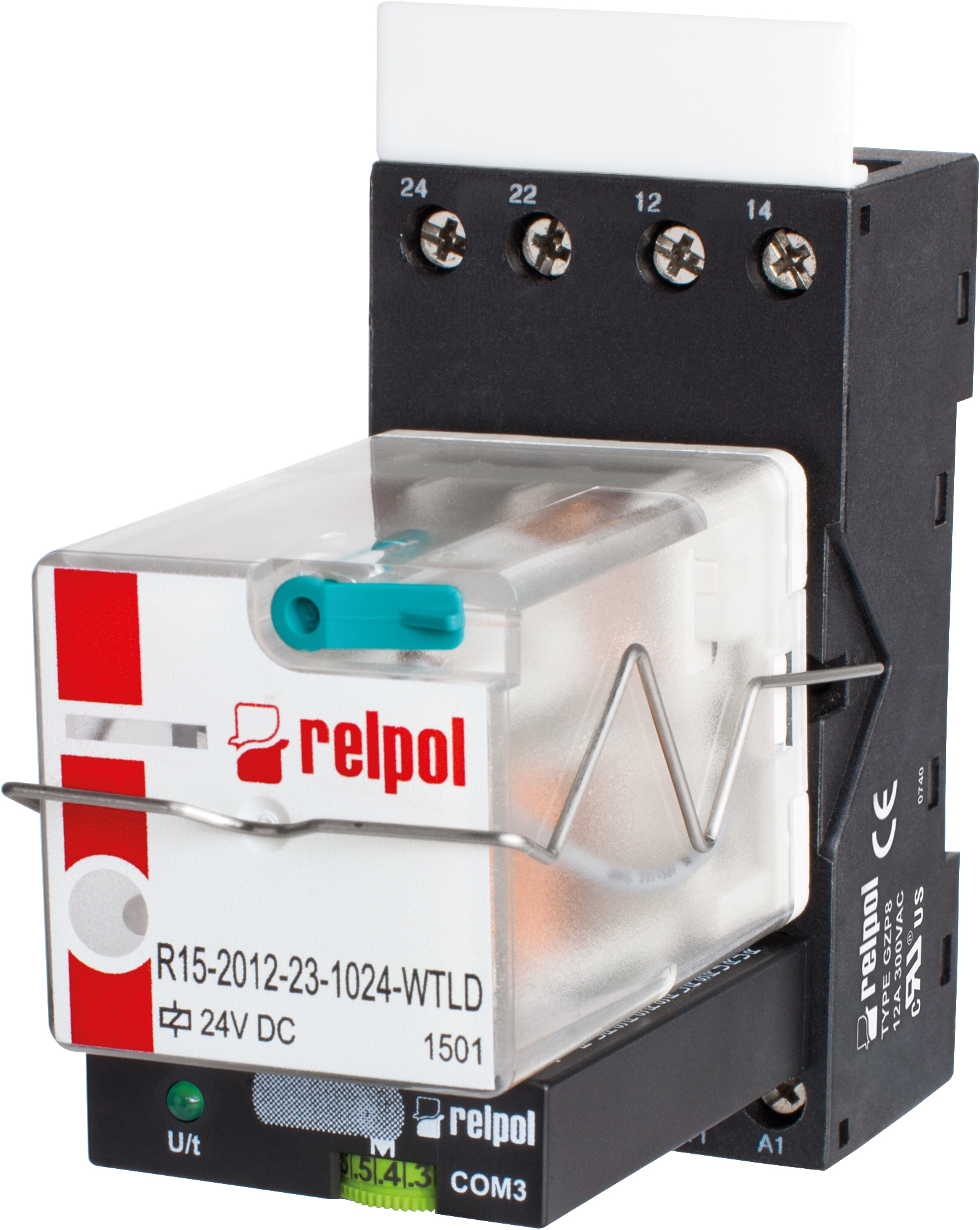

Przekaźnik czasowy PIR152-024DC-00T
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 855538 |
| GTIN(EAN) | 5900005165214 |
| Price unit | piece |
| Catalog price | 492,33 zł (400,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy przemysłowy, wielofunkcyjny: 2P - dwa zestyki przełączne. Funkcje: E, Wu, Bi, Bp, R, Ws, Wa, Es. Wejście - zaciski: (+)A1 - (-)A2; zewnętrzny zestyk sterujący S - zaciski: (+)A1 - B1, napięcie zasilania Un - 24 V DC. Wyjście: zestyki 2P - zaciski: 11-12-14, 21-22-24; AC1 - 10 A / 250 V, DC1 - 10 A / 24 V. Wymiary: 75 x 38 x 83,1 mm. Montaż na szynie 35 mm lub na płycie montażowej dwoma wkrętami M3. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 168 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function star-delta: | no |
| Function pulse shaping: | no |
| Function flashing, starting with pause, fixed time: | yes |
| Function flashing, starting with pulse, fixed time: | yes |
| Clock function, starting with pause, variable: | no |
| Clock function, starting with pulse, variable: | no |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Pluggable on auxiliary contact block: | no |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Nominal current: | 10 A |
| Time range: | 0 - 0 s |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| Outputs, reversible delayed/undelayed: | no |
| With semiconductor output: | no |
| Width: | 38.2 mm |
| Height: | 85.4 mm |
| Depth: | 73 mm |
