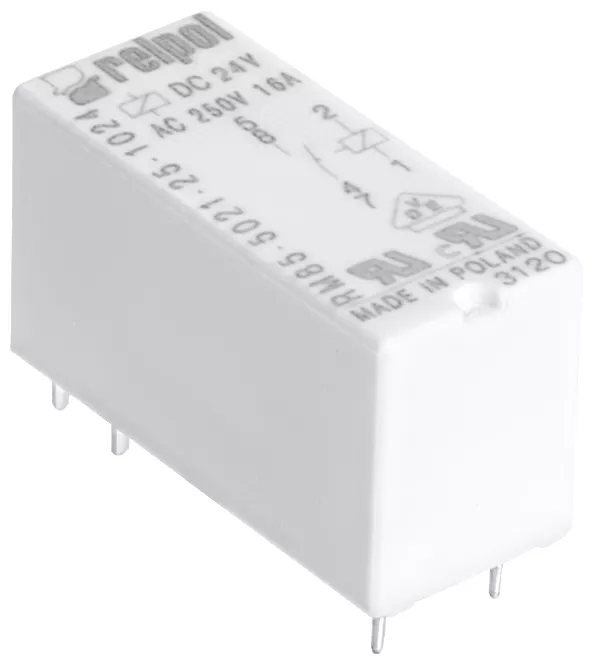

Przekaźnik miniaturowy RM85-5021-25-1060
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 855084 |
| Price unit | piece |
| Catalog price | 27,93 zł (22,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
RM85 inrush - przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego i gniazda wtykowego. Wysoka odporność na prąd udarowy - 80 A (20 ms). Raster 5 mm. Wysokość 15,7 mm. Wyjście: 1Z - jeden zestyk zwierny - wyprowadzenia: 11(7)/21(4)-14(8)/24(5); AC1 - 16 A / 250 V; DC1 - 16 A / 24 V. Wejście / cewka - wyprowadzenia: A1(1) - A2(2), napięcie zasilania Un - 60 V DC. Wymiary: 29 x 12,7 x 15,7 mm. Materiał styków: AgSnO2. IP 40. Opcje montażu gniazd: EC50, GD50, PW80 - do druku; GZP80 (push-in), GZ80, GZT80, GZM80, GZS80, GZF80 - montaż na szynie 35 mm lub przykręcane do płyty jedną śrubą M3. Uwaga: w przekaźniku są galwaniczne połączenia wyprowadzeń 11 z 21, 12 z 22 oraz 14 z 24.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 14 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Flat plug-in connection |
| With detachable clamps: | no |
| Nominal current: | 16 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 60 - 60 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP40 |
| Width: | 12.7 mm |
| Height: | 15.7 mm |
| Depth: | 29 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
