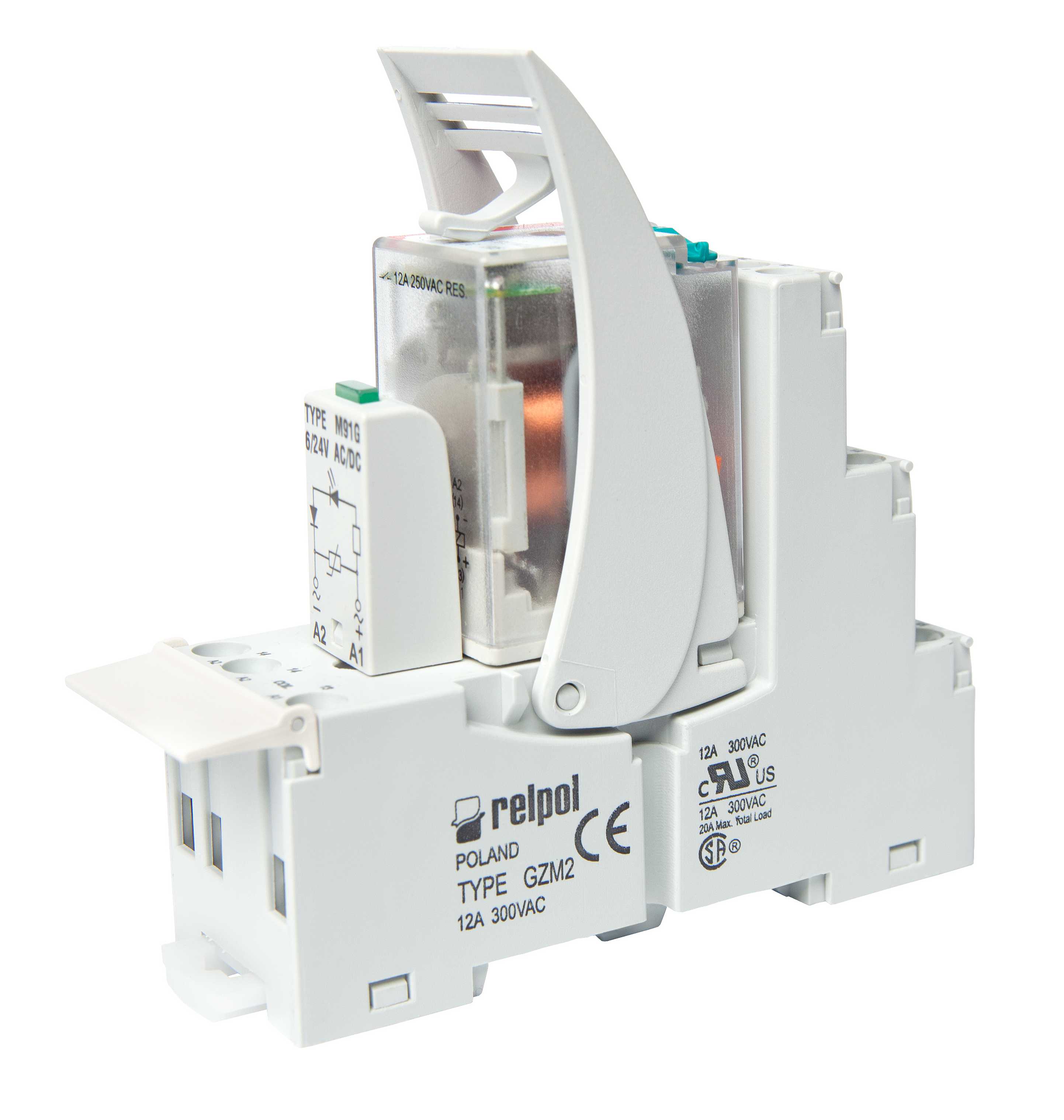

Przekaźnik interfejsowy PIR2-120AC-00LV
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 854799 |
| GTIN(EAN) | 5900005165351 |
| Price unit | piece |
| Catalog price | 101,48 zł (82,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik interfejsowy: 2P - dwa zestyki przełączne. Szerokość 27 mm. Separacja obwodów - wejście / wyjście. Wskaźnik LED zielony. Warystor V tłumiący przepięcia. Zaciski śrubowe. Wyjście: styki 2P - zaciski: 11(9)-12(1)-14(5); 41(12)-42(4)-44(8); AC1 - 12 A / 250 V; DC1 - 12 A / 24 V. Wejście - zaciski: (+)A1(13) - (-)A2(14), napięcie zasilania Un - 120 V AC. Wymiary: 75 x 27 x 82 mm. Montaż na szynie 35 mm lub na płycie montażowej dwoma wkrętami M3. Zestaw zawiera gniazdo GZM2 - IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 97 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Nominal current: | 12 A |
| Rated control supply voltage AC 50 Hz: | 120 - 120 V |
| Rated control supply voltage AC 60 Hz: | 120 - 120 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | yes |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP20 |
| Width: | 27 mm |
| Height: | 82 mm |
| Depth: | 75 mm |
