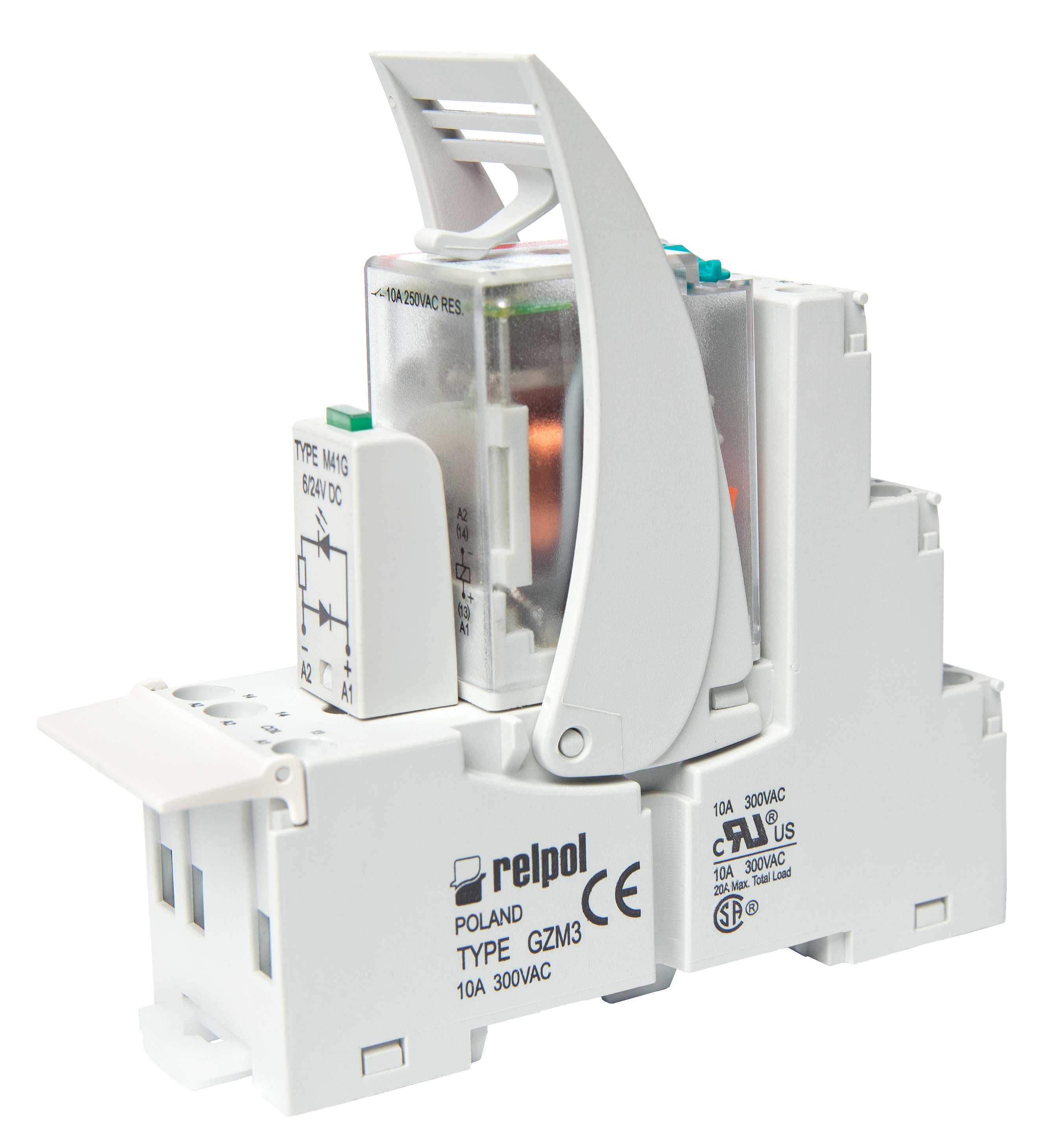

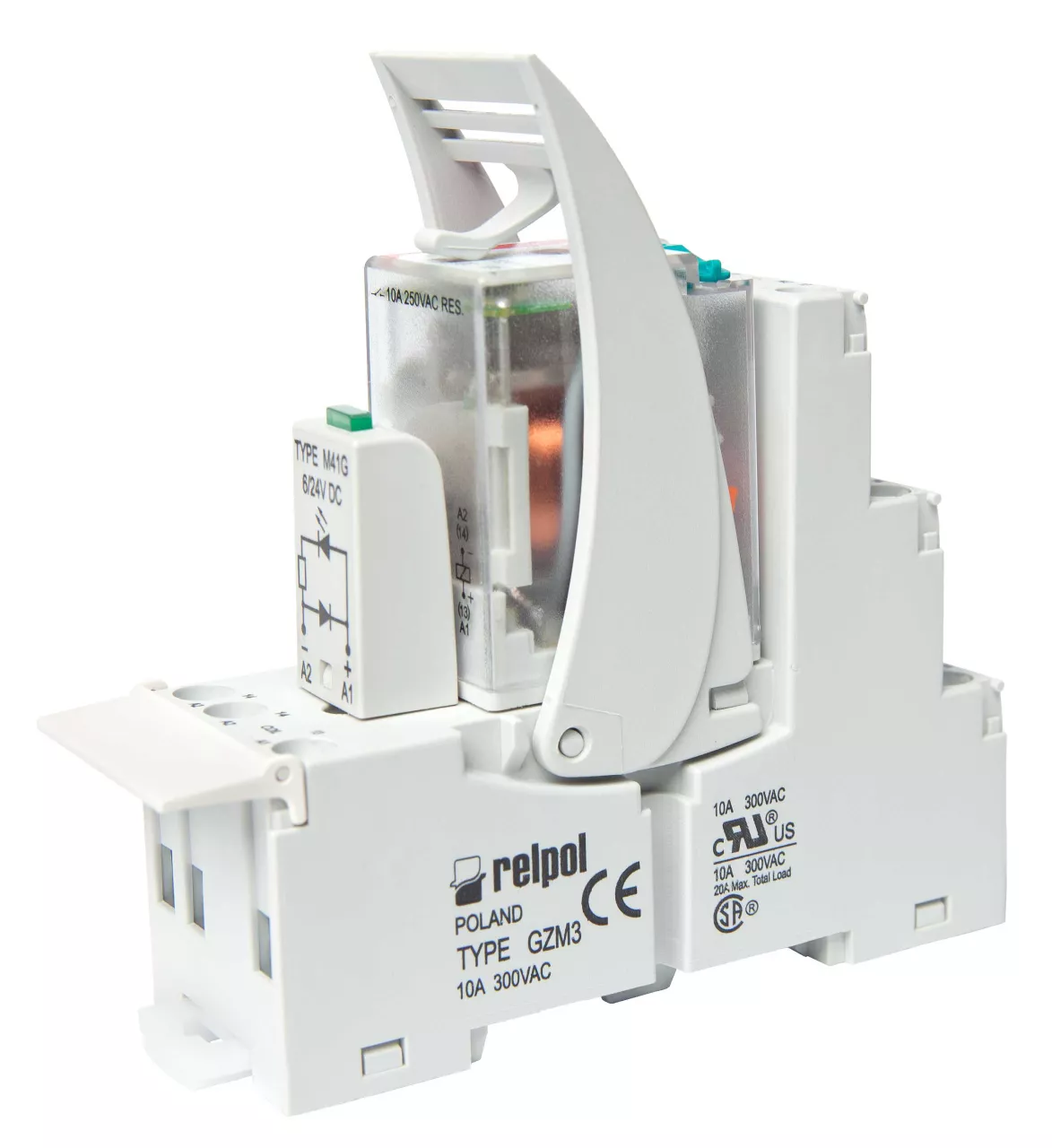

Przekaźnik interfejsowy PIR3-230AC-00LV
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 854793 |
GTIN(EAN) | 5900005127946 |
Price unit | piece |
Catalog price | 104,43 zł (84,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik interfejsowy: 3P - trzy zestyki przełączne. Szerokość 27 mm. Separacja obwodów - wejście / wyjście. Wskaźnik LED zielony. Warystor V tłumiący przepięcia. Zaciski śrubowe. Wyjście: styki 3P - zaciski: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście - zaciski: (+)A1(13) - (-)A2(14), napięcie zasilania Un - 230 V AC. Wymiary: 75 x 27 x 82 mm. Montaż na szynie 35 mm lub na płycie montażowej dwoma wkrętami M3. Zestaw zawiera gniazdo GZM3 - IP 20.
Additional features:
Information | Value |
---|---|
Net weight: | 105 g |
ETIM class: | Switching relay |
Type of electric connection: | Screw connection |
With detachable clamps: | no |
Nominal current: | 10 A |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 3 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | yes |
With LED indication: | no |
Material of contact surface: | Silver |
Material contact: | Nickel |
Degree of protection (IP): | IP20 |
Width: | 27 mm |
Height: | 82 mm |
Depth: | 75 mm |
