Przekaźnik Interfejsowy PI6-1P-12VDC-01
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 854596 |
| Price unit | piece |
| Catalog price | 94,01 zł (76,43 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

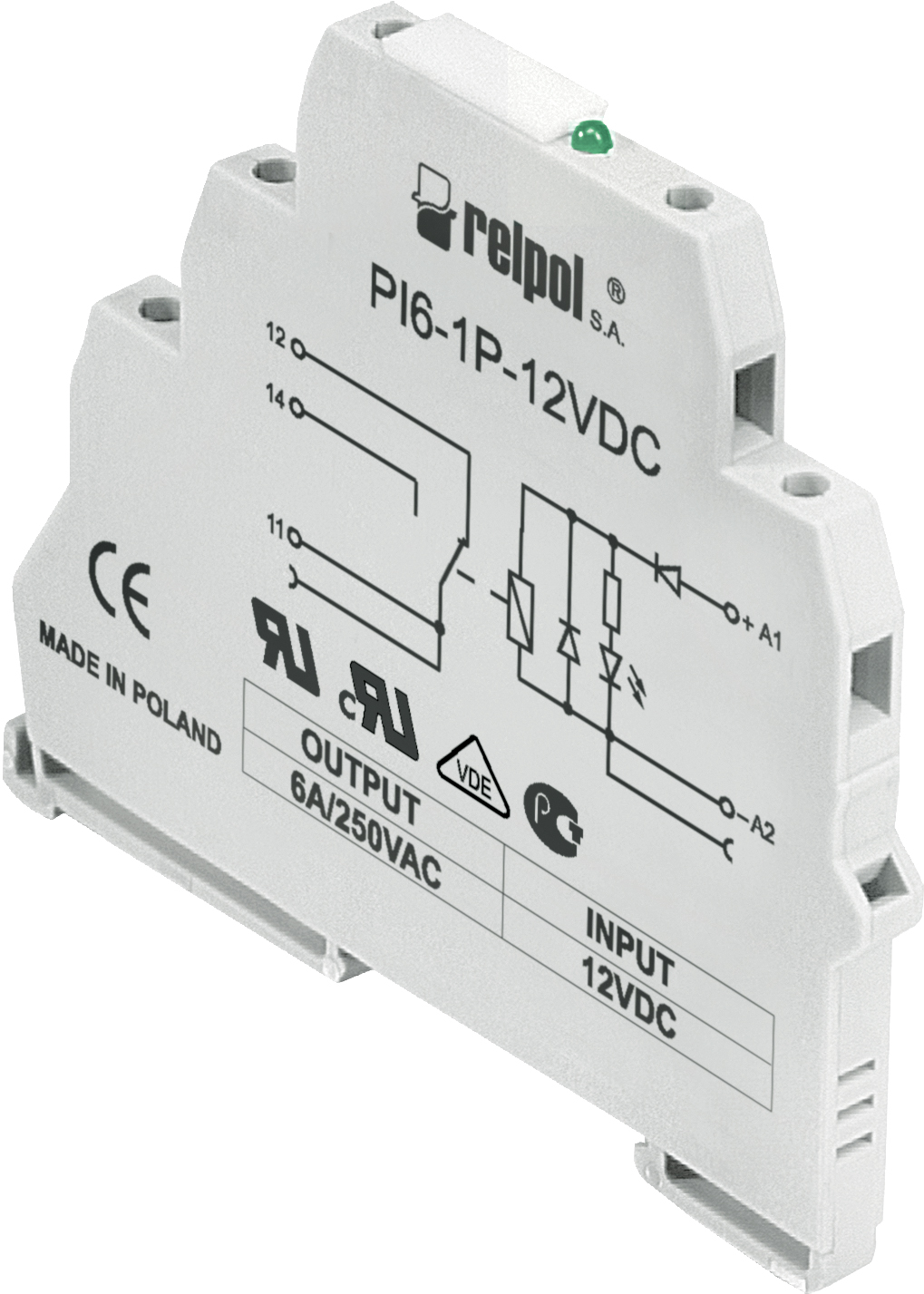

Przekaźnik interfejsowy wąskoprofilowy: 1P - jeden zestyk przełączny, styki złocone. Szerokość 6,2 mm. Zaciski śrubowe. Wyjście (niewymienne): styki 1P - zaciski: 11-12-14; AC1 - 50 mA / 30 V; DC1 - 50 mA / 36 V. Wejście - zaciski: (+)A1 - (-)A2, napięcie zasilania Un - 12 V DC. Wymiary: 93,8 x 6,2 x 80 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 40 g |
| ETIM class: | Switching relay |
| Complete with socket: | yes |
| With detachable clamps: | no |
| With LED indication: | no |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 12 - 12 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| Type of switch contact: | Single contact |
| With forced-guided contacts: | no |
| Material of contact surface: | Silver |
| Nominal current: | 0.05 A |
| Degree of protection (IP): | IP20 |
| Width: | 6.2 mm |
| Height: | 80 mm |
| Depth: | 93.8 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:08 |
| Files to download: |
