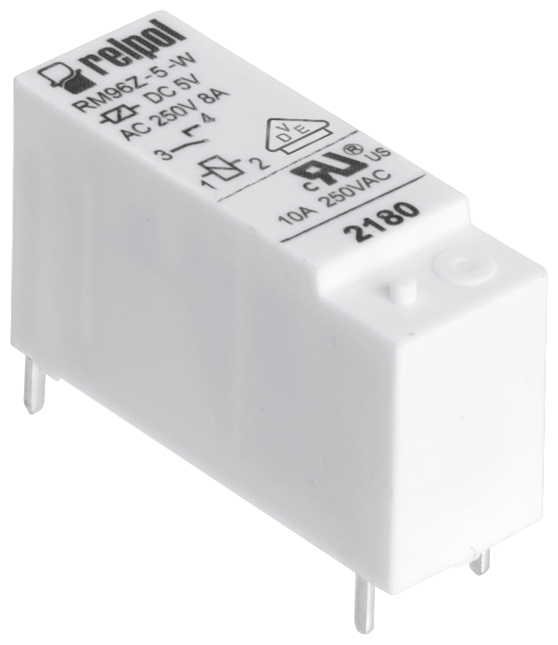

Przekaźnik miniaturowy RM96-3011-35-1005
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 852830 |
| Price unit | piece |
| Catalog price | 18,79 zł (15,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego i gniazda wtykowego. Wysokość 16,2 mm. Wyjście: 1P - jeden zestyk przełączny - wyprowadzenia: 11(4)-12(3)-14(5); AC1 - 8 A / 250 V; DC1 - 8 A / 24 V. Wejście / cewka - wyprowadzenia: A1(1) - A2(2), napięcie zasilania Un - 5 V DC. Wymiary: 28 x 10 x 16,2 mm. IP 67. Materiał styków: AgSnO2. Opcje montażu gniazd: ES32 - montaż na szynie 35 mm lub przykręcane do płyty jedną śrubą M3.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 11 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| With detachable clamps: | no |
| Nominal current: | 8 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 5 - 5 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP67 |
| Width: | 10 mm |
| Height: | 16.2 mm |
| Depth: | 30 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
