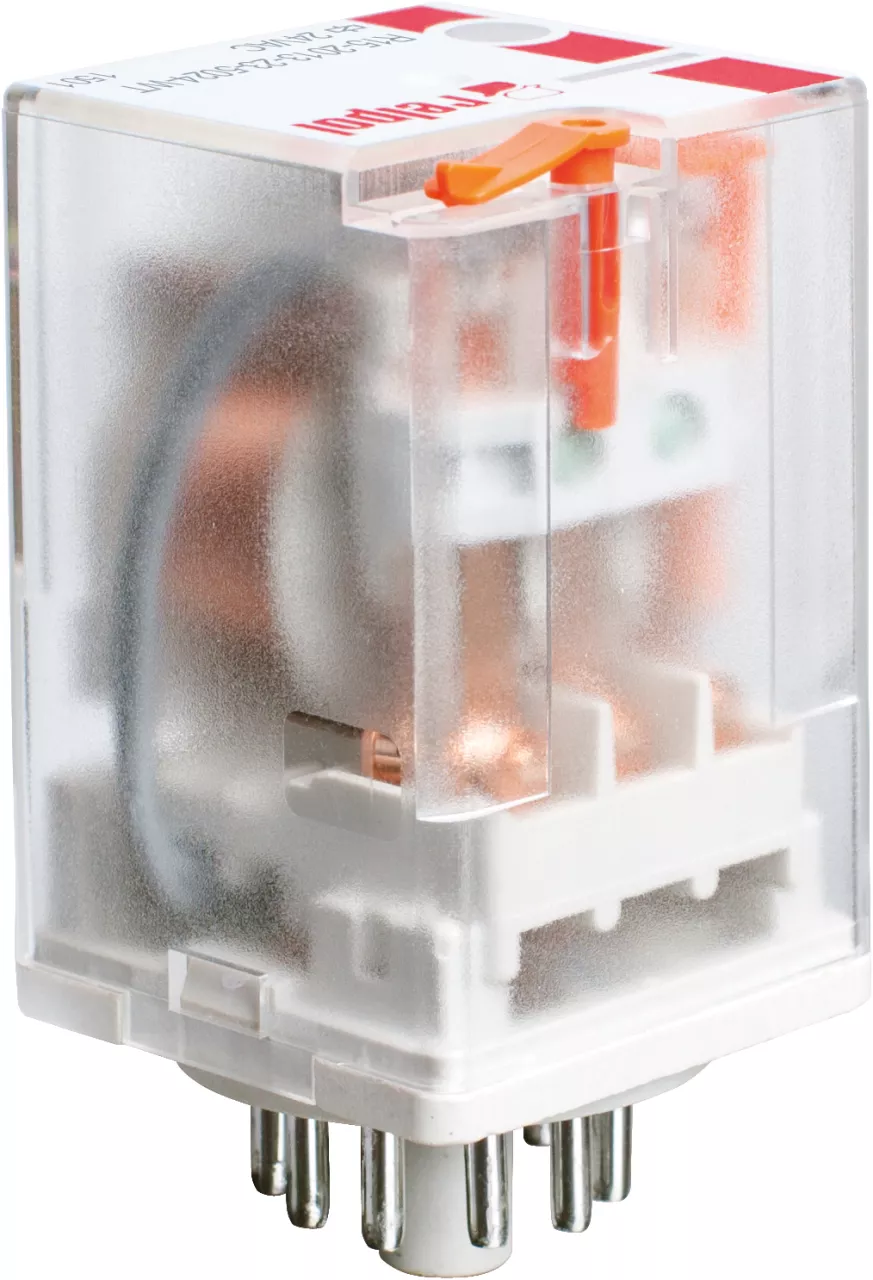

Przekaźnik przemysłowy R15-2313-23-5230-WTL
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 804985 |
Price unit | piece |
Catalog price | 140,31 zł (114,07 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Szerokość 35 mm. Wyjście: 3P - trzy zestyki przełączne - wyprowadzenia: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście / cewka - wyprowadzenia: A1(2) - A2(10), napięcie zasilania Un - 230 V AC. Wskaźnik zadziałania mechaniczny W, przycisk testujący T - z funkcją blokowania styków, wskaźnik zadziłania świetlny L (dioda LED).Wymiary: 35 x 35 x 54,4 mm. IP 40. Materiał styków: AgNi/Au. Do gniazd: PZ11, GZU 11, GZ11, GZP11, GOP11.
Additional features:
Information | Value |
---|---|
Net weight: | 83 g |
ETIM class: | Switching relay |
Type of electric connection: | Plug-in connection |
Complete with socket: | no |
With detachable clamps: | no |
With LED indication: | yes |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 3 |
Type of switch contact: | Single contact |
With forced-guided contacts: | no |
Material contact: | Silver nickel (AgNi) |
Nominal current: | 10 A |
Degree of protection (IP): | IP40 |
Width: | 35 mm |
Height: | 35 mm |
Depth: | 54.5 mm |
