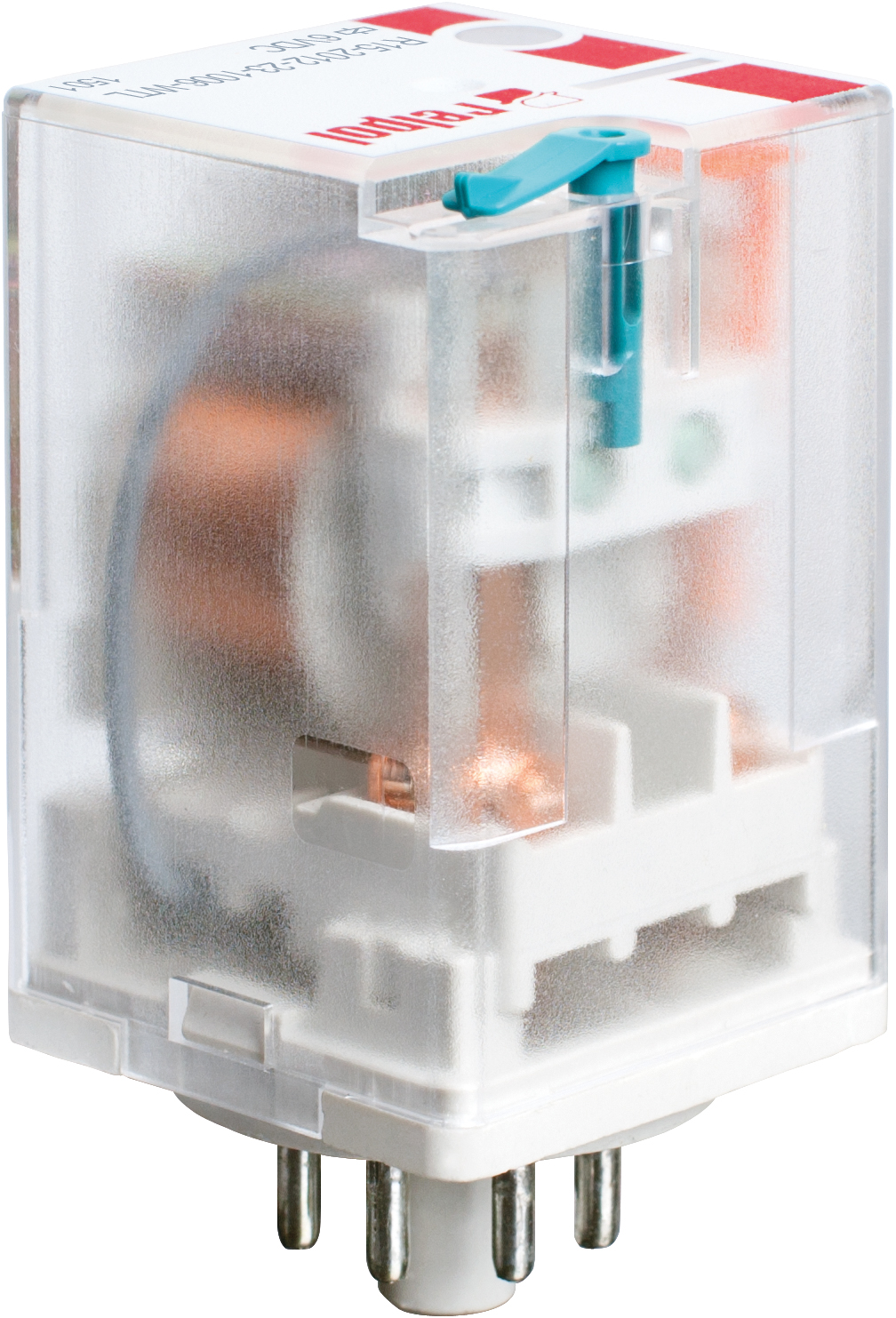

Przekaźnik przemysłowy R15-2013-23-1012-WTL
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 804596 |
Price unit | piece |
Catalog price | 93,25 zł (75,81 zł + 23% VAT) |
Sale price | from 29,38 zł / szt. (23,89 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Szerokość 35 mm. Wyjście: 3P - trzy zestyki przełączne - wyprowadzenia: 11(1),12(4), 14(3); 21(6), 22(5), 24(7); 31(11), 32(8), 34(9); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście / cewka - wyprowadzenia: A1(2) - A2(10), napięcie zasilania Un - 12 V DC. Wskaźnik zadziałania mechaniczny W, przycisk testujący T - z funkcją blokowania styków, wskaźnik LED czerwony L. Wymiary: 35 x 35 x 54,4 mm. IP 40. Materiał styków: AgNi. Do gniazd: PZ11, GZU 11, GZ11, GZP11, GOP11.
Additional features:
Information | Value |
---|---|
Net weight: | 83 g |
ETIM class: | Switching relay |
Type of electric connection: | Plug-in connection |
With detachable clamps: | no |
Nominal current: | 10 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 12 - 12 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 3 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
With LED indication: | no |
Material of contact surface: | Silver |
Material contact: | Nickel |
Degree of protection (IP): | IP40 |
Width: | 35 mm |
Height: | 35 mm |
Depth: | 54.4 mm |
