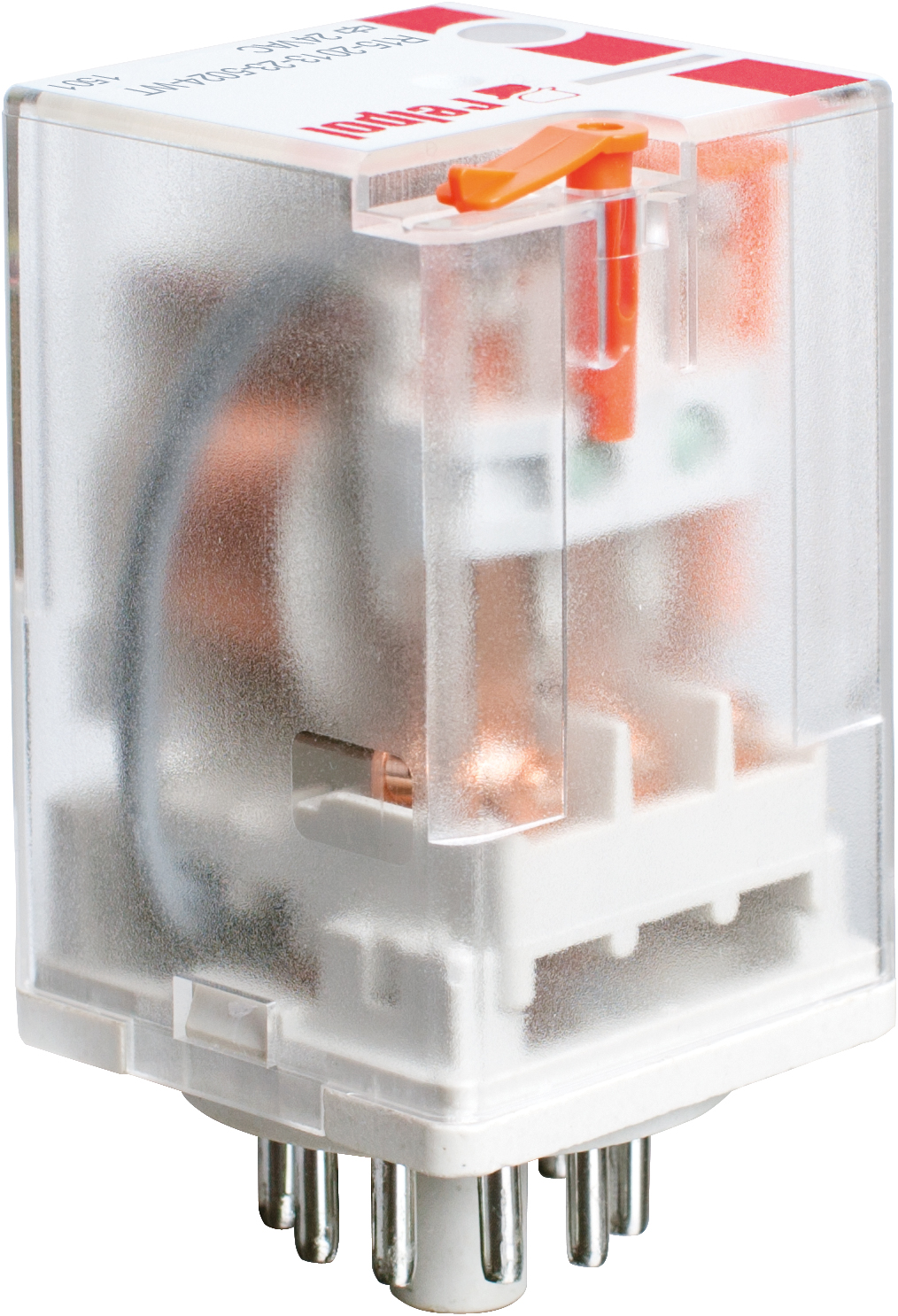

Przekaźnik przemysłowy R15-2013-23-5006-WT
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 803166 |
| Price unit | piece |
| Catalog price | 72,91 zł (59,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Szerokość 35 mm. Wyjście: 3P - trzy zestyki przełączne - wyprowadzenia: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście / cewka - wyprowadzenia: A1(2) - A2(10), napięcie zasilania Un - 6 V AC. Wskaźnik zadziałania mechaniczny W, przycisk testujący T - z funkcją blokowania styków. Wymiary: 35 x 35 x 54,4 mm. IP 40. Materiał styków: AgNi. Do gniazd: PZ11, GZU 11, GZ11, GZP11, GOP11.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 83 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Plug-in connection |
| With detachable clamps: | no |
| Nominal current: | 10 A |
| Rated control supply voltage AC 50 Hz: | 6 - 6 V |
| Rated control supply voltage AC 60 Hz: | 6 - 6 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Material contact: | Nickel |
| Degree of protection (IP): | IP40 |
| Width: | 35 mm |
| Height: | 35 mm |
| Depth: | 54.4 mm |
