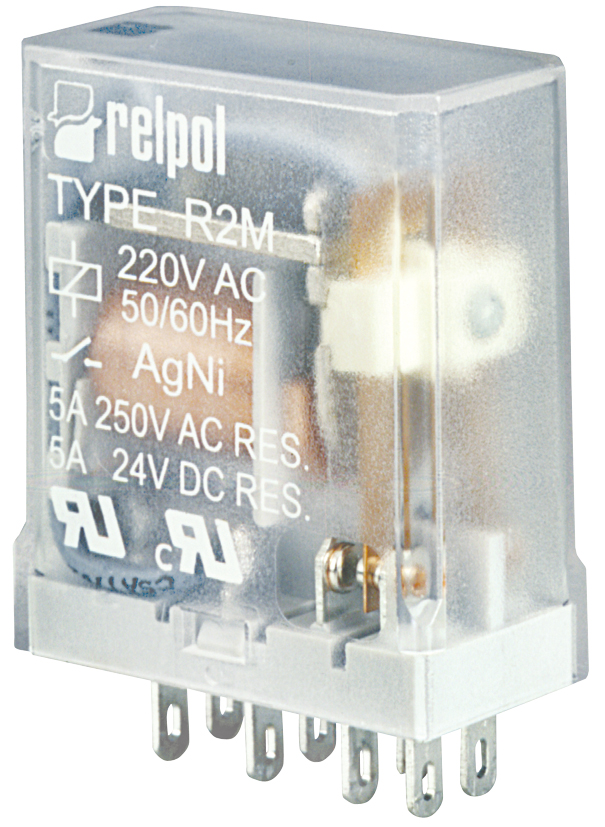

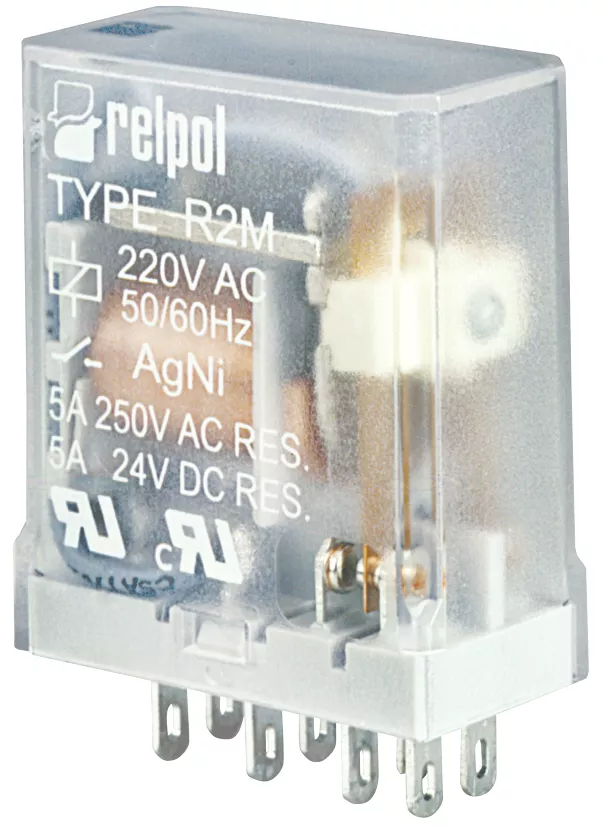

Przekaźnik przemysłowy R2M-3012-23-1024
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 617164 |
Price unit | piece |
Catalog price | 54,12 zł (44,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Wyjście: 2P - dwa zestyki przełączne - wyprowadzenia: 11(9)-12(1)-14(5); 21(12)-22(4)-24(8); AC1 - 5 A / 250 V; DC1 - 5 A / 24 V. Wejście / cewka - wyprowadzenia: A1(13) - A2(14), napięcie zasilania Un - 24 V DC. Wymiary: 27,5 x 14 x 32,9 mm. IP 40. Materiał styków: AgSnO2. Pasujące gniazda: GZ2, S2M, G2M.
Additional features:
Information | Value |
---|---|
Net weight: | 22 g |
ETIM class: | Switching relay |
Type of electric connection: | Plug-in connection |
With detachable clamps: | no |
Nominal current: | 5 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 2 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
With LED indication: | no |
Material of contact surface: | Gold |
Degree of protection (IP): | IP40 |
Width: | 14 mm |
Height: | 27.5 mm |
Depth: | 32.9 mm |
