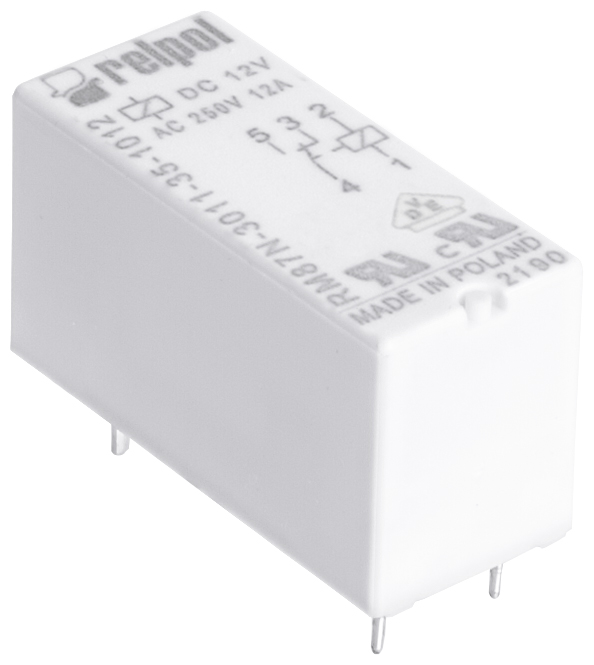

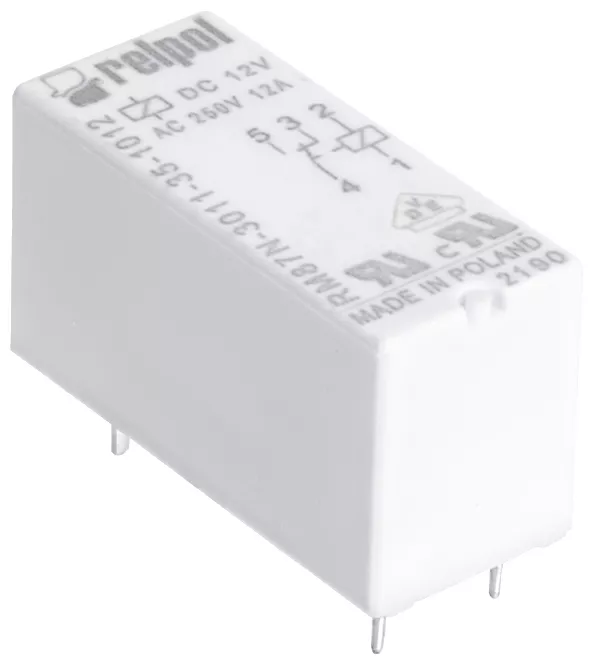

Przekaźnik miniaturowy RM87N-2011-25-1024
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 600189 |
Price unit | piece |
Catalog price | 19,15 zł (15,57 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego i gniazda wtykowego. Raster 3,5 mm. Wysokość 15,7 mm. Wyjście: 1P - jeden zestyk przełączny - wyprowadzenia: 11(4)-12(3)-14(5); AC1 - 12 A / 250 V; DC1 - 12 A / 24 V. Wejście / cewka - wyprowadzenia: A1(1) - A2(2), napięcie zasilania Un - 24 V DC. Wymiary: 28 x 12,7 x 15,7 mm. Materiał styków: AgNi. IP 40. Opcje montażu gniazd: EC35, GD35 - do druku; GZP80 (push-in) GZT92, GZM92, GZS92 - montaż na szynie 35 mm lub przykręcane do płyty jedną śrubą M3.
Additional features:
Information | Value |
---|---|
Net weight: | 14 g |
ETIM class: | Switching relay |
Type of electric connection: | PCB connection |
With detachable clamps: | no |
Nominal current: | 12 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 1 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
With LED indication: | no |
Material of contact surface: | Silver |
Degree of protection (IP): | IP40 |
Width: | 12.7 mm |
Height: | 15.7 mm |
Depth: | 29 mm |
Material contact: | Silver nickel (AgNi) |
