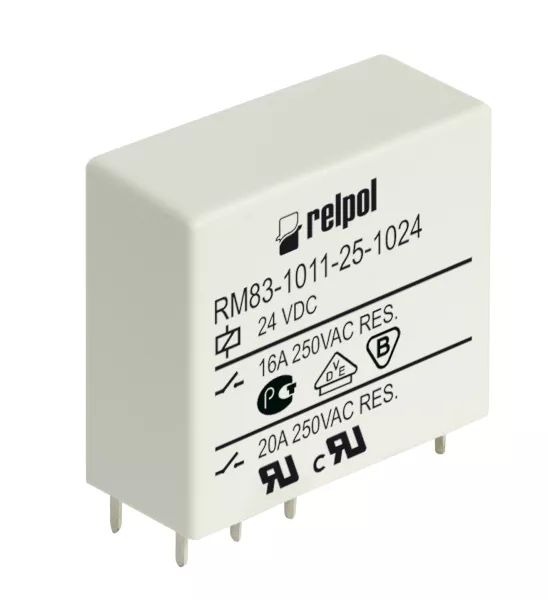

RM83-1011-25-1024 Przekaźnik miniaturowy
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 440504 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 18,97 zł / szt. (15,42 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego i gniazda wtykowego. Raster 5 mm. Wysokość 25,5 mm. Wyjście: 1P - jeden zestyk przełączny - wyprowadzenia: 11(7)/21(4)-12(6)/22(3)-14(8)/24(5); AC1 - 16 A / 250 V; DC1 - 16 A / 24 V. Wejście / cewka - wyprowadzenia: A1(1) - A2(2), napięcie zasilania Un - 24 V DC. Wymiary: 29,5 x 13,1 x 25,5 mm. Materiał styków: AgCdO. IP 40. Opcje montażu gniazd: EC50,GD50, PW80 - do druku. Uwaga: w przekaźniku są galwaniczne połączenia wyprowadzeń 11 z 21, 12 z 22 oraz 14 z 24.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 18 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| Degree of protection (IP): | IP40 |
| Width: | 13.1 mm |
| Height: | 25.1 mm |
| Depth: | 29.2 mm |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
MEGA O/Krosno
Krosno, Krakowska 179
Krosno, Krakowska 179
Distance:
4 sztuki
18,97 zł/szt.
Buy / order
Wholesaler
Address
Distance
Available
Actions
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-02-03 07:33:09 |
| Files to download: | |
| External links: |
