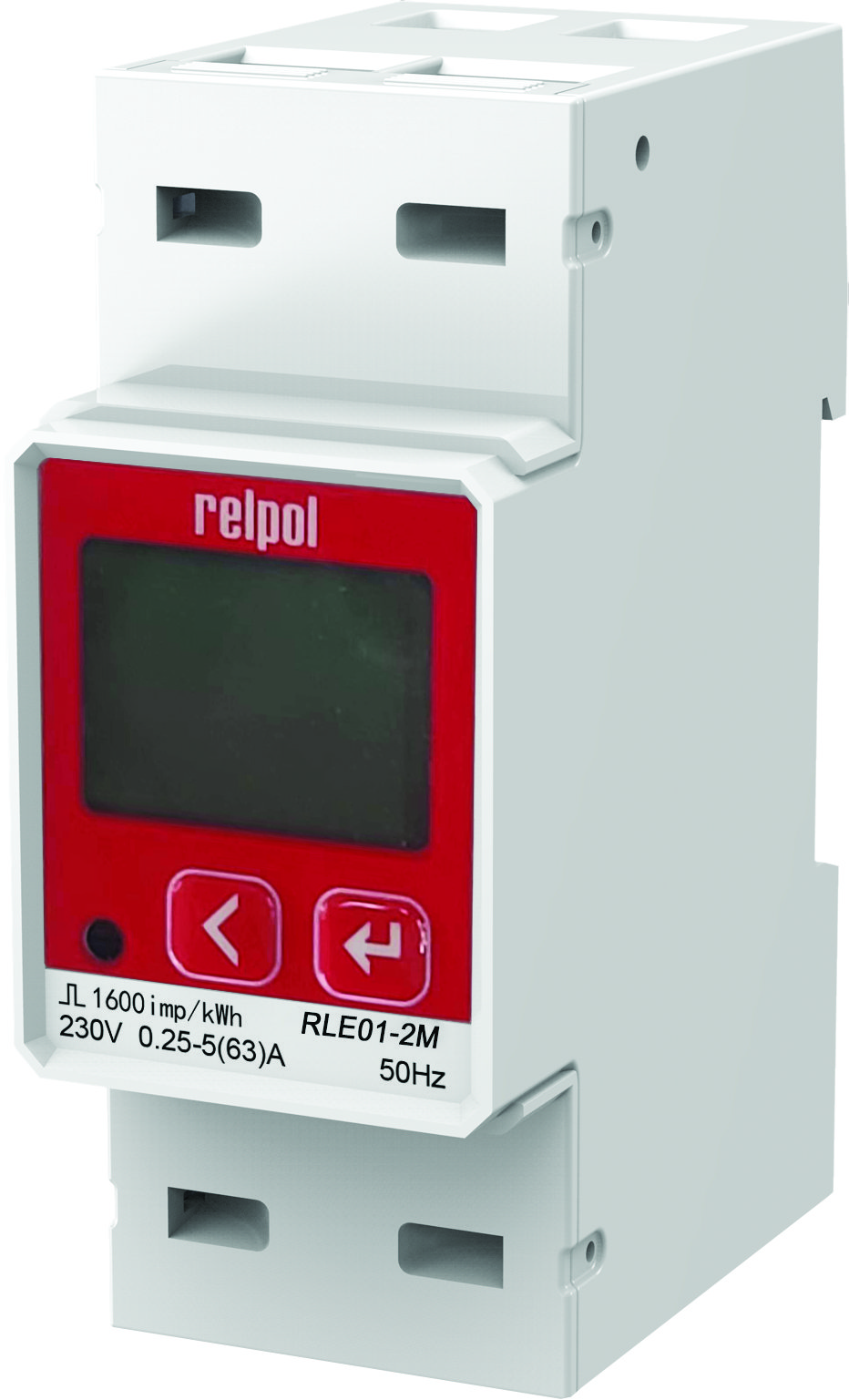

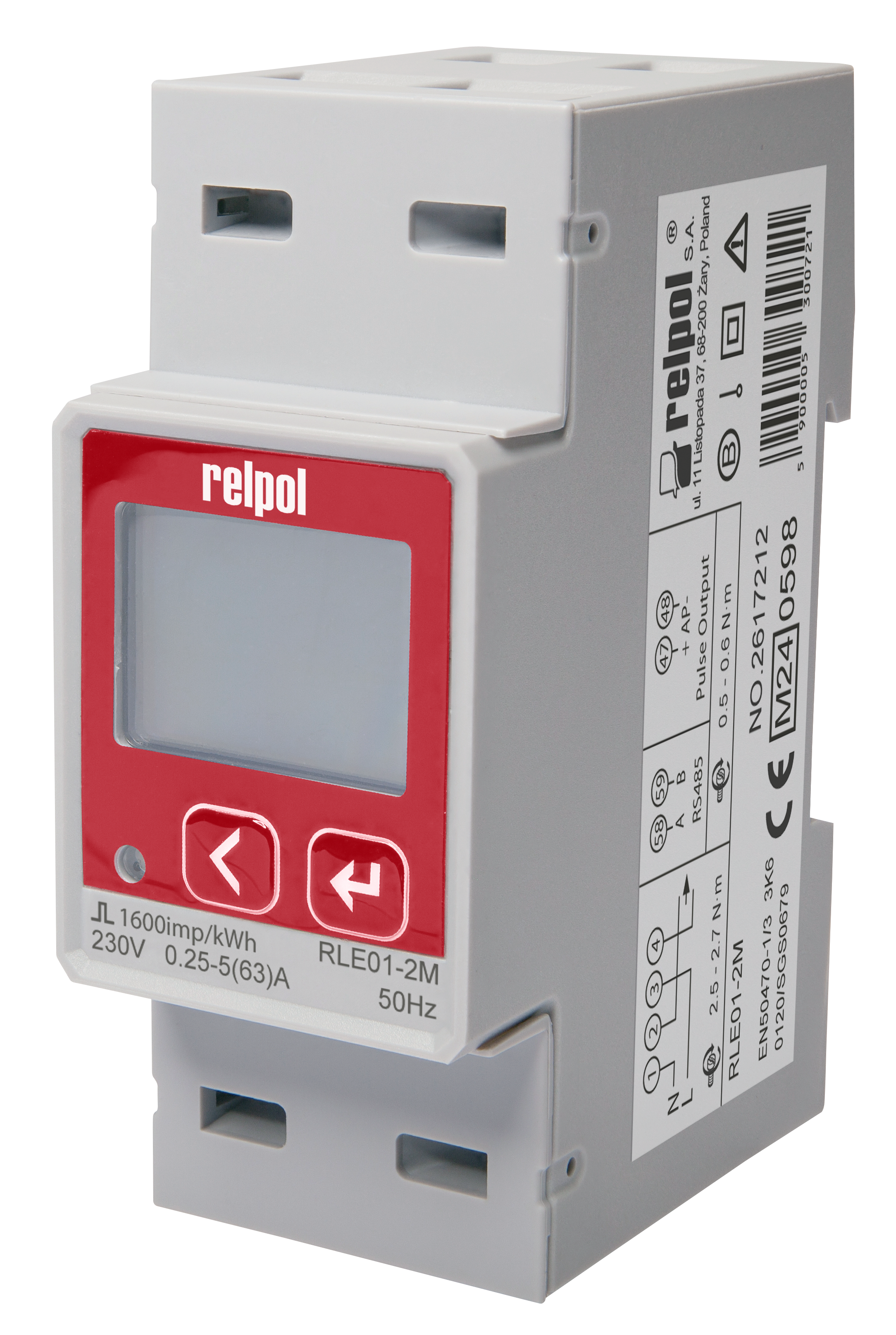

Licznik energii RLE01-2M
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2617212 |
| GTIN(EAN) | 5900005300721 |
| Price unit | piece |
| Catalog price | 410,87 zł (334,04 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MID,CE Licznik zużycia energii elektrycznej model cyfrowy 1-o fazowy z podłączeniem bezpośrednim lub pośrednim (63A) 1P2W, komunikacja RS485, ModBus, czterokwadrantowy dwukierunkowy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 270 g |
| ETIM class: | Kilowatt-hour meter |
| Type of meter: | Electronic |
| Nominal current (In): | 1.5 A |
| Max. current (Imax): | 63 A |
| Nominal voltage (Un) N-L: | 230 - 230 V |
| Frequency: | 50 - 60 Hz |
| Accuracy class: | B |
| Pole type: | Single phase |
| Model: | Direct measurement |
| Energy type: | Effective power and blind power |
| Suitable for: | Purchase/supply |
| Tariff type: | Multi-tariff |
| Tariff control: | Internal |
| Measurement type load profile: | yes |
| Escapement mechanism: | yes |
| Calibrated: | yes |
| Approval: | Measuring Instruments Directive |
| Pulse output: | Optical |
| Type of indication: | Digital |
| Mounting method: | DRA (DIN-rail adapter) |
| Width in number of modular spacings: | 1 |
| Width: | 36 mm |
| Depth: | 90 mm |
| Height: | 63 mm |
| Type of interface: | RS-485 |
| With lock code: | yes |
| Degree of protection (IP): | IP54 |
