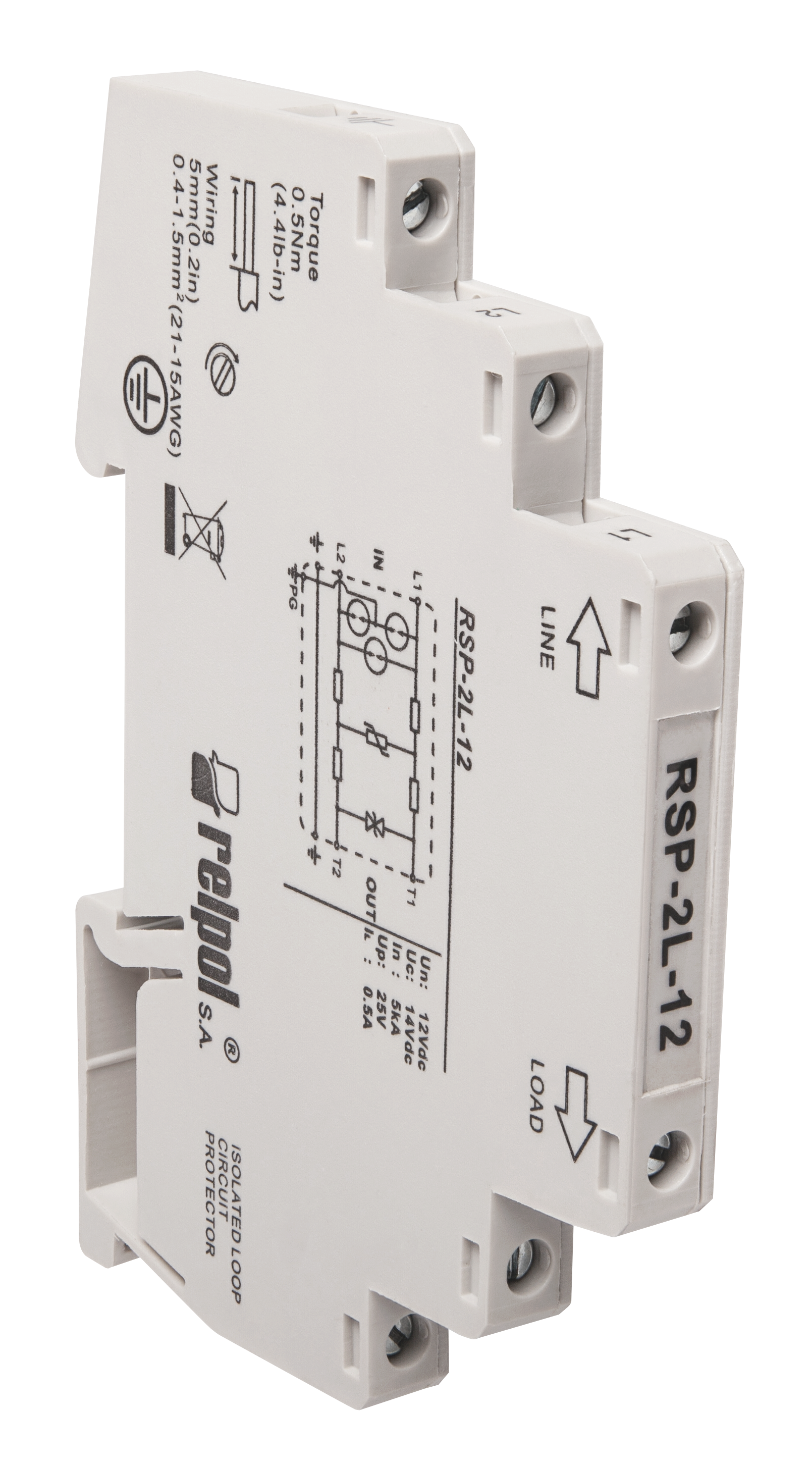

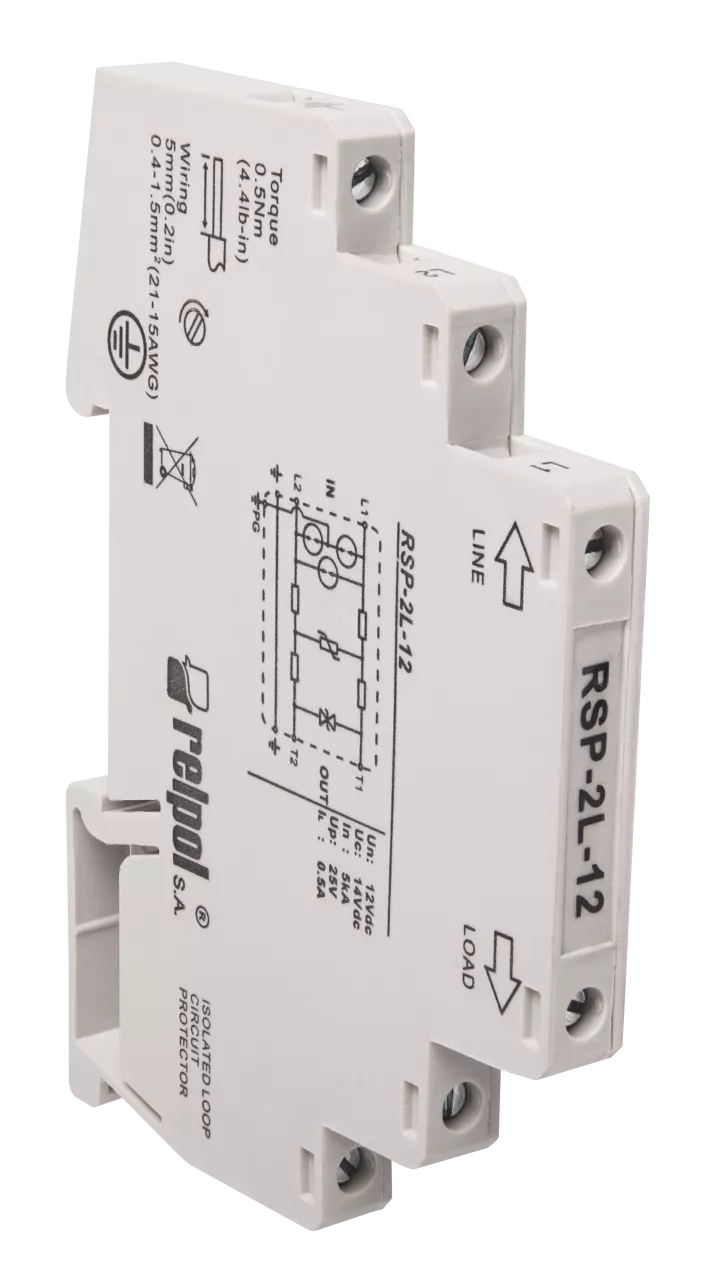

Ogranicznik sygnałowe RSP-2L-12
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2617111 |
| GTIN(EAN) | 5900005294815 |
| Price unit | piece |
| Catalog price | 336,39 zł (273,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ogranicznik przepięć DC dla napięć 12VDC, 2 liniowy
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Lightning current arrester for power supply systems |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Lightning impulse current (10/350 µs): | 0.5 kA |
| Nominal discharge surge current (8/20): | 10 kA |
| Max. continuous voltage AC: | 9.5 V |
| Max. continuous voltage DC: | 14 V |
| Nominal voltage DC: | 12 V |
| Voltage protection level: | 750 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 1 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 1.5 mm² |
| Exhausting: | yes |
| Signalling at the device: | None |
| Degree of protection (IP): | IP20 |
