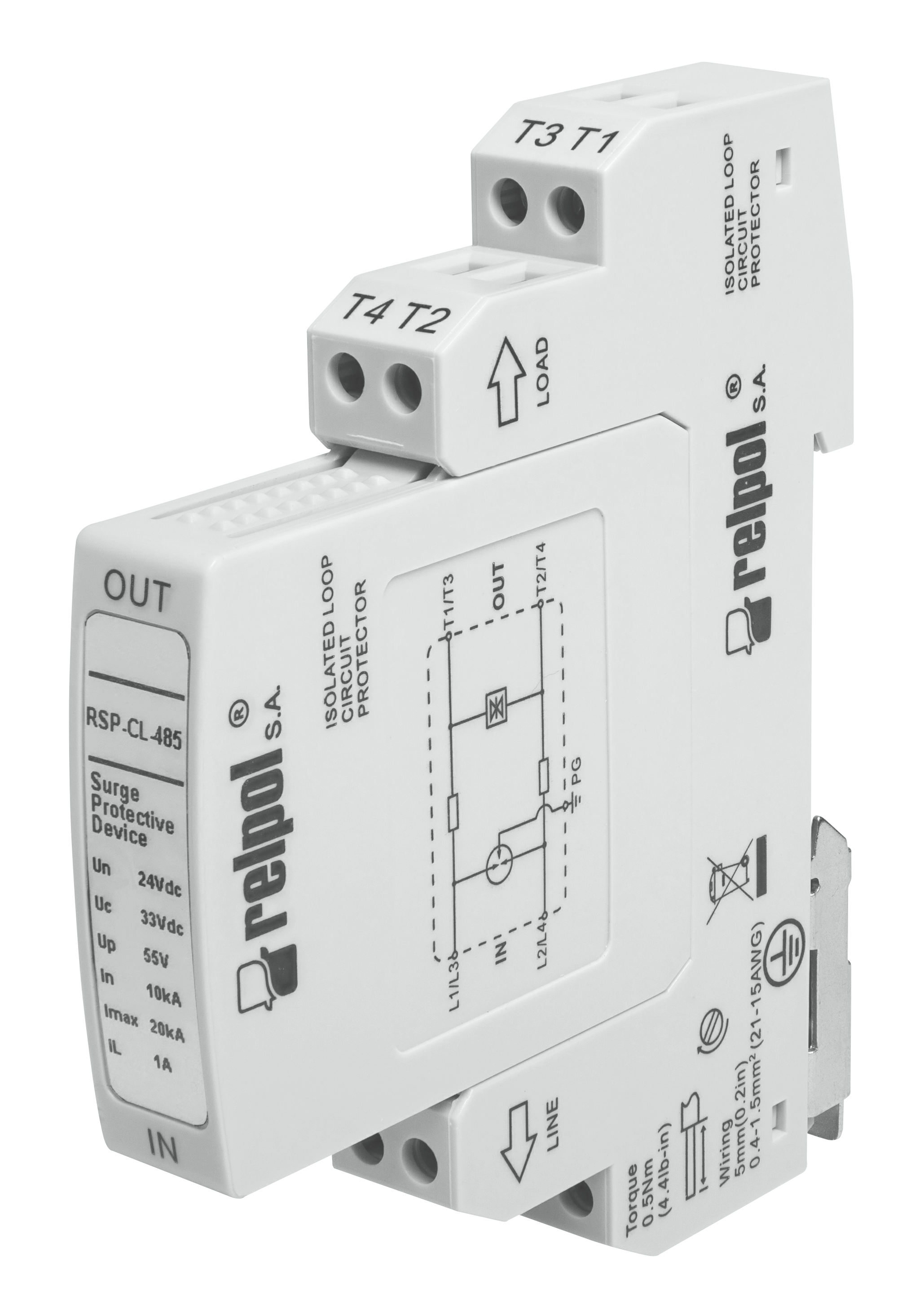

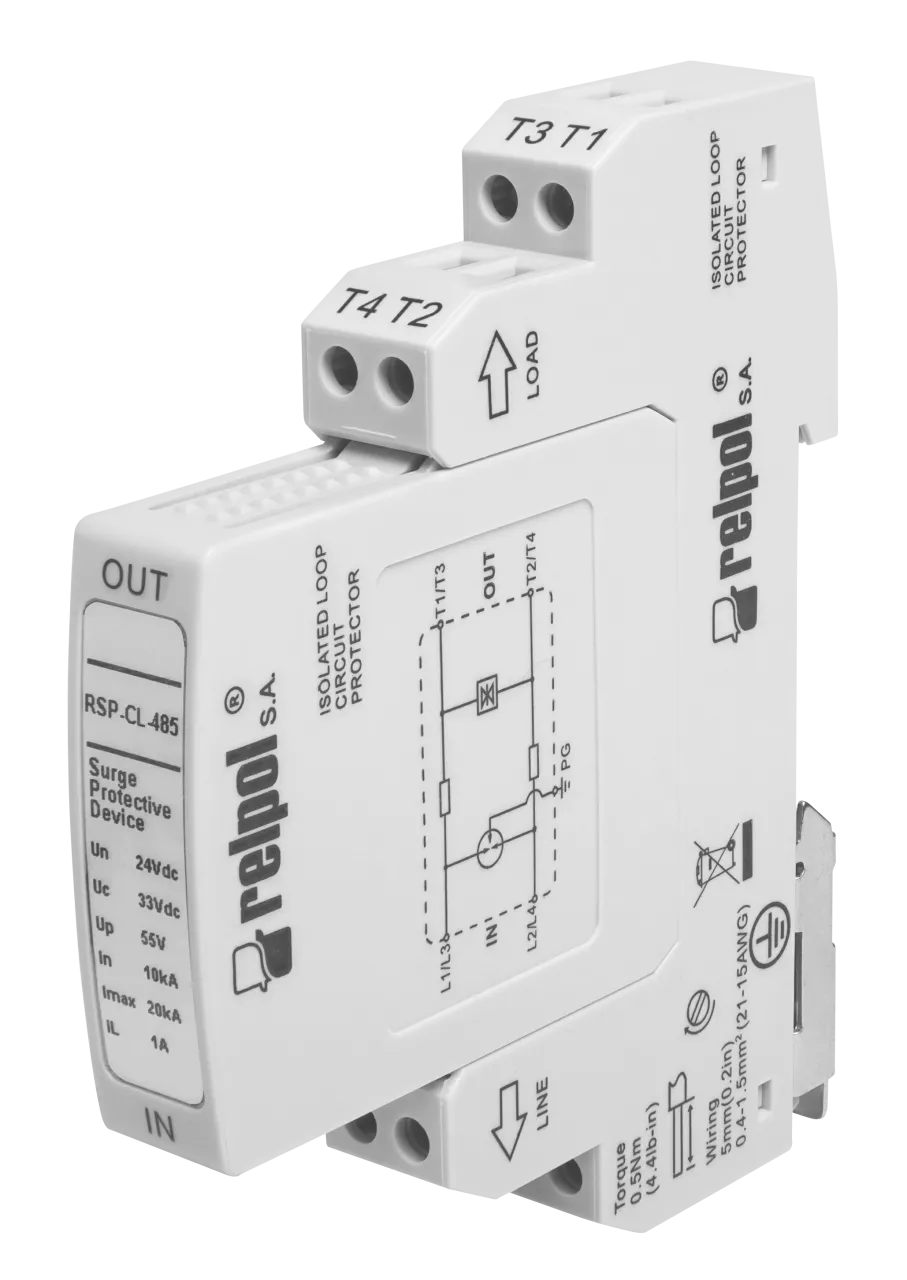

Ogranicznik sygnałowe RSP-CL-485
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2617108 |
| GTIN(EAN) | 5900005294785 |
| Price unit | piece |
| Catalog price | 700,82 zł (569,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ogranicznik przepięć do pętli prądowej 4-20 mA, komunikacji analogowo/cyfrowej, interfejs RS485, RS422 (V11), system magistrali wysokiej częstotliwości i dwuprzewodowy system transmisji wideo
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Lightning current arrester for power supply systems |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Lightning impulse current (10/350 µs): | 2.5 kA |
| Nominal discharge surge current (8/20): | 20 kA |
| Max. continuous voltage AC: | 23.3 V |
| Max. continuous voltage DC: | 33 V |
| Nominal voltage DC: | 24 V |
| Voltage protection level: | 600 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 1 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 1.5 mm² |
| With remote signalling contact: | no |
| Exhausting: | yes |
| Signalling at the device: | None |
| Category type 1: | no |
| Suitable for outdoor use: | yes |
| Degree of protection (IP): | IP20 |
