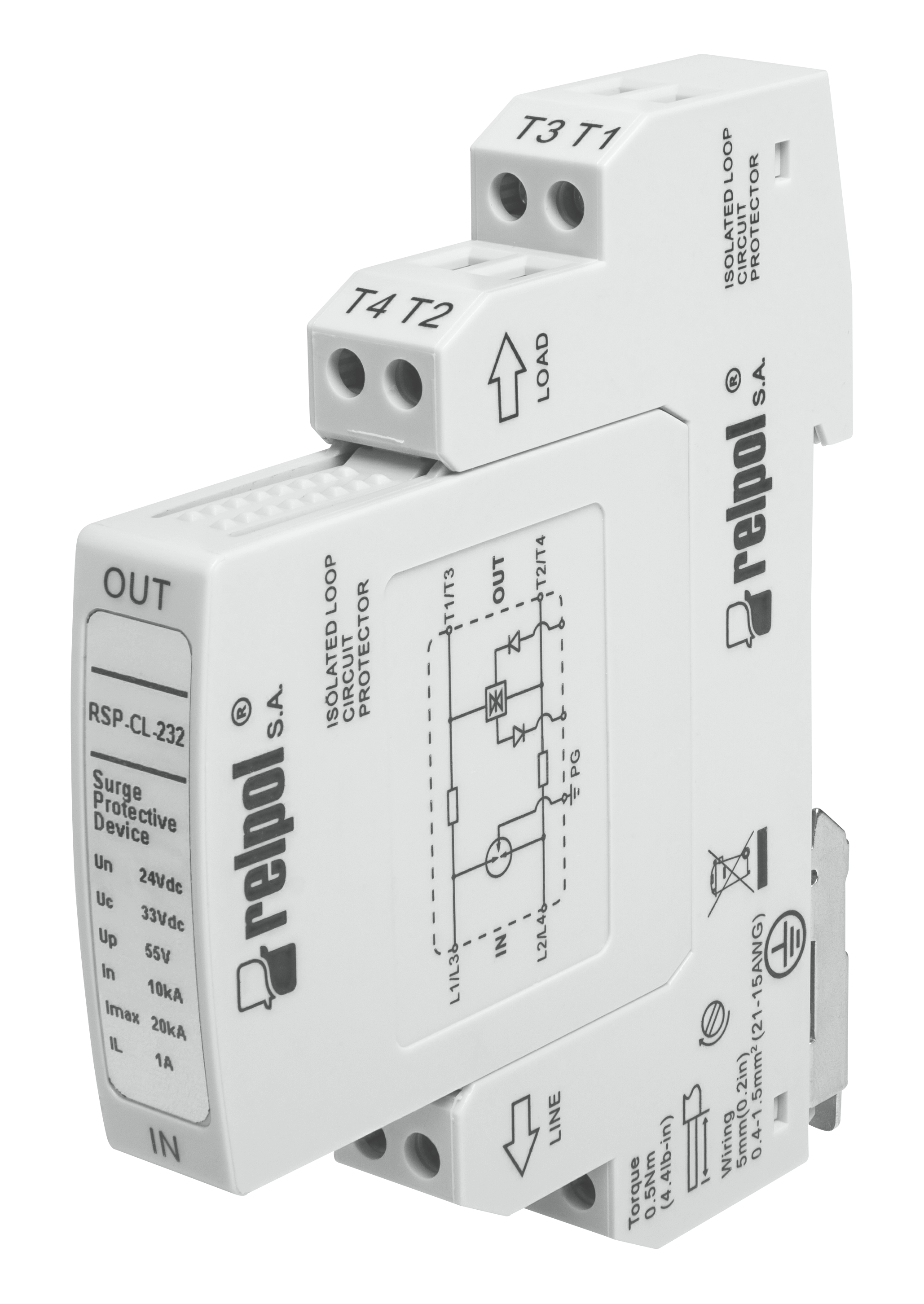

Ogranicznik sygnałowe RSP-CL-232
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 2617107 |
GTIN(EAN) | 5900005294761 |
Price unit | piece |
Catalog price | 700,82 zł (569,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ogranicznik przepięć do sygnałów 0-20mA, 4-20mA pętla pradowa, TTY 4-20mA, TTY, TTL, V24 (RS232C) systemu transmisji wysokiej częstotliwości
Additional features:
Information | Value |
---|---|
ETIM class: | Lightning current arrester for power supply systems |
System configuration DC: | yes |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | no |
System configuration TN-C-S: | no |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | no |
Lightning impulse current (10/350 µs): | 2.5 kA |
Nominal discharge surge current (8/20): | 20 kA |
Max. continuous voltage AC: | 23.3 V |
Max. continuous voltage DC: | 33 V |
Nominal voltage DC: | 24 V |
Voltage protection level: | 48 kV |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 1 modular spacing |
Max. conductor cross section solid (solid, stranded): | 1.5 mm² |
With remote signalling contact: | no |
Exhausting: | yes |
Signalling at the device: | None |
Category type 1: | no |
Degree of protection (IP): | IP20 |
