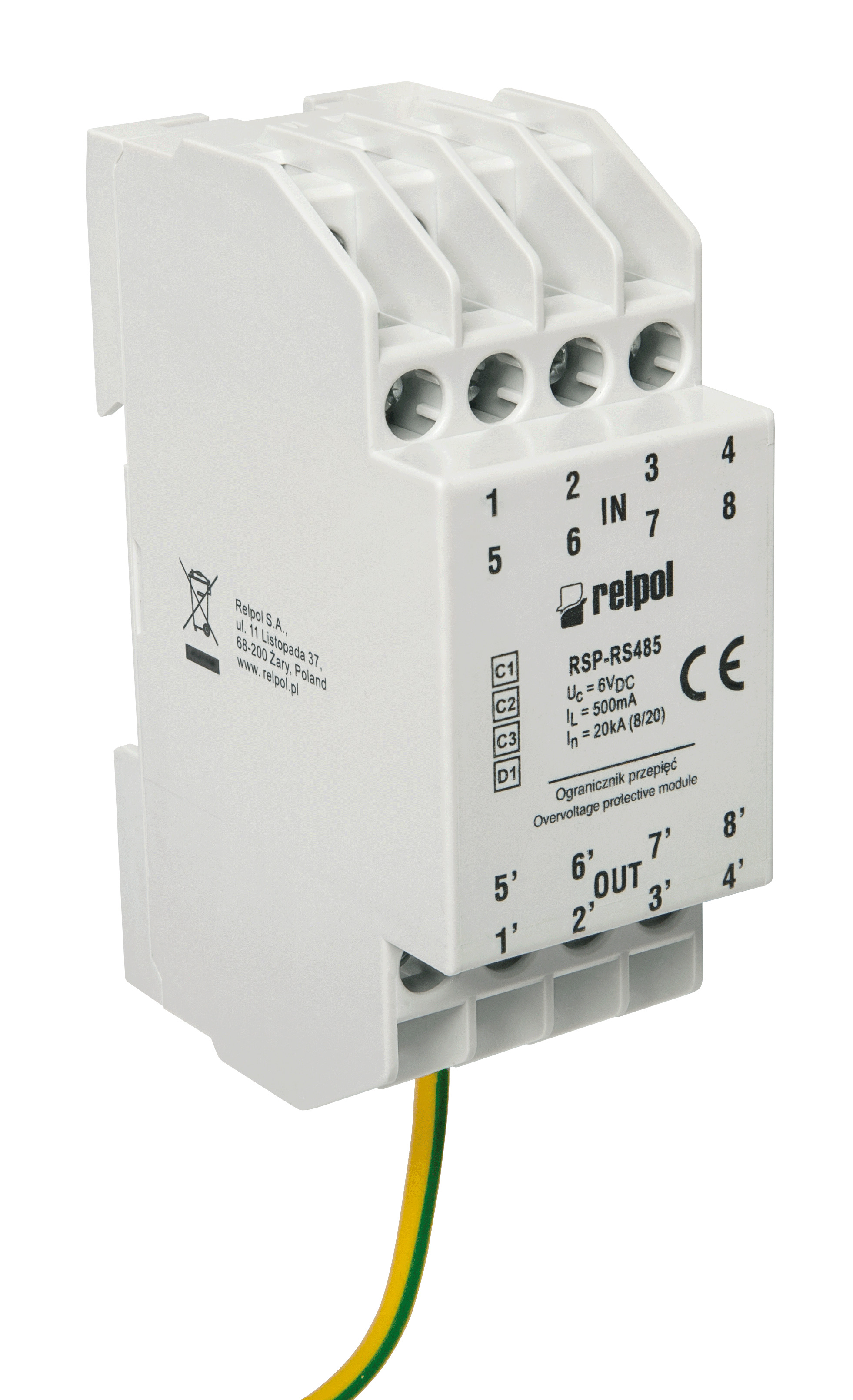

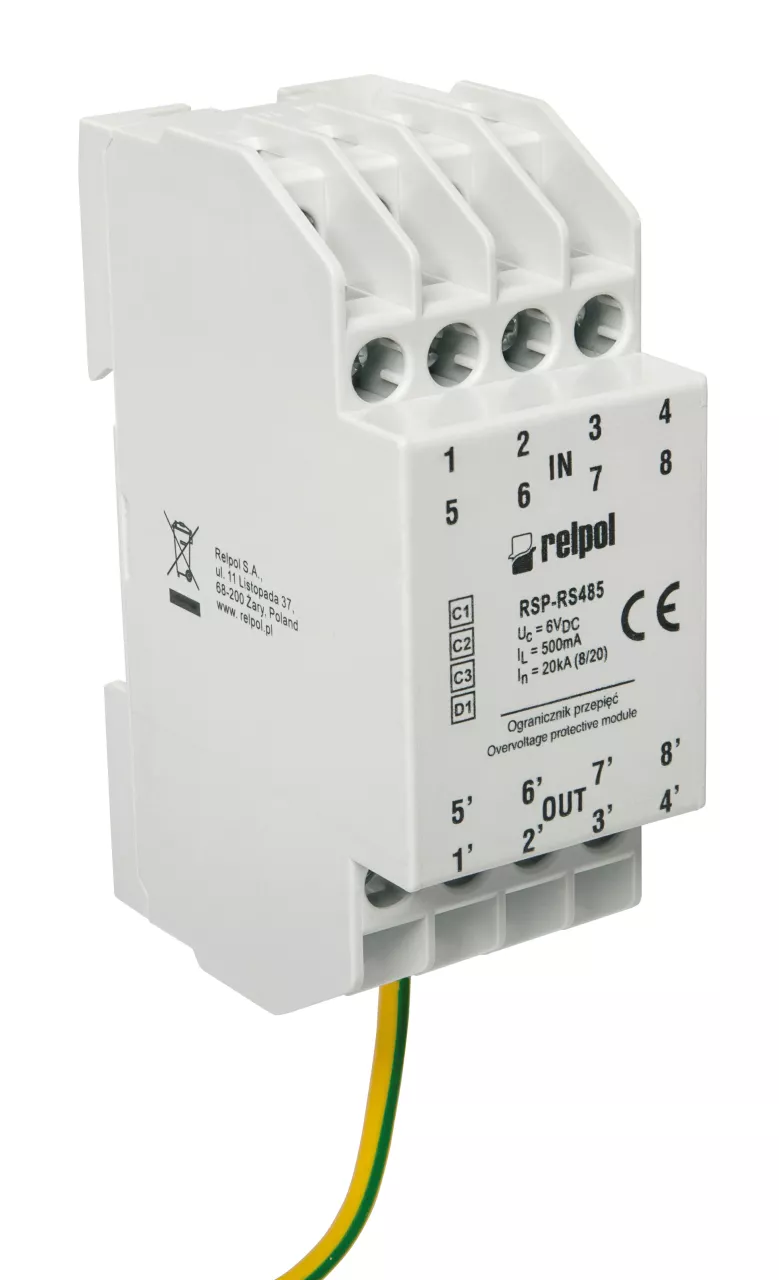

Ogranicznik przepięć RSP-RS485
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 2616592 |
GTIN(EAN) | 5900005287916 |
Price unit | piece |
Catalog price | 1 278,66 zł (1 039,56 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ogranicznik przepięć do linii sygnałowych RS 485 oraz V11
Additional features:
Information | Value |
---|---|
ETIM class: | Lightning current arrester for data networks/MCR-technology |
Nominal voltage DC: | 5 V |
Max. continuous voltage DC: | 6 V |
Lightning impulse current (10/350 µs): | 2.5 kA |
Nominal discharge surge current (8/20): | 5 kA |
Nominal load current: | 0.5 A |
Limiting frequency: | 1 MHz |
Signalling at the device: | None |
Mounting method: | DIN rail (top hat rail) 35 mm |
Pro-active thermo-control: | no |
With remote signalling contact: | no |
Explosion-tested version: | no |
