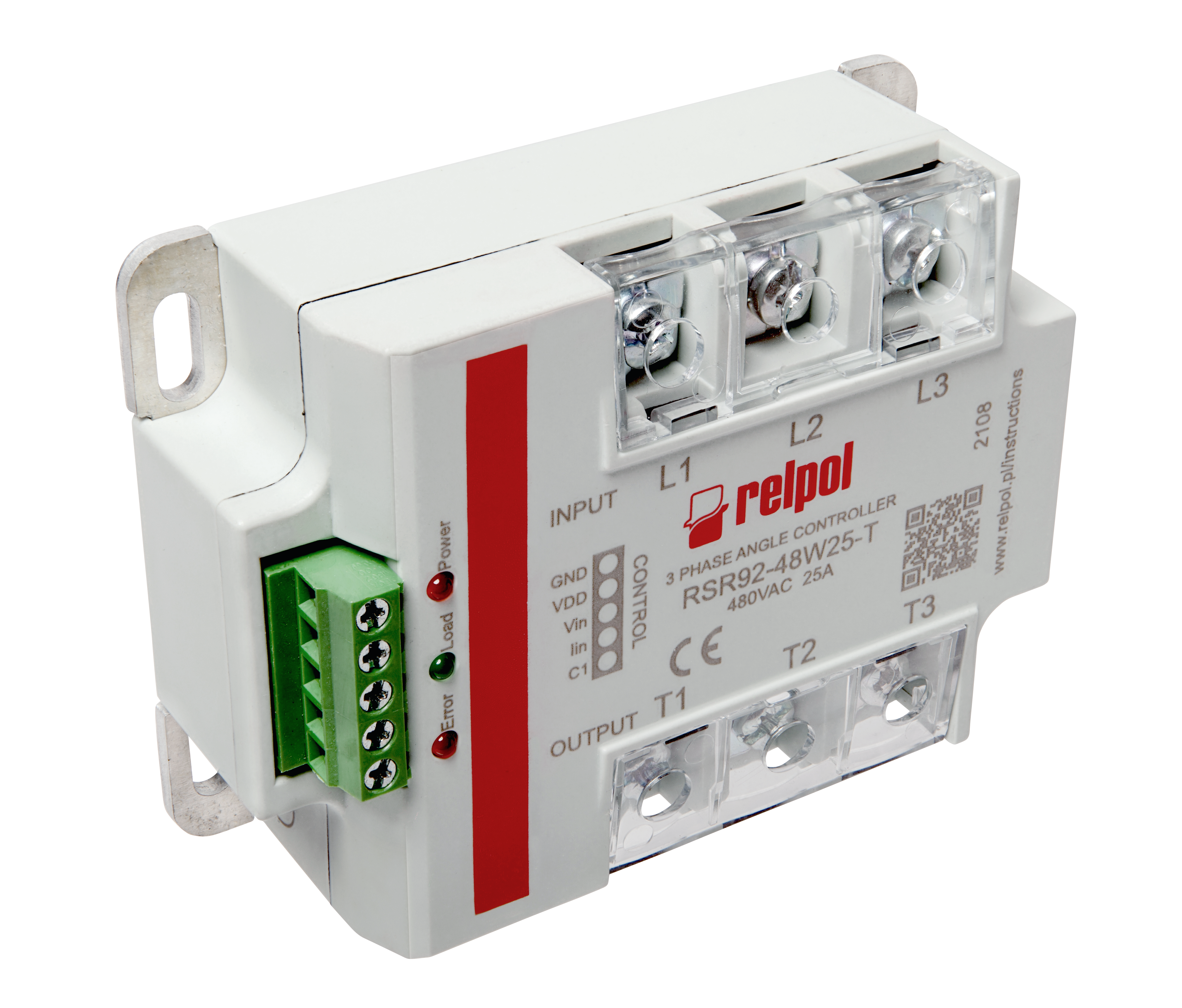

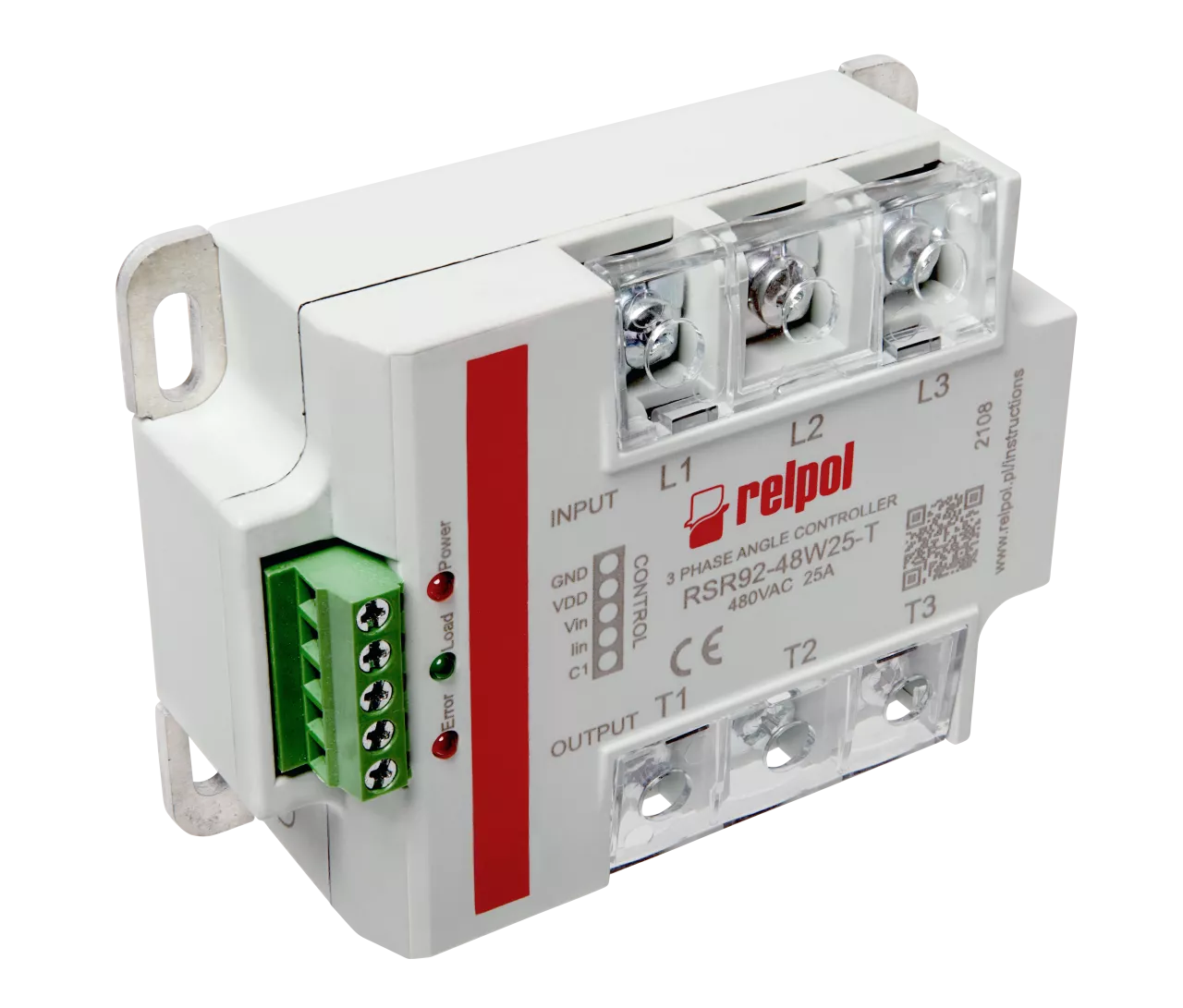

Przekaźnik półprzewodnikowy RSR92-48W60-T
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2616373 |
| GTIN(EAN) | 5900005284090 |
| Price unit | piece |
| Catalog price | 1 771,18 zł (1 439,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Jednofazowy sterownik mocy AC serii RSR92, wyjście sterujące: sterowanie kątem fazowym, sygnał sterujący 0-10V 4-20mA, prąd obciążenia 25A, napięcie obciążenia:
Additional features:
| Information | Value |
|---|---|
| Net weight: | 560 g |
| ETIM class: | Solid state relay |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 0 - 10 V |
| Voltage type for actuating: | DC |
| Number of phases: | 3 |
| Rated operation current Ie at AC-1: | 60 A |
| Type of electric connection: | Screw connection |
| Complete with socket: | no |
| With detachable clamps: | no |
| Modular version: | yes |
| With LED indication: | yes |
| Voltage type (operating voltage): | DC |
| Degree of protection (IP): | IP20 |
| Width: | 105 mm |
| Height: | 38 mm |
| Depth: | 38 mm |
