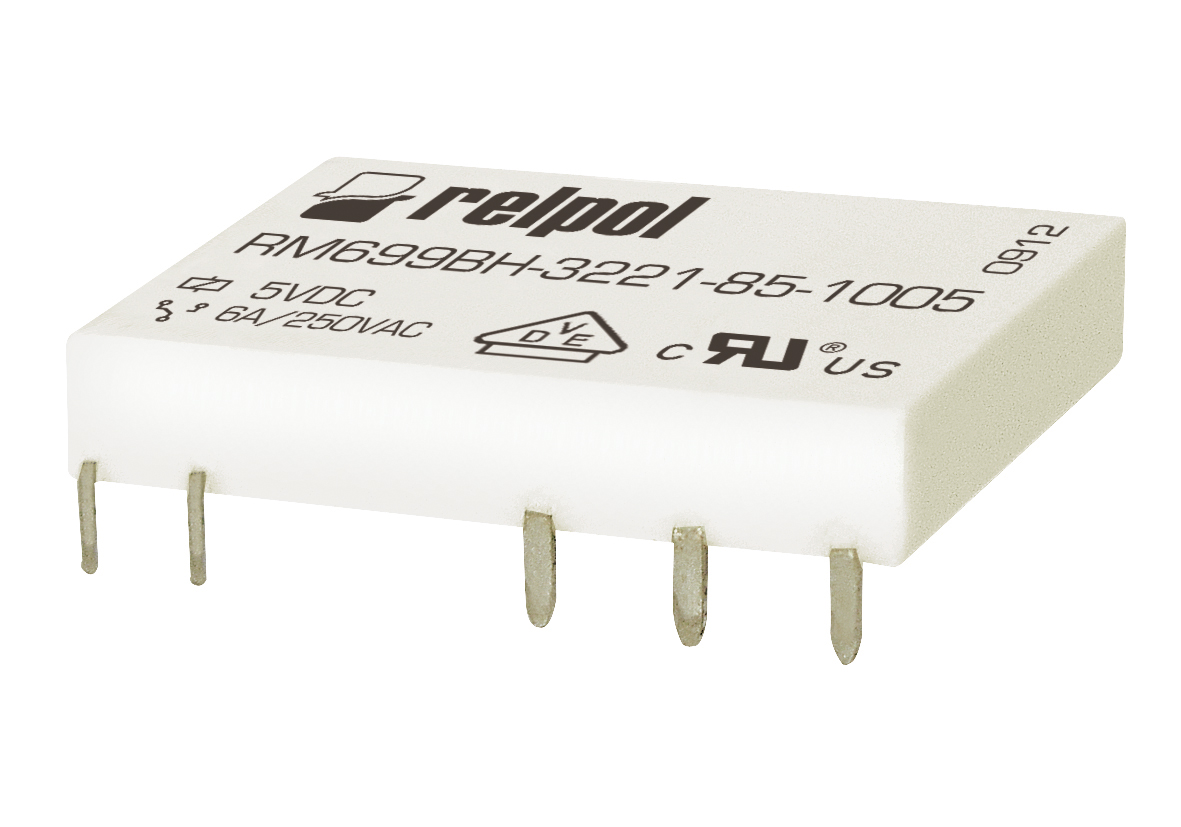

Przekaźnik miniaturowy RM699BH-3221-85-1005
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2615464 |
| Price unit | piece |
| Catalog price | 52,16 zł (42,41 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, wersja pozioma, do obwodu drukowanego. Wysokość 5 mm. Wyjście: 1Z - jeden zestyk zwierny, styki złocone - wyprowadzenia: 11-14; AC1 - 50 mA / 30 V; DC1 - 50 mA / 36 V. Wejście / cewka - wyprowadzenia: A1 - A2, napięcie zasilania Un - 5 V DC. Wymiary: 15 x 28 x 5 mm. Bezpośredni montaż na druku - PCB. IP 64. Materiał styków: AgSnO2/Au жесткое золочение. Uwaga: Dla styków złoconych po przekroczeniu podanych maksymalnych wartości prądów i napięć warstwa złota ulega zniszczeniu. Znikają wtedy zalety złocenia i obowiązują wartości minimalnych prądów i napięć jak dla syków bez złocenia.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 6 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| With detachable clamps: | no |
| Nominal current: | 6 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 5 - 5 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Gold |
| Degree of protection (IP): | IP64 |
| Width: | 5 mm |
| Height: | 15 mm |
| Depth: | 28 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:04 |
| Files to download: |
